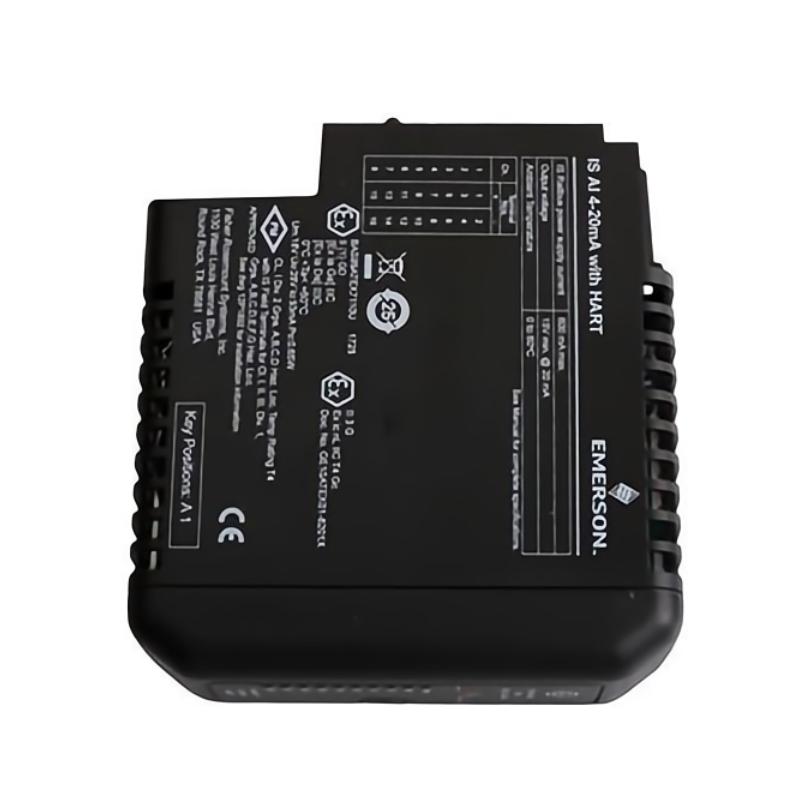

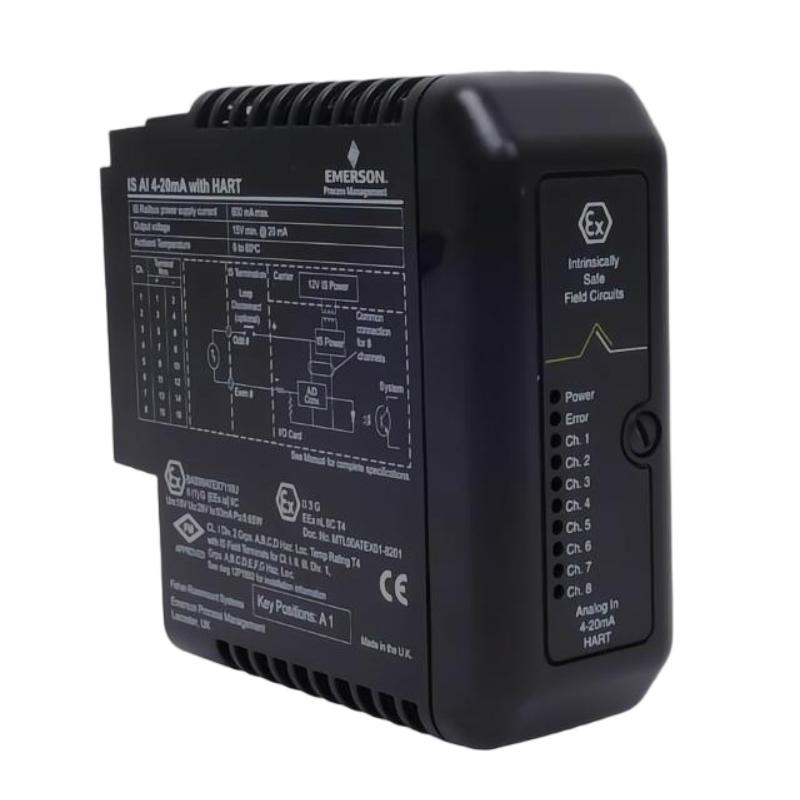

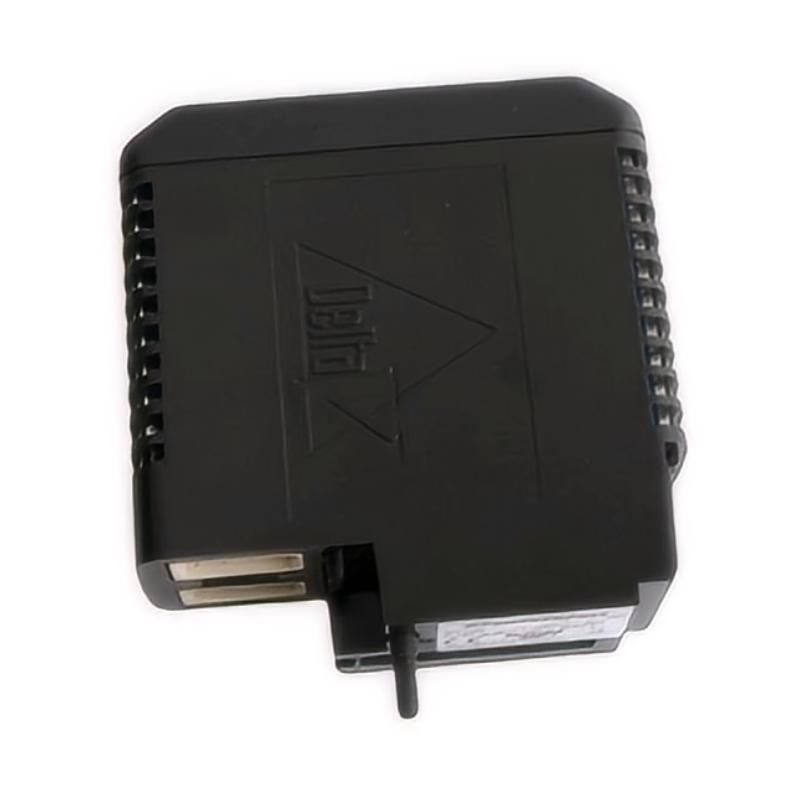

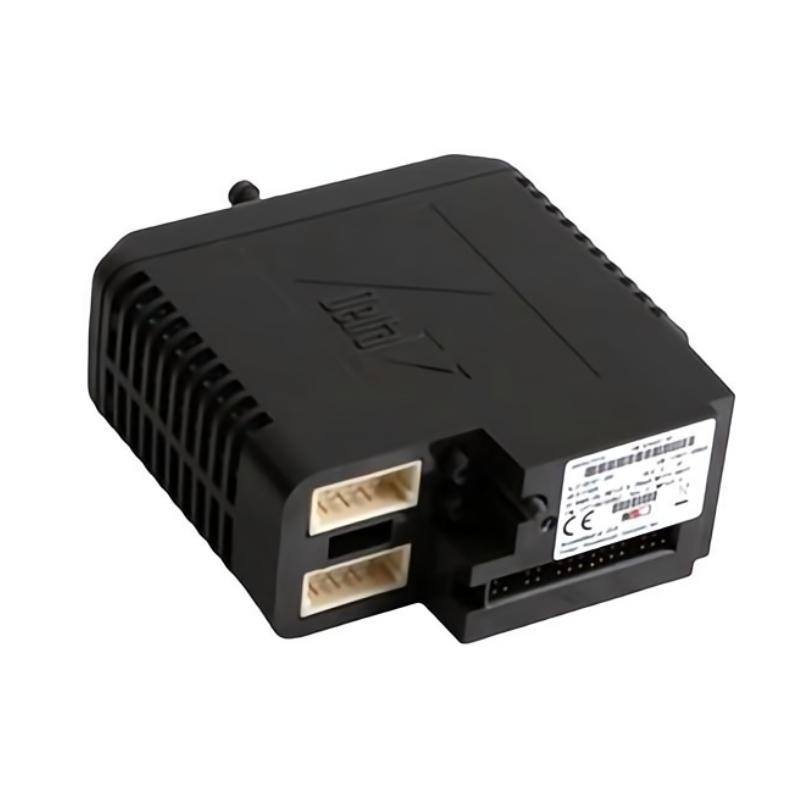

Emerson KJ3102X032 12P1863X032 DeltaV Analog Input Module

Overview

The Emerson KJ3102X032 12P1863X032 is a high-precision DeltaV analog input module designed for industrial automation systems. It allows accurate acquisition of analog signals from field devices, enabling seamless integration with Emerson control units for reliable process monitoring and control.

General Information

Part Number: KJ3102X032 12P1863X032

Manufacturer: Emerson

Brand / Country of Origin: Emerson / USA

Series: DeltaV / Analog Input Module

Type: Analog Input Module for Process Control

Mounting: Rack or panel-mounted inside industrial control cabinets

Technology: High-resolution analog signal acquisition with modular connectivity

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via backplane connection

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, module status, and fault monitoring

Communication & Interface

Interface Ports: Supports Emerson I/O modules and fieldbus networks

Data Transfer: High-speed communication between analog input module and controllers

Diagnostics: Onboard monitoring, fault detection, and link supervision

Operator Interface: LED indicators for power, communication, and errors

Reset Features: Hardware and software reset supported

I/O & Channels: Multi-channel analog input support

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: Industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 44 × 102 × 108 mm

Weight: 0.22 kg

In Stock – Ready for Immediate Shipment!
