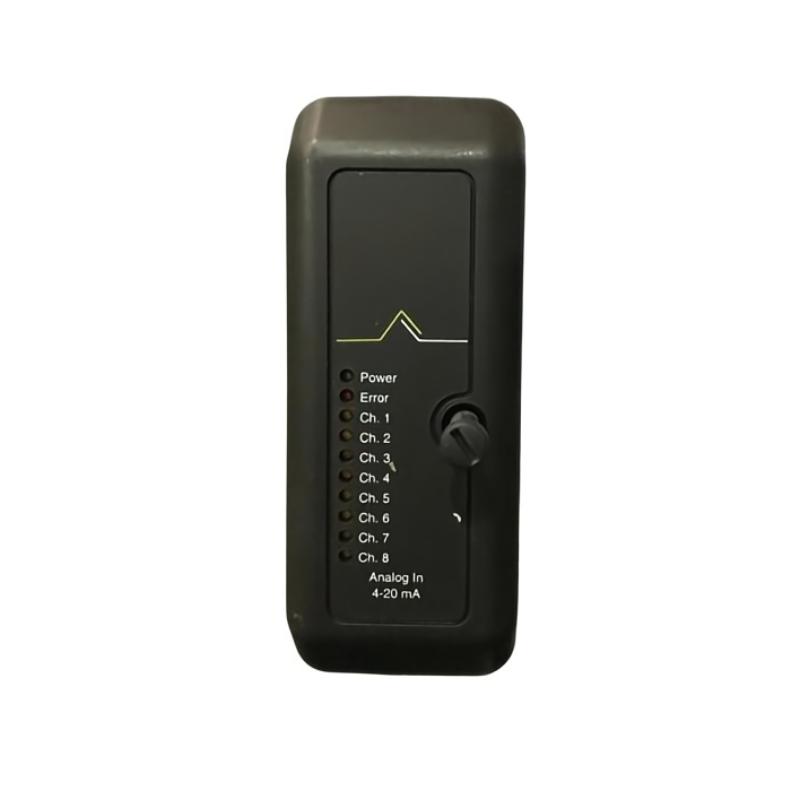

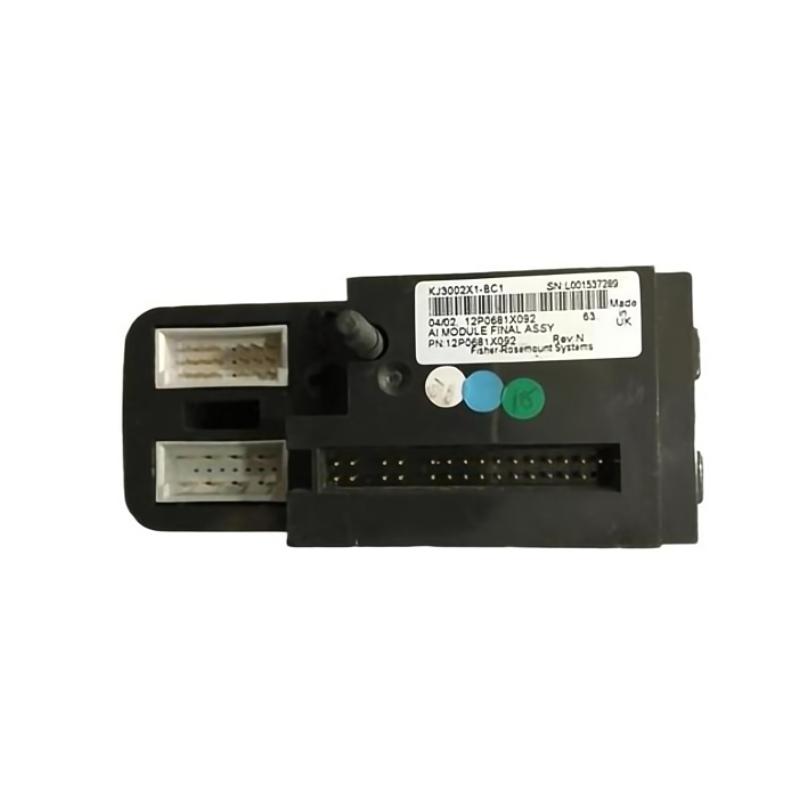

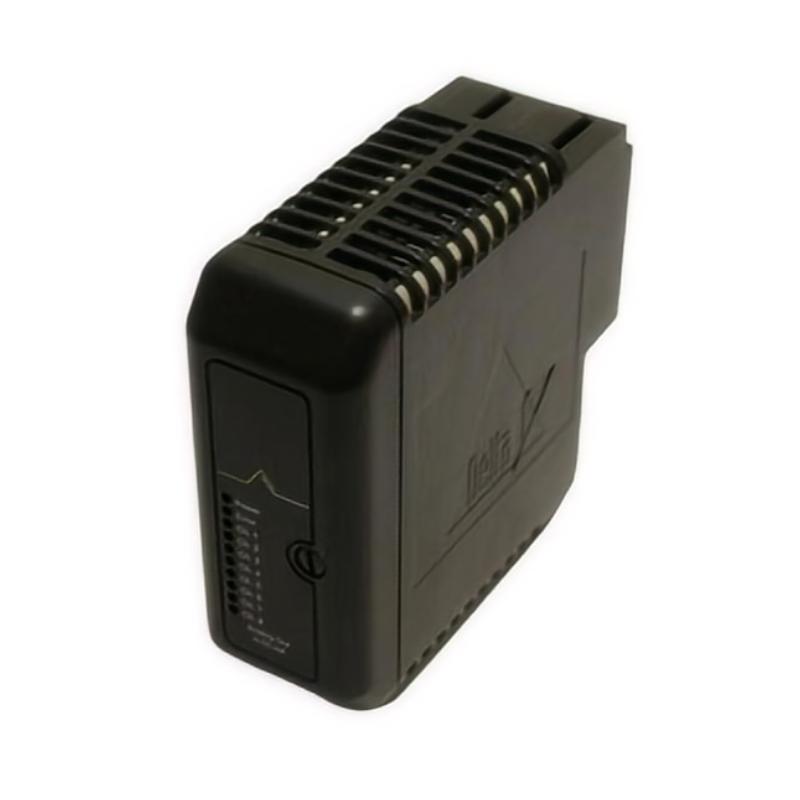

Emerson KJ3002X1-BC1 DeltaV Analog Input Module

Overview

The Emerson KJ3002X1-BC1 is an analog input module for the DeltaV control system. It captures precise signals from field devices such as transmitters and sensors, providing accurate monitoring and control of industrial processes.

General Information

Part Number: KJ3002X1-BC1

Manufacturer / Brand: Emerson

Country of Origin: USA

Series: DeltaV I/O Modules

Type: Analog Input Module

Mounting: DIN rail or panel installation within control chassis

Technology: Industrial analog input module with integrated diagnostics and signal conditioning

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via backplane or dedicated module power supply

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for channel status, fault, and communication

Communication & Interface

Bus Interface: DeltaV backplane

Input Channels: Analog inputs for field sensors

Diagnostics: Channel monitoring, fault detection, and status reporting

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Vibration & Shock: Meets IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 107 × 41 × 105 mm

Weight: ~ 0.181 kg
