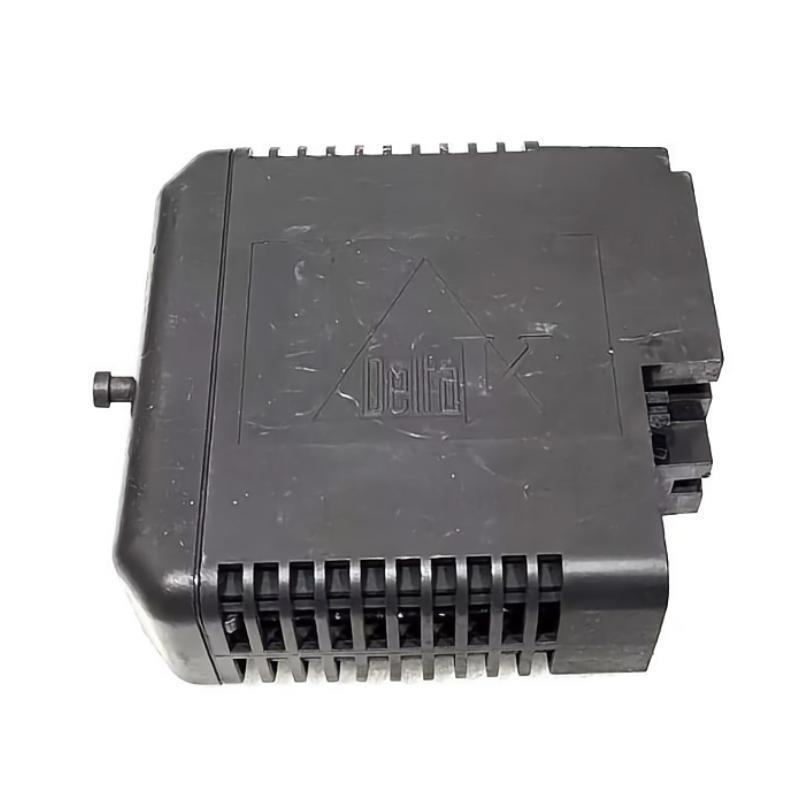

Emerson KJ3203X1-BA1 Numeric Input Module

Overview

The Emerson KJ3203X1-BA1 is a numeric input module for the DeltaV control system. It enables reliable acquisition of numeric signals from field devices, supporting accurate data collection and process control in industrial applications.

General Information

Part Number: KJ3203X1-BA1

Manufacturer / Brand: Emerson

Country of Origin: USA

Series: DeltaV I/O Modules

Type: Numeric Input Module

Mounting: DIN rail or panel installation within control chassis

Technology: Industrial numeric input module with integrated diagnostics and signal validation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Powered via backplane or dedicated module power supply

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for channel status, fault, and communication

Communication & Interface

Bus Interface: DeltaV backplane

Input Channels: Numeric inputs for field devices

Diagnostics: Channel monitoring, fault detection, and status reporting

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Vibration & Shock: Meets IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 120 × 45 × 130 mm

Weight: ~ 0.132 kg
