Overview

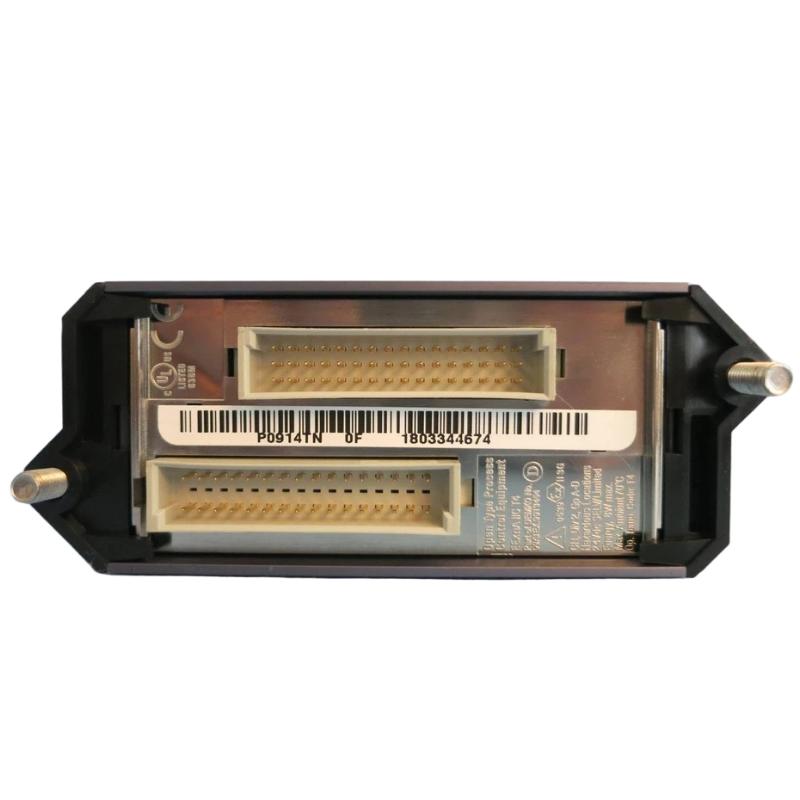

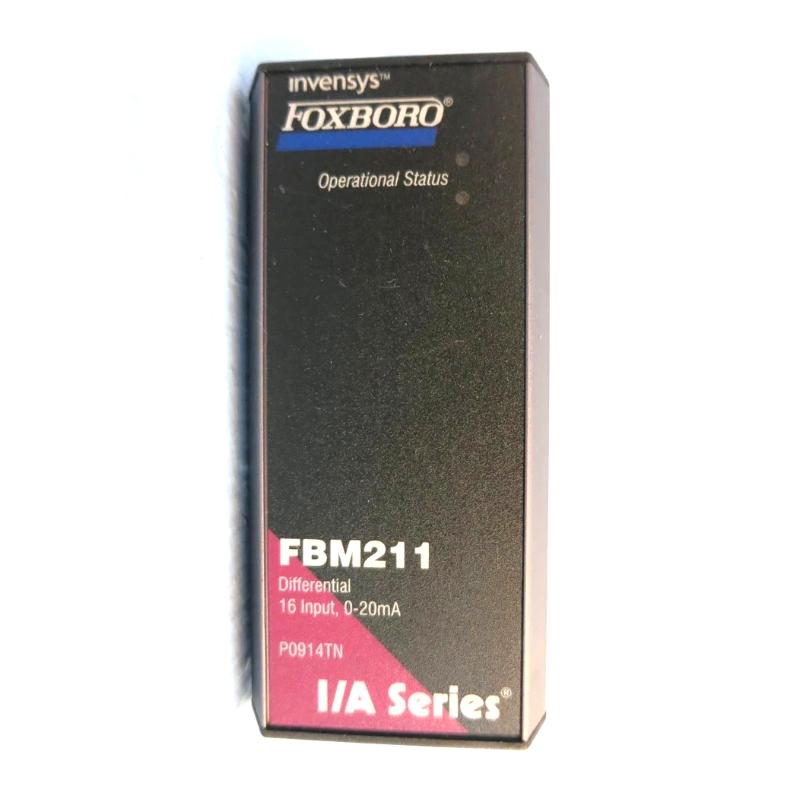

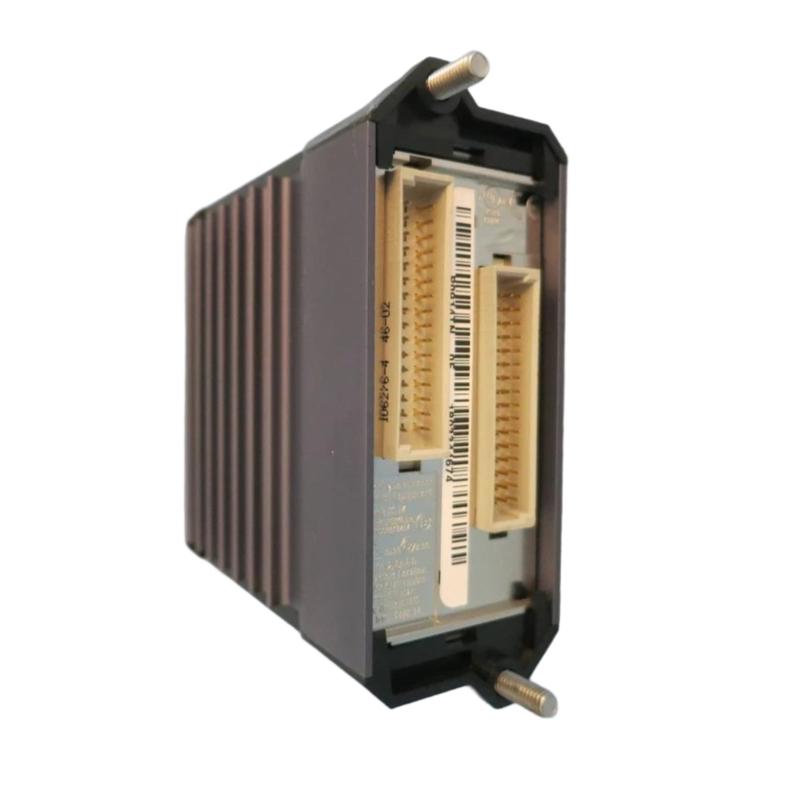

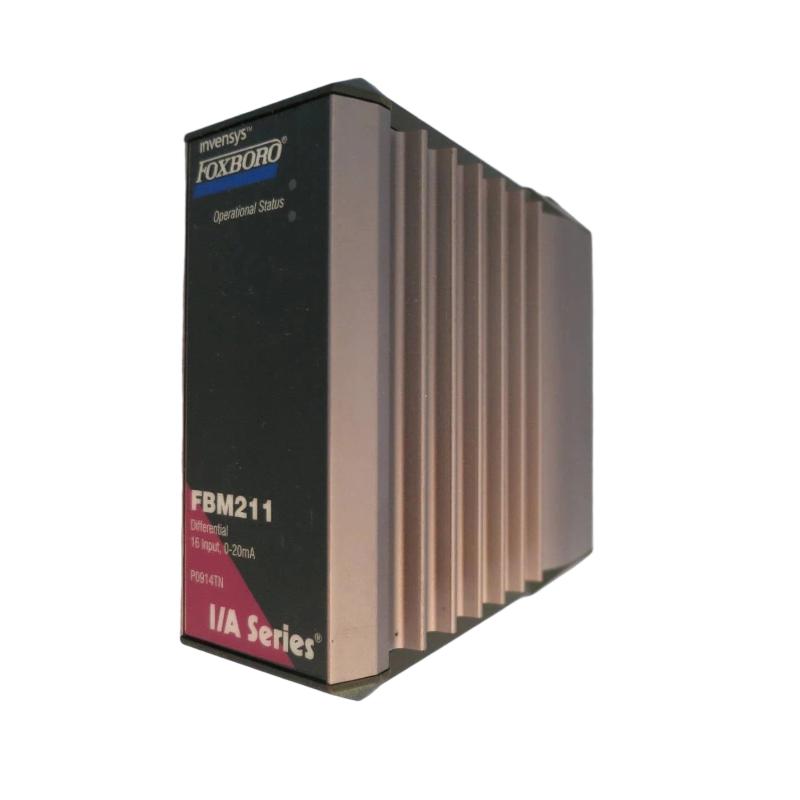

The Foxboro P0914TN is an analog input interface module used in Foxboro I/A Series control systems. It provides stable, isolated, and high-accuracy signal acquisition from various analog field transmitters, ensuring reliable data transmission to the control processor for real-time monitoring and control.
General Information
Part Number: P0914TN
Manufacturer: Foxboro (Schneider Electric)
Series: FBM / 200 Series
Type: Analog Input Interface Module
Mounting: Installs on standard Foxboro I/O baseplate
Technology: Isolated analog acquisition with embedded diagnostics
Power Specifications
Supply Voltage: 24 V DC (supplied from system backplane)
Power Consumption: ≤ 8 W
Power Source: Backplane-powered
Protection: Input isolation, surge protection, over-voltage and fault protection
Indicators: LEDs for module health, communication, and fault status
Communication & Interface
Input Type: Standard analog signals (typically 4–20 mA or voltage inputs depending on configuration)
Channels: Multi-channel analog input capability
Signal Conditioning: Filtering, scaling, isolation
Diagnostics: Open-circuit detection, abnormal signal monitoring, module self-check
Configuration: Performed through Foxboro system configuration tools
Reset Options: Supports software reset via the control system
I/O & Channels
Input Type: Analog (current/voltage depending on version)
Number of Channels: Typically 8 or more depending on module variant
Output to Controller: Digitized analog values
External Load Support: Not applicable (signal interface only)
Environmental
Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for protected industrial control cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 130 × 32 × 120 mm
Weight: ~ 0.25 kg
