Overview

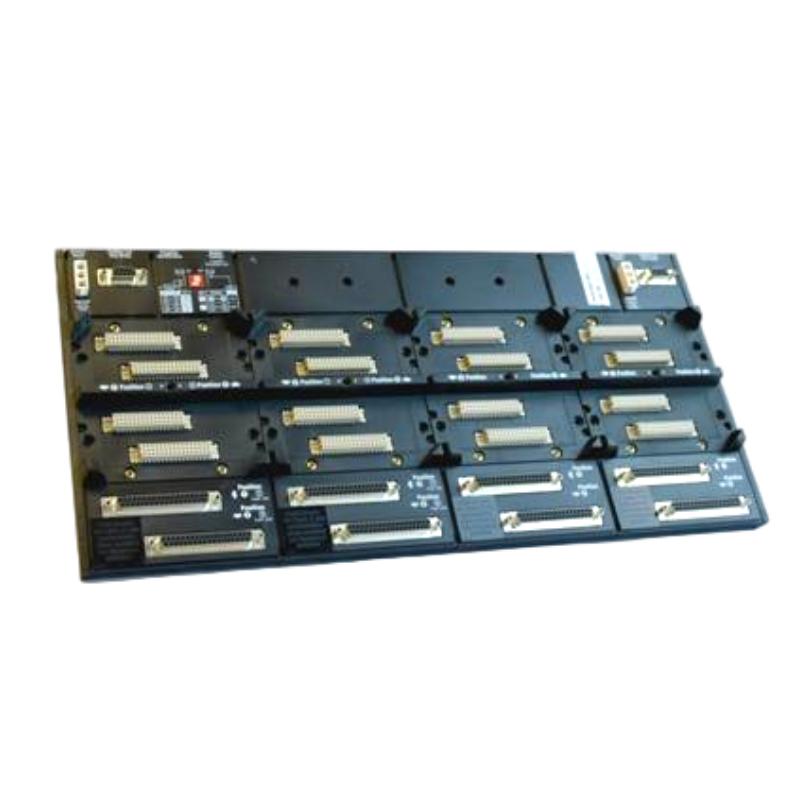

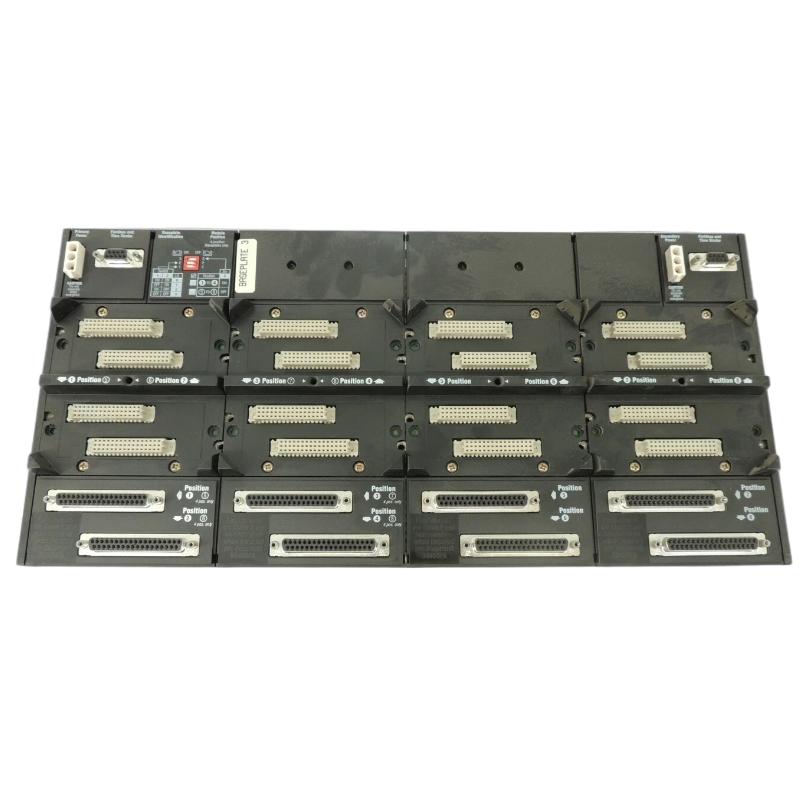

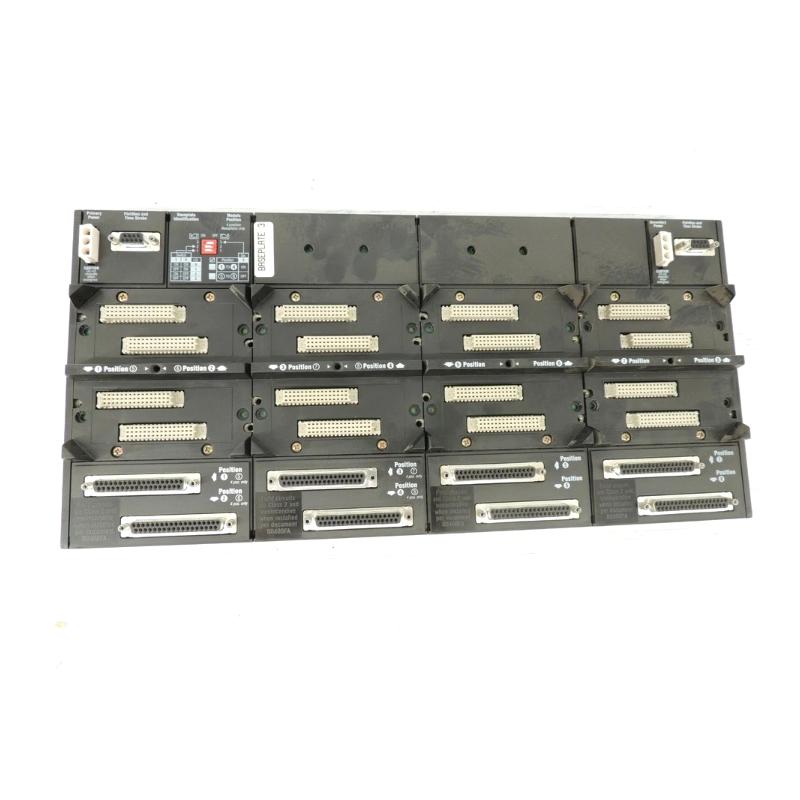

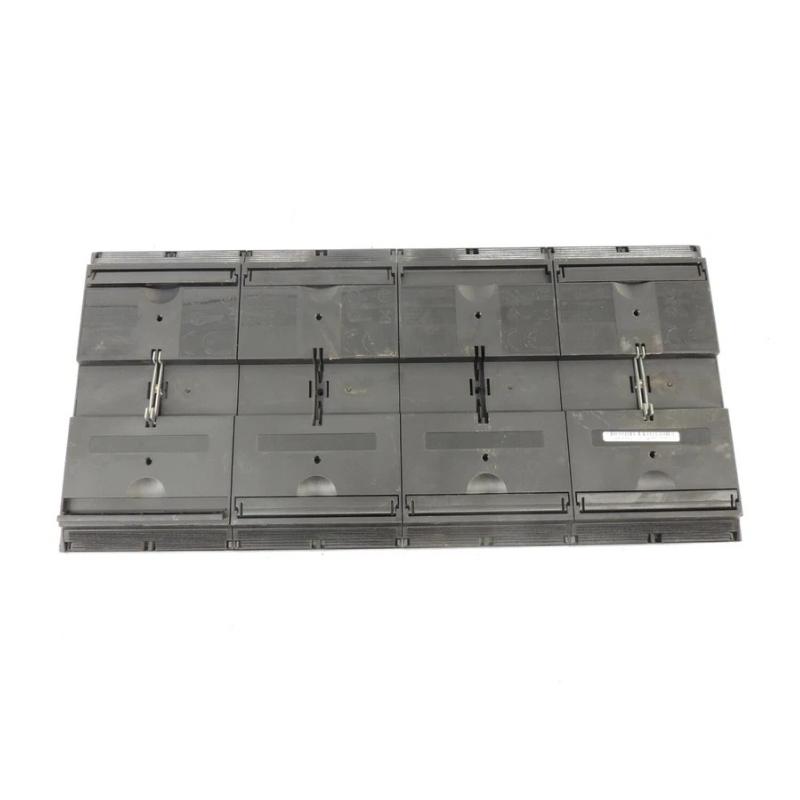

The Foxboro P0926JM is an 8-position modular baseplate designed for use with Foxboro I/A Series and FBM Series modules. It serves as the mechanical and electrical mounting platform, providing power distribution, signal routing, and communication backplane connections for up to eight I/O modules in a single assembly.
General Information
Part Number: P0926JM
Manufacturer: Foxboro (Schneider Electric)
Series: FBM / 200 Series
Type: 8-Position Modular Baseplate
Mounting: Panel-mounted or cabinet-mounted
Technology: Integrated backplane for power, communication, and module interfacing
Power Specifications
Backplane Power Distribution: 24 V DC supplied from system power conditioners
Supported Load: Up to 8 I/O modules
Protection: Over-current protection, grounding provision, surge tolerance
Connectivity: Power and communication routed internally through backplane traces
Communication & Interface
Backplane Interface: Provides communication bus for connected I/O modules
Supported Modules: Compatible with analog, discrete, communication, and specialty FBM modules
Signal Routing: Internal wiring eliminates external jumpers
Diagnostics: Baseplate supports module-level diagnostics via system controller
I/O & Module Capacity
Module Slots: 8 individual module positions
Supported Module Types: Input modules, output modules, interface modules, communication modules
Connection Method: Plug-in module attachment with locking hardware
Environmental
Operating Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial cabinets or control enclosures
Dimensions & Weight
Dimensions (L × W × H): 350 × 115 × 40 mm
Weight: 1.41 kg
