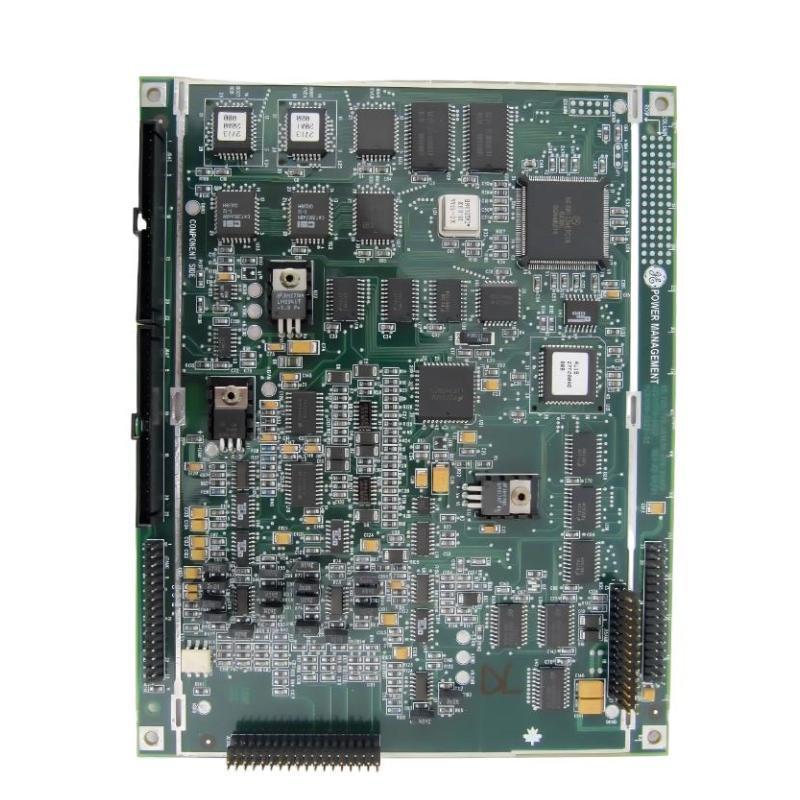

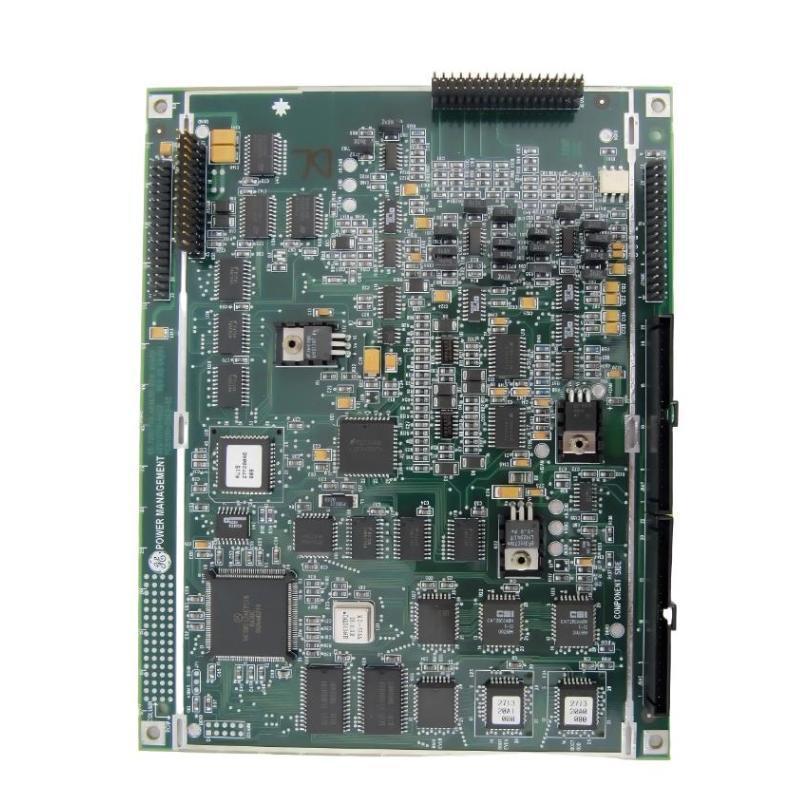

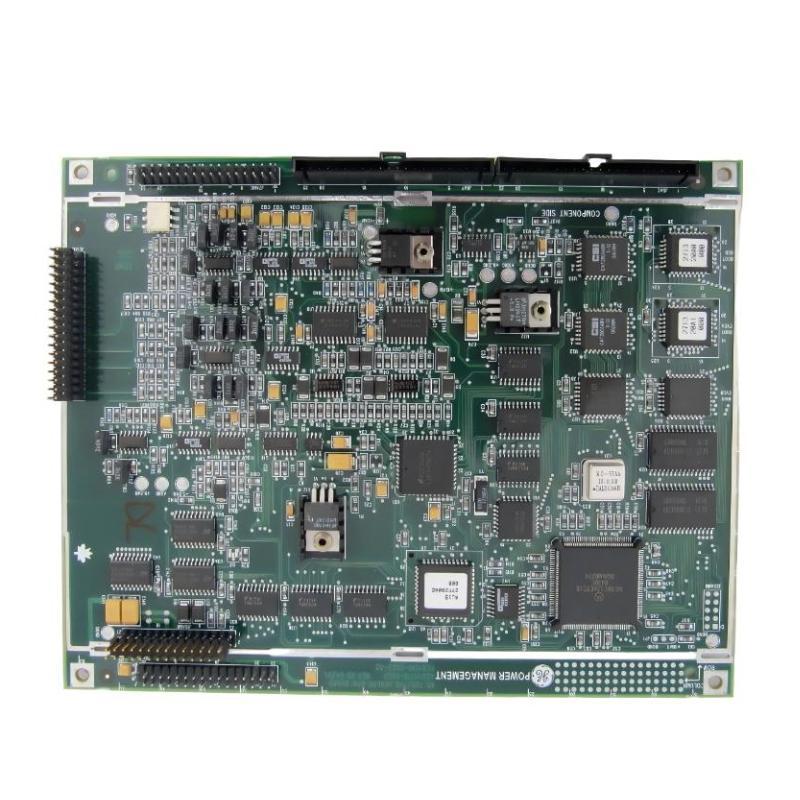

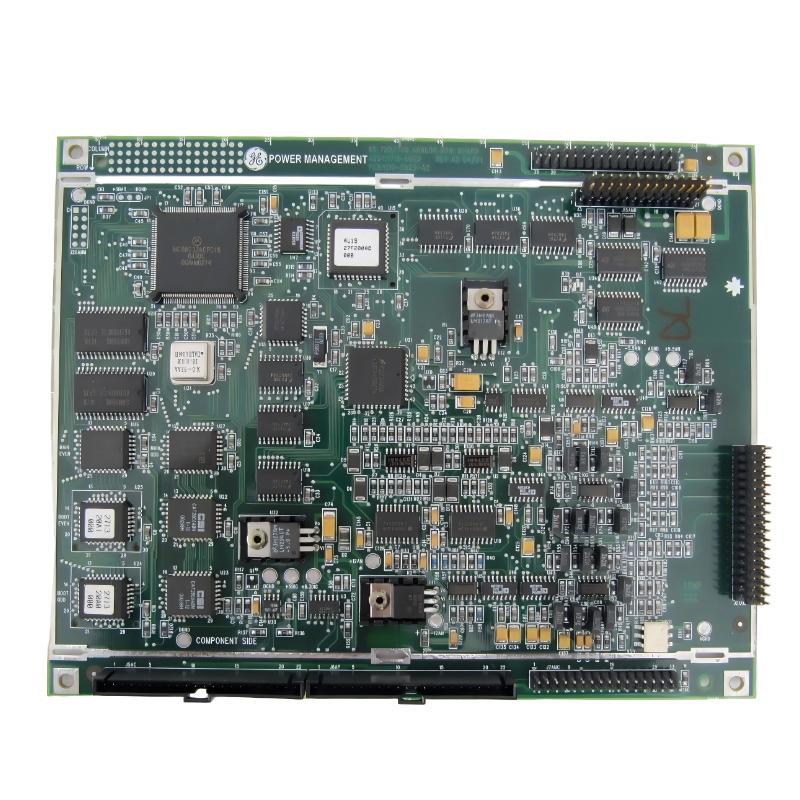

GE 1719-0023 Simulated Motherboard

Overview

The GE 1719-0023 is a simulated motherboard designed for use in industrial control and automation systems. It provides a stable platform for system testing, signal simulation, and hardware integration within compatible GE equipment environments.

The module supports reliable operation during development, maintenance, and diagnostic activities, helping engineers verify system functions and improve troubleshooting efficiency.

General Information

Part Number: 1719-0023

Manufacturer: GE

Brand: GE

Country of Origin: United States

Series: Industrial Control Module

Type: Simulated Motherboard

Application: Industrial automation, system testing, maintenance, and control equipment support

Mounting: Rack or chassis installation

Design: Compact electronic assembly for simulation and system interface applications

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power electronic operation

Function: Simulates motherboard functions for system testing and diagnostics

Circuit Protection: Integrated electronic protection design

Signal Processing: Supports internal control and simulation functions

Indicators: System status monitoring through connected equipment

Communication & Interface

System Interface: Compatible industrial control backplane connection

Communication Method: Internal system data exchange

Signal Interface: Board-level connection interface

Diagnostics: Supports system testing and troubleshooting functions

Integration: Designed for use within GE industrial control architectures

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and equipment racks

Environmental Resistance: Designed for reliable operation in standard industrial environments

Dimensions & Weight

Dimensions (L × W × H): 200 × 150 × 40 mm

Weight: 0.9 kg
