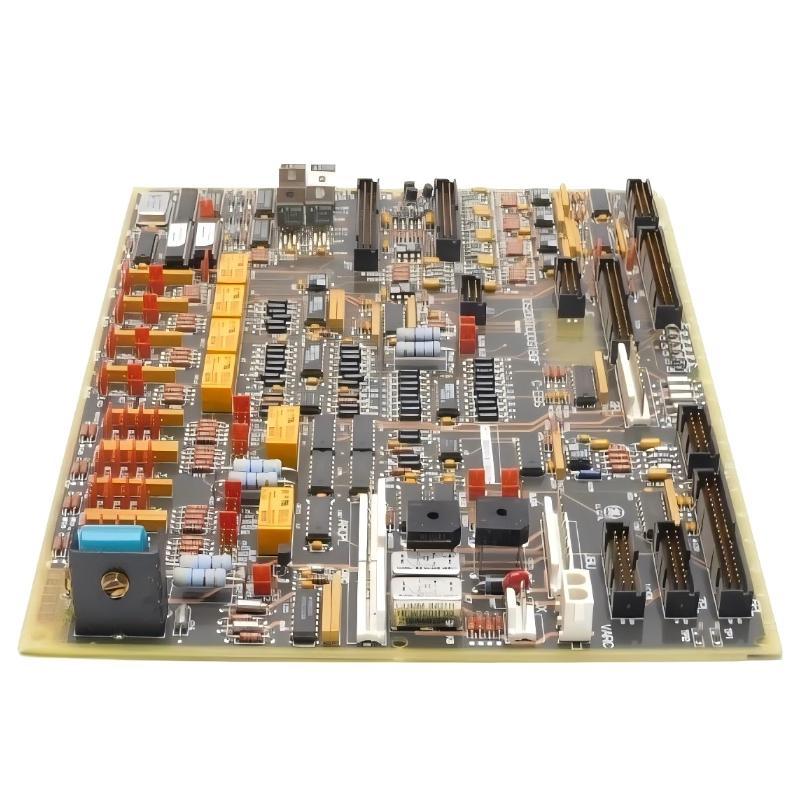

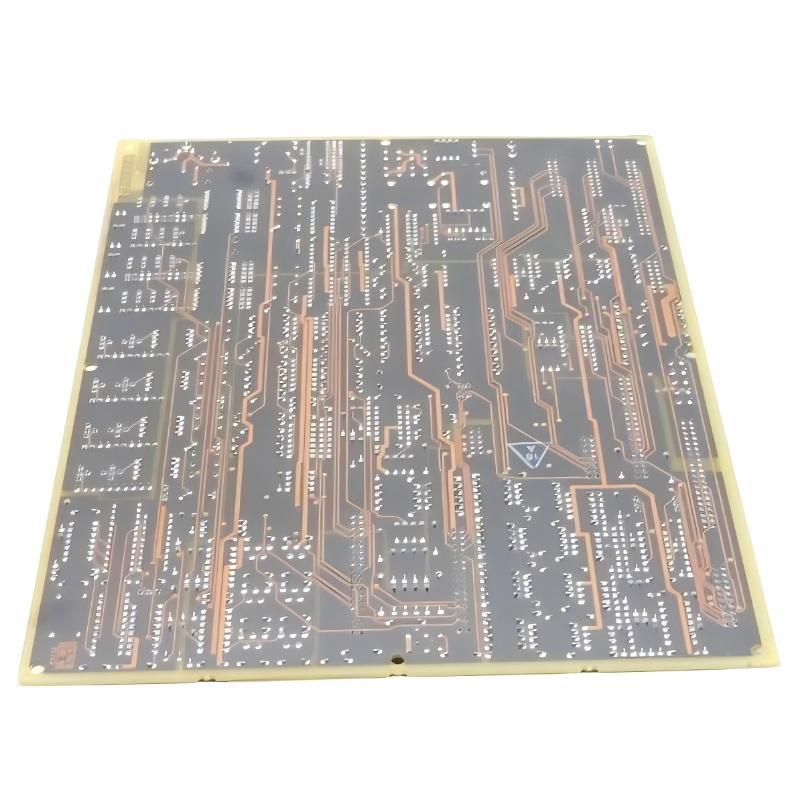

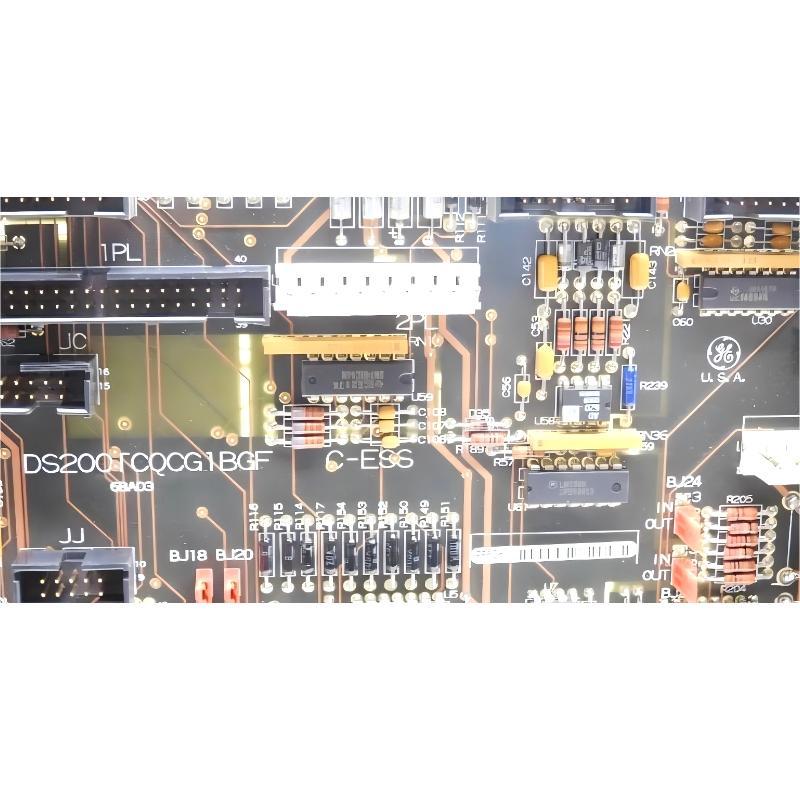

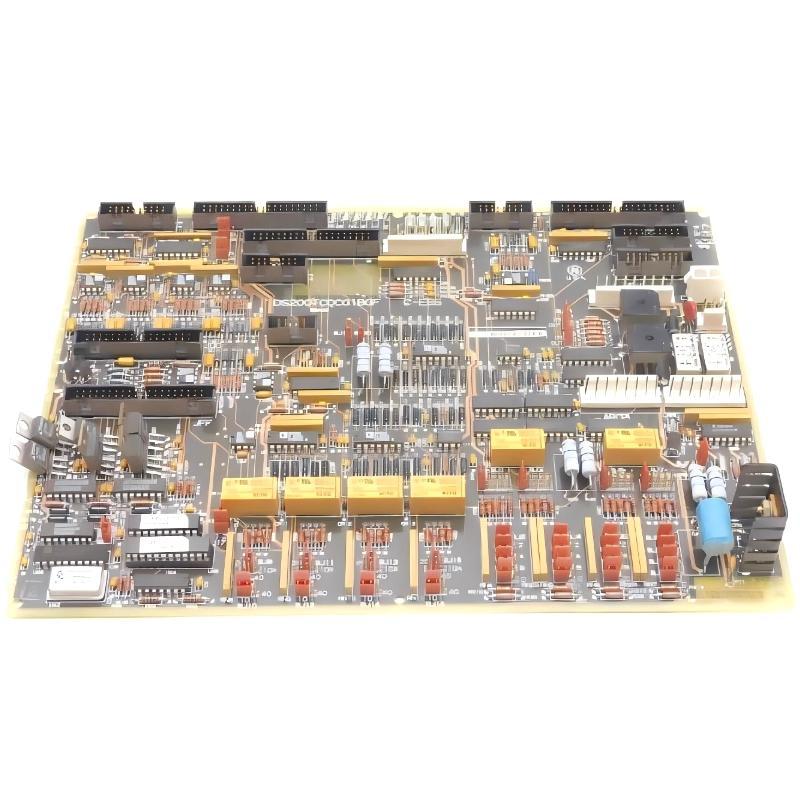

GE DS200TCQCG1BGF Mark V RST Overflow Plate

Overview

The GE DS200TCQCG1BGF is a Mark V RST Overflow Plate designed for GE turbine control systems. It is used within the RST control and signal interface arrangement to support reliable signal routing and system integration. The component is suitable for industrial turbine control and automation applications.

General Information

Part Number: DS200TCQCG1BGF

Manufacturer: GE General Electric

Series: Mark V

Product Type: RST Overflow Plate

Board Type: Control and Signal Interface Plate

Application: Turbine control and industrial automation systems

Function: RST signal interface and overflow connection

Installation: Compatible Mark V control cabinet or rack

Brand / Country of Origin: GE / USA

Power Specifications

Power Supply: Supplied through the connected Mark V control system

Operating Voltage: System-dependent

Power Consumption: Low, primarily used for signal interface functions

Signal Type: RST control and monitoring signals

Protection: Designed for reliable operation within industrial control equipment

Power Interface: Through compatible system wiring and connections

Communication & Interface

RST Interface: Supports signal connections associated with the RST control section

Signal Routing: Provides organized signal paths within the control system

System Integration: Designed for use with compatible Mark V control hardware

Overflow Function: Supports additional signal connection requirements

Field Interface: Connects with associated control system wiring

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Installation Environment: Industrial control cabinet

Humidity: Suitable for standard industrial control environments

Application Environment: Designed for continuous turbine control and automation applications

Dimensions & Weight

Dimensions (L × W × H): 330 × 280 × 50 mm

Weight: 0.254 kg
