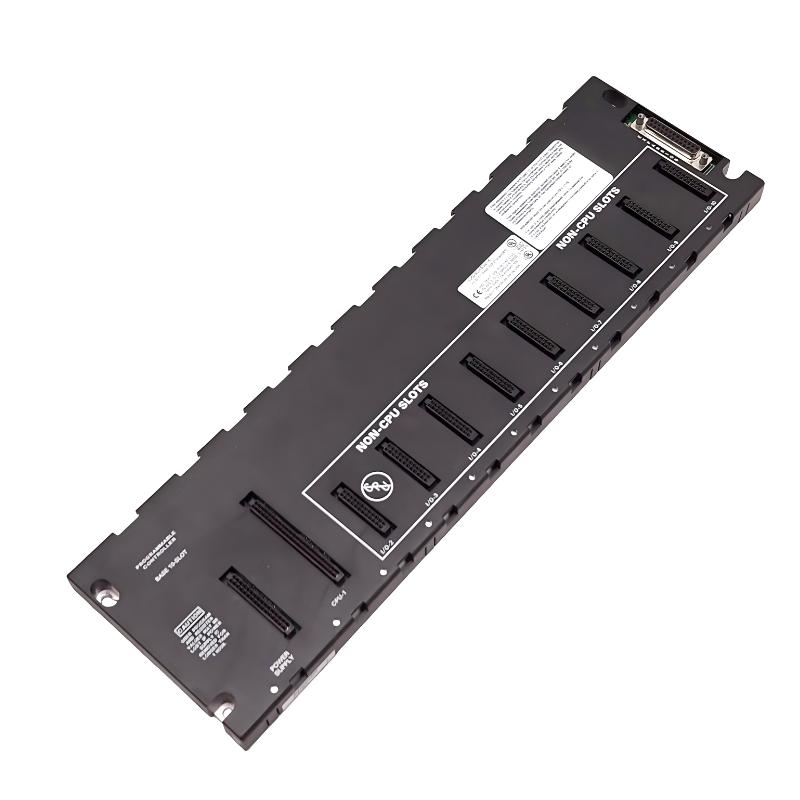

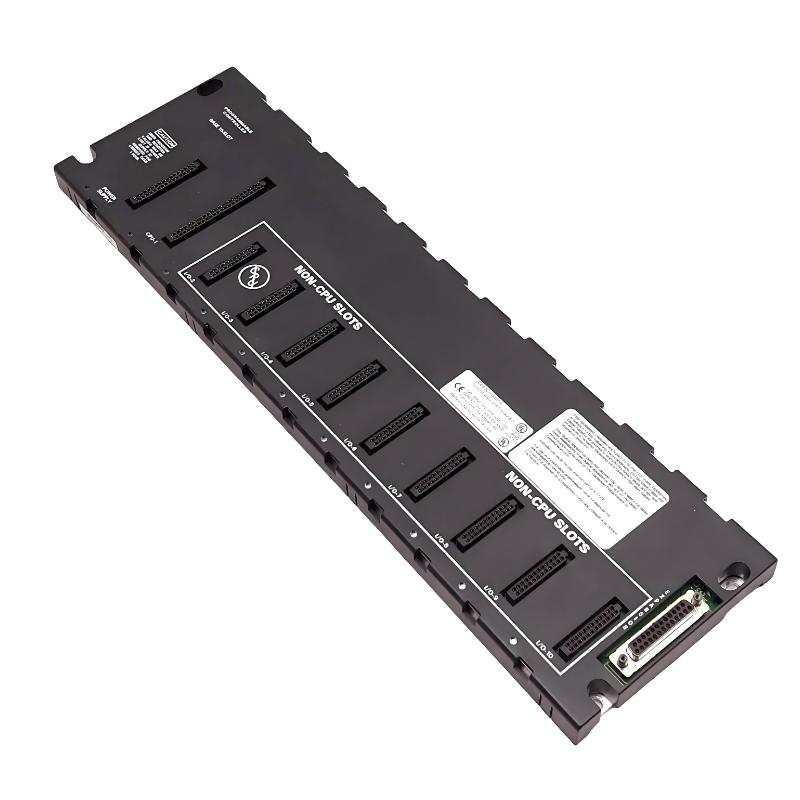

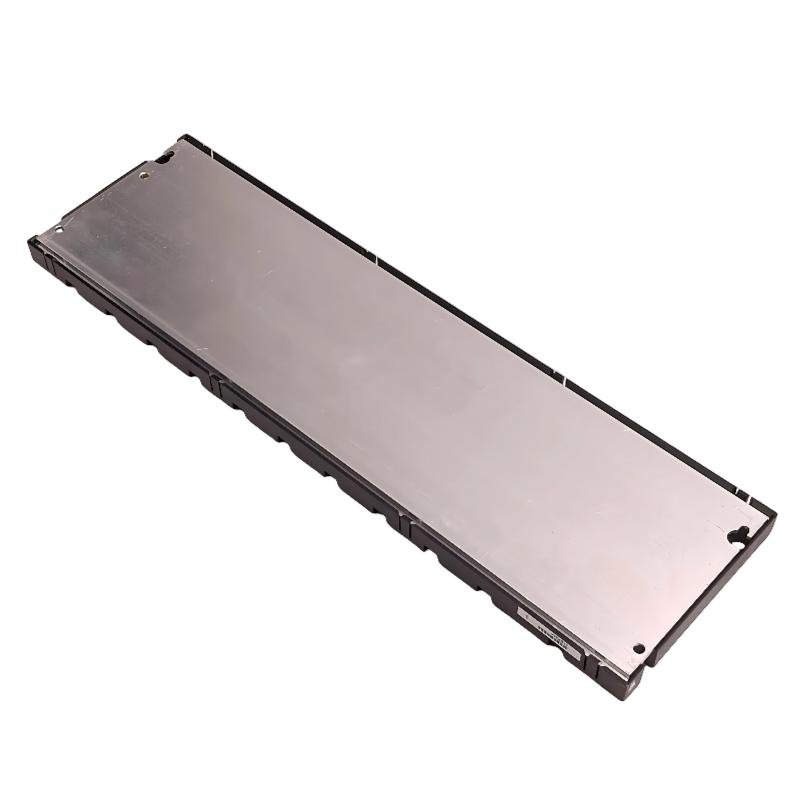

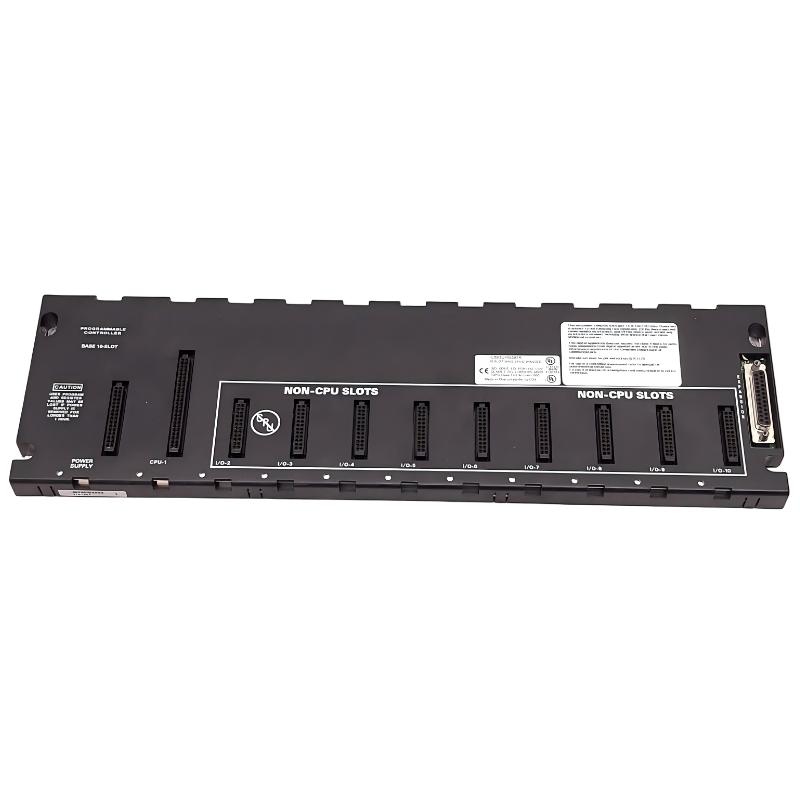

GE IC693CHS391K 10-Slot Expansion Dock

Overview

The GE IC693CHS391K is a 10-slot expansion dock designed for GE Series 90-30 PLC systems. It provides additional mounting positions for compatible PLC and I/O modules, helping expand system capacity while maintaining an organized and accessible control cabinet layout.

General Information

Part Number: IC693CHS391K

Manufacturer: GE

Product Type: 10-Slot Expansion Dock

Product Family: Series 90-30

Module Type: Expansion Chassis

Brand: GE

Country of Origin: United States

Application: PLC System Expansion

Slot Capacity: 10 Slots

Mounting: Panel Mount

Power Specifications

Power Supply: System Power

Power Distribution: Through Chassis Backplane

Module Support: Series 90-30 Compatible Modules

The IC693CHS391K provides the backplane structure required for connecting compatible Series 90-30 modules and distributing system power and signals across the chassis.

Communication & Interface

Backplane Interface: Series 90-30 System Backplane

Slot Interface: 10 Module Slots

Module Connection: Backplane-Based

System Integration: GE Series 90-30 PLC Architecture

The expansion dock connects compatible modules through its internal backplane, allowing additional I/O and control components to be integrated into an existing PLC system.

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Relative Humidity: 5 to 95%, Non-Condensing

Installation Environment: Industrial Control Cabinet

The chassis is intended for use in suitable industrial environments and should be installed according to the applicable Series 90-30 system requirements.

Dimensions & Weight

Dimensions: 443 × 130 × 142 mm

Weight: 0.95 kg

New In Stock — Expand Your PLC System with a Practical 10-Slot Solution.
