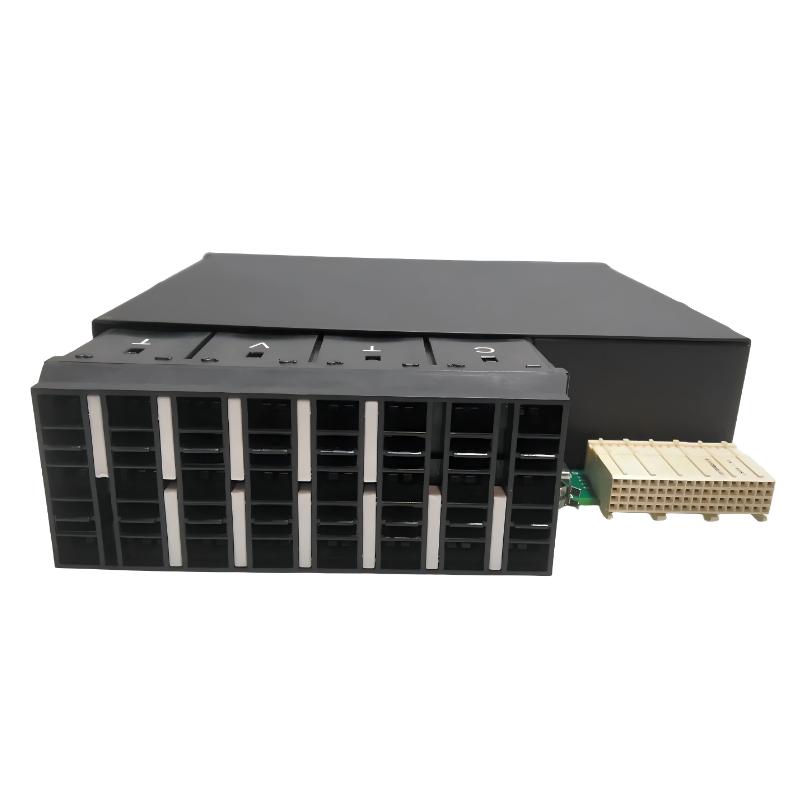

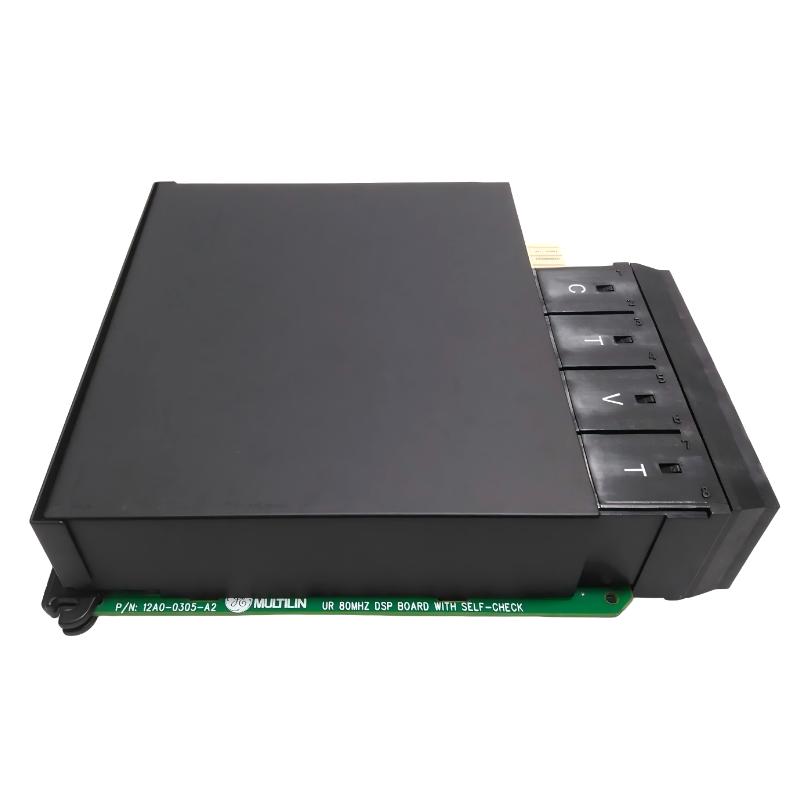

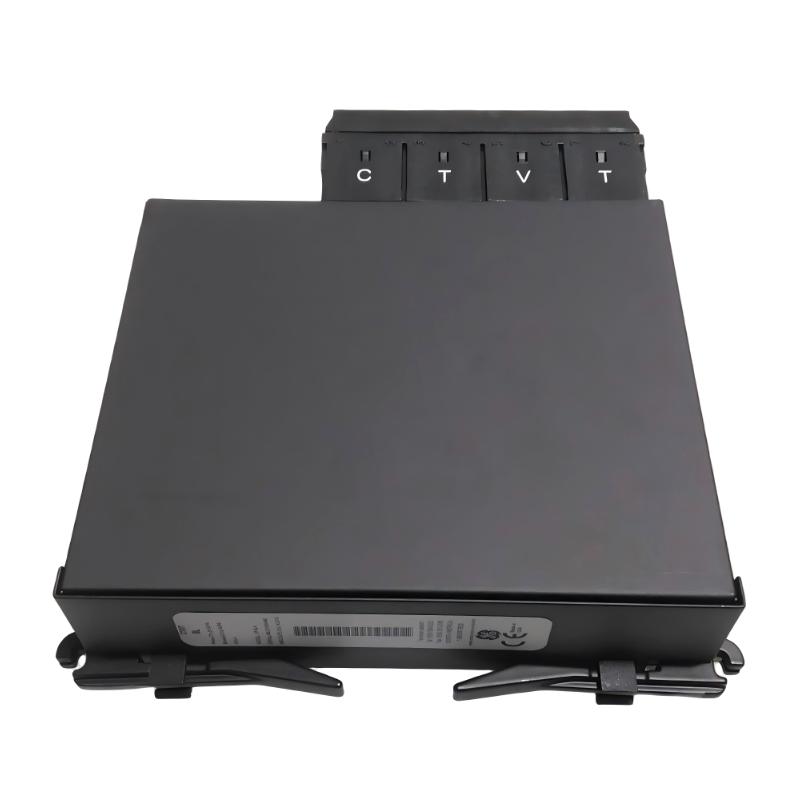

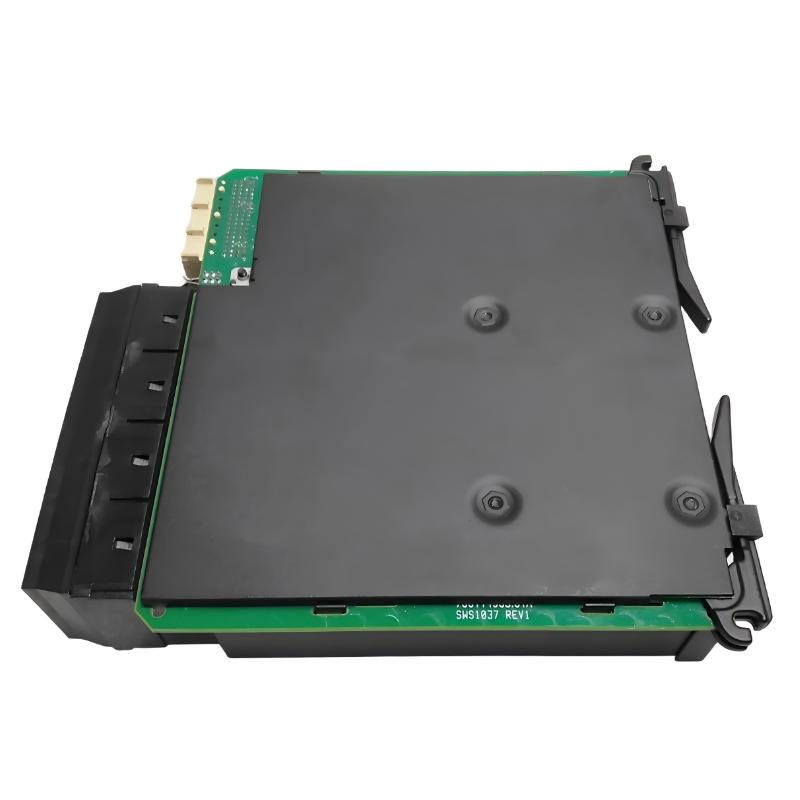

GE UR 8LH CT/VT Module

Overview

The GE UR 8LH CT/VT Module is a current transformer and voltage transformer input module designed for use with Universal Relay protection and control systems. It provides electrical measurement inputs for monitoring, protection, metering, and related power system functions.

General Information

Part Number: UR 8LH

Manufacturer: GE

Brand: GE

Series: Universal Relay (UR)

Type: CT/VT Module

Application: Protection, measurement, metering, and power system monitoring

Module Function: Current and voltage transformer signal acquisition

Installation: Compatible with the designated Universal Relay system

Country of Origin: United States

Power Specifications

Module Type: CT/VT signal input module

Input Signals: Current transformer (CT) and voltage transformer (VT) signals

Power Supply: Supplied through the compatible relay system

Measurement: Supports electrical signal acquisition for relay protection and monitoring

Protection: Designed for integration within an industrial protection and control system

Communication & Interface

Interface Type: CT/VT input interface

Signal Connection: Provides transformer signal connections to the relay

System Integration: Designed for use within Universal Relay protection systems

Data Function: Supports measurement data used by protection and monitoring functions

Diagnostics: System-level status and diagnostic functions

Environmental

Operating Environment: Industrial power protection and control applications

Installation Location: Relay panels, control cabinets, and electrical equipment enclosures

Operating Temperature: Application-dependent according to the installed relay system

Humidity: Suitable for typical industrial environments when properly installed

Protection: Enclosed installation recommended

Maintenance: Keep connections clean, secure, and free from excessive moisture or contamination

Dimensions & Weight

Dimensions (L × W × H): 120 × 30 × 100 mm

Weight: 1.2 kg
