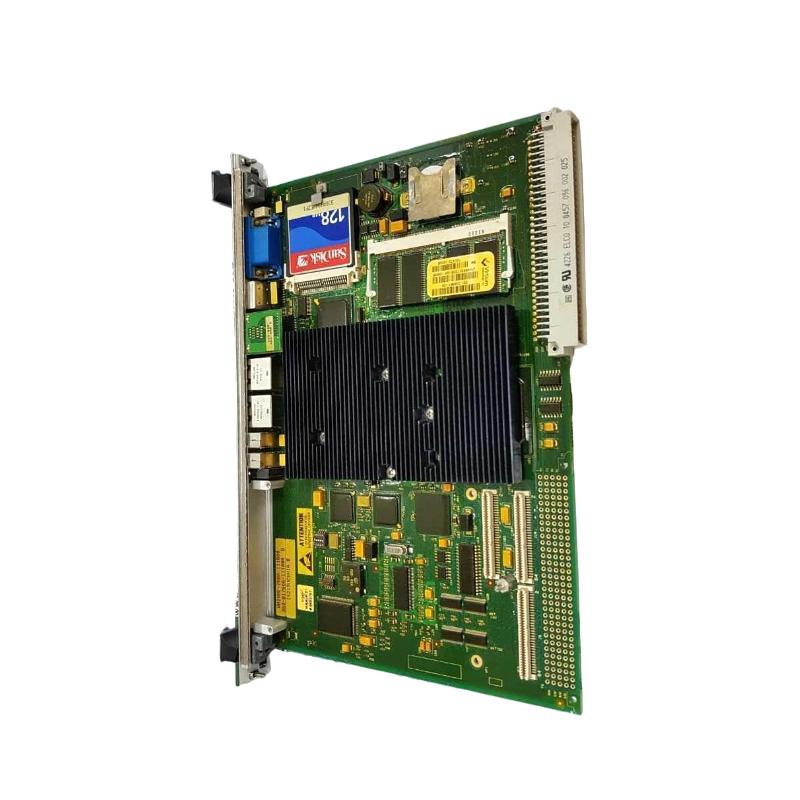

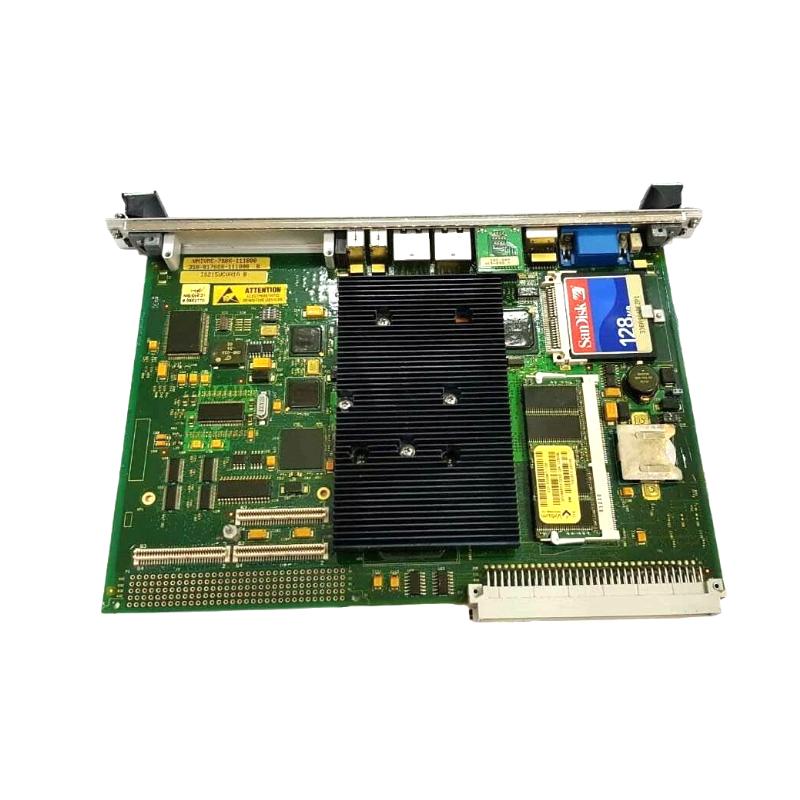

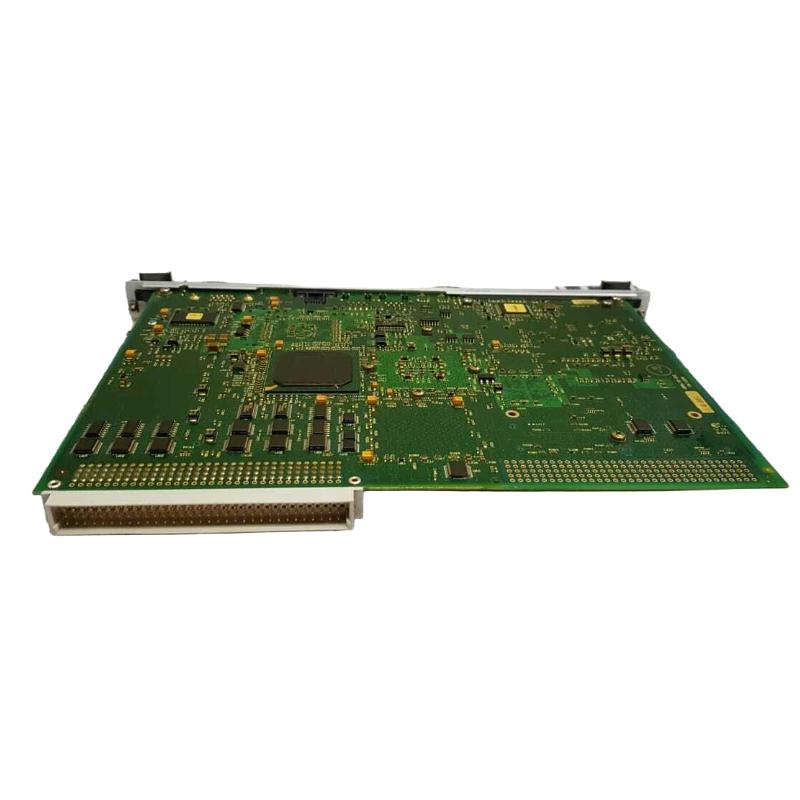

GE IS215UCVGH1A Universal Analog Output Module Price Advantage

Overview

The GE IS215UCVGH1A is a universal analog output module designed for GE’s PACSystems and Series 90-70 control systems. It provides precise voltage and current outputs for controlling field devices, enabling accurate process control and integration with safety and automation systems.

General Information

• Part Number: IS215UCVGH1A

• Manufacturer: GE (General Electric)

• Series: IS215 / PACSystems

• Module Type: Universal Analog Output Module

• Country of Origin: United States

• Mounting: Rack-mounted in PACSystems or Series 90-70 system chassis

Power Specifications

• Supply Voltage: 24 V DC for module logic

• Output Range: 0–20 mA, 4–20 mA, 0–10 V configurable

• Power Consumption: ≤ 10 W

• Input Source: Powered via system backplane

• Protection: Overcurrent, surge, and reverse-polarity protection

• Indicators: LEDs for power, channel activity, and fault

Communication & Interface

• Output Type: Analog voltage and current outputs

• Channels: 8 independent analog outputs

• Diagnostics: Open/short circuit detection and fault reporting

• Configuration: Managed via GE Proficy Control or Series 90-70 configuration software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (for installation inside industrial cabinets)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112 mm

• Weight: ~0.35 kg

Our company supplies 100% new and original items, with quotes available instantly.
