Overview

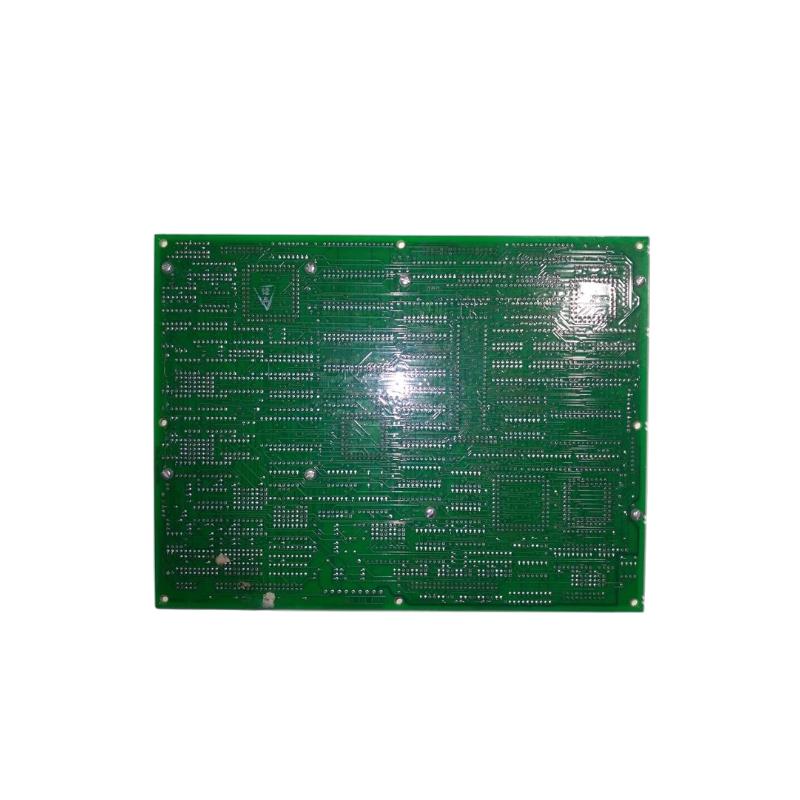

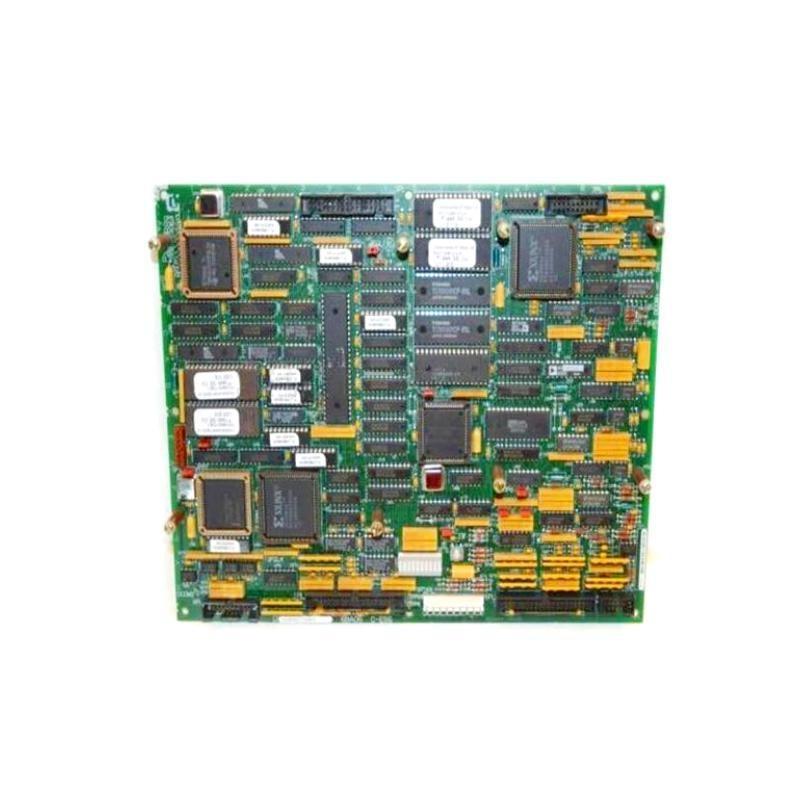

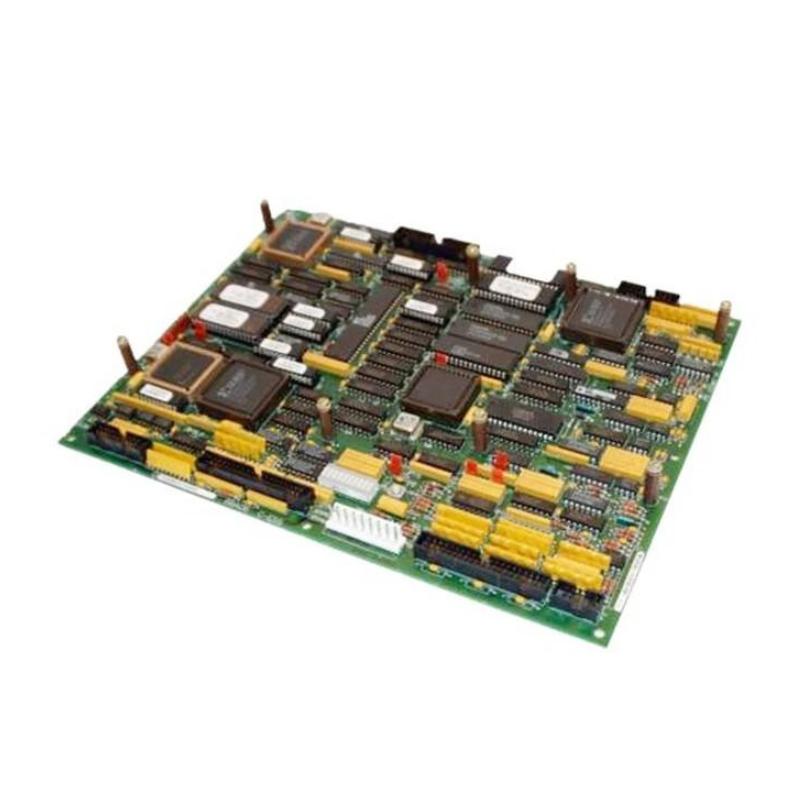

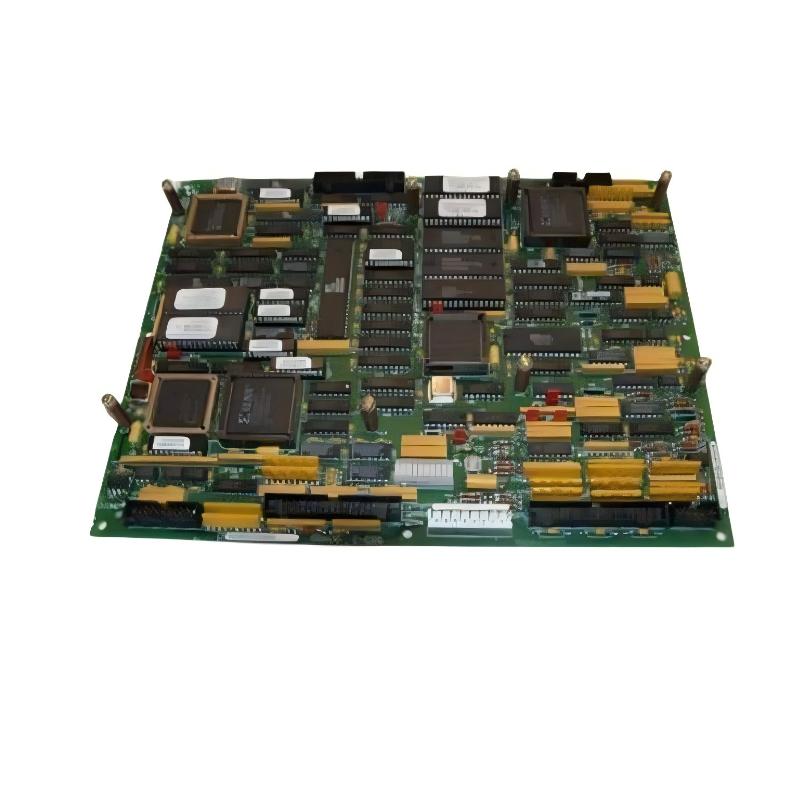

The GE DS200SDCCG5AHD is a drive control card used in GE Mark V and other GE drive systems. It provides centralized control, regulation, and monitoring functions for industrial motor drives, ensuring stable and efficient operation in demanding applications.
General Information
Model: DS200SDCCG5AHD
Manufacturer: GE (General Electric)
Product Type: Drive Control Card
System Compatibility: Mark V and GE DC/AC drive platforms
Primary Application: Motor control, process automation, and industrial drives
Power Specifications
Power Input: Receives low-voltage power through system backplane
Control Logic: Integrates analog and digital signal processing
Power Consumption: Low-power design to optimize system energy usage
Protection: Built-in protection against voltage transients and overload
Communication & Interface
Interfaces: Equipped with connectors for I/O boards, LAN, and feedback
Control Functions: Speed, torque, and process regulation
Processor: Integrated digital signal processor for control algorithms
Diagnostics: Supports onboard diagnostics and status indicators
Environmental
Operating Temperature: 0 to 60°C
Humidity: Up to 90% RH, non-condensing
Construction: High-quality PCB with ruggedized components
Installation: Typically mounted within a drive cabinet or rack
Dimensions & Weight
Dimensions: 330 × 200 × 40 mm
Weight: Approx. 1.0 kg
