Overview

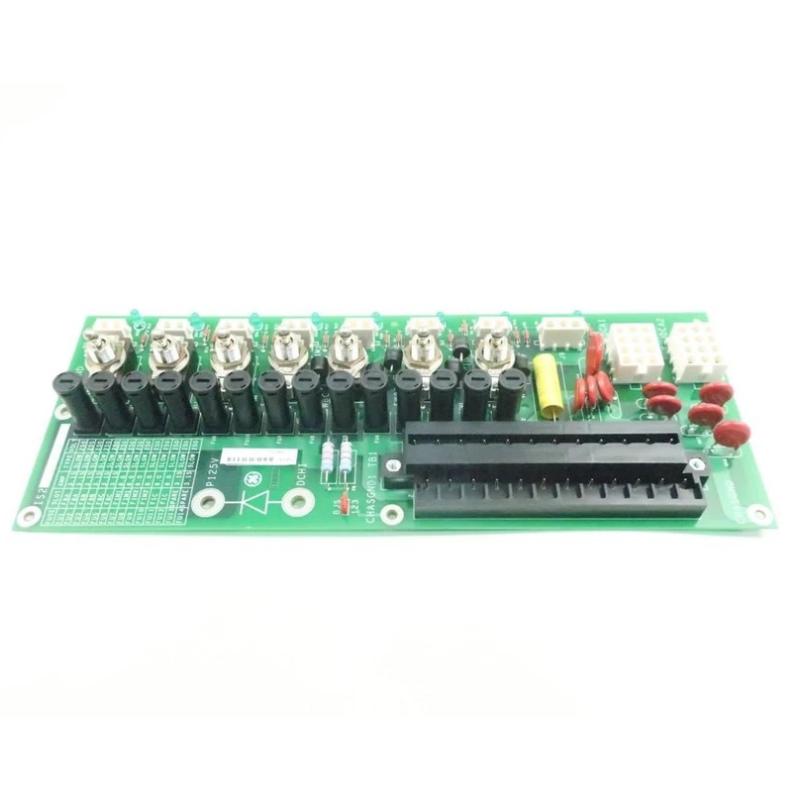

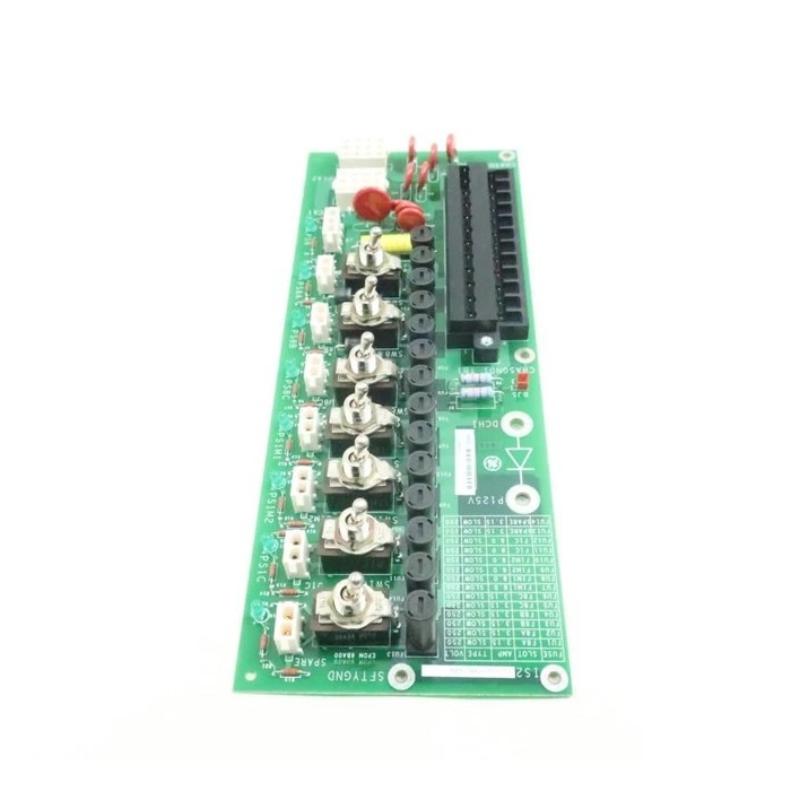

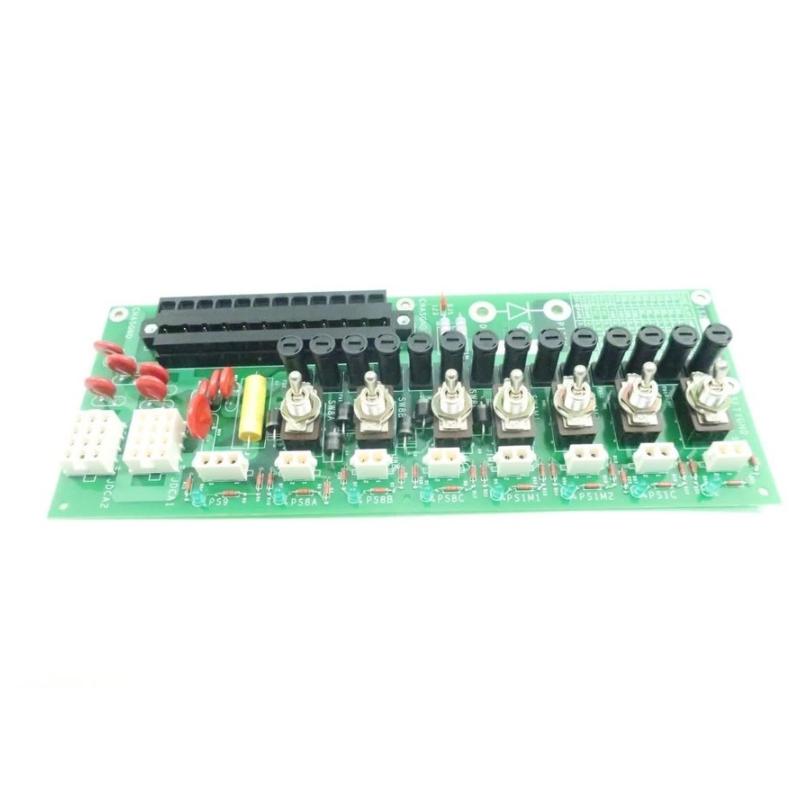

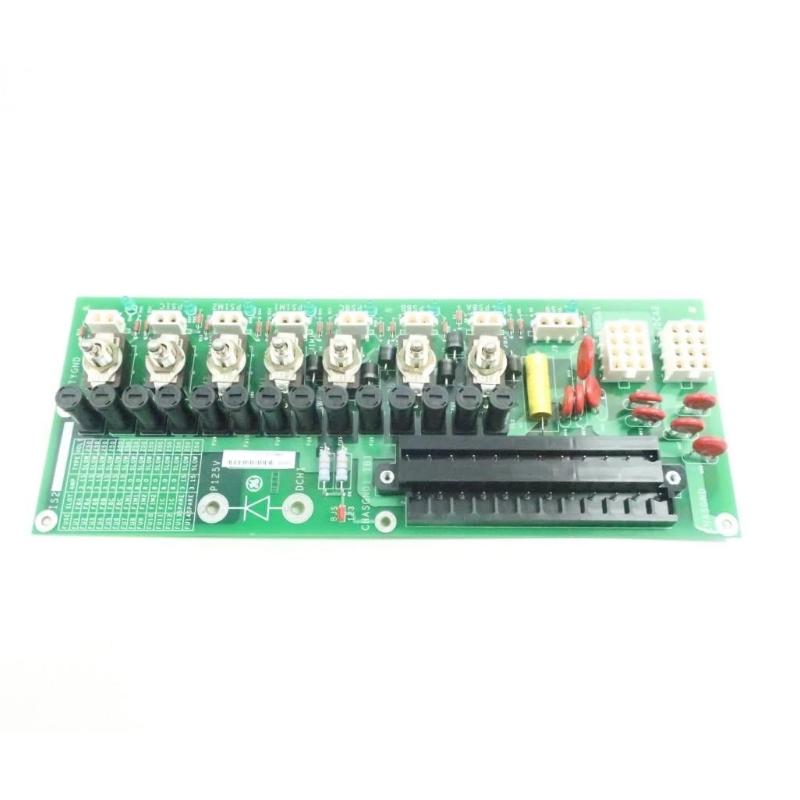

The GE IS200EPDMG1ABA is a power distribution module designed for the GE Mark VI control system. It distributes and conditions power to various control components, ensuring reliable and stable electrical supply for turbine and process control environments.
General Information
Model: IS200EPDMG1ABA
Manufacturer: GE (General Electric)
Product Type: Power Distribution Board
System Platform: Mark VI Control System
Application: Power routing and protection for control modules and I/O components
Power Specifications
Input Voltage: Accepts multiple low-voltage DC supplies from power sources
Output Power: Distributes regulated power to I/O cards and processors
Protection: Overcurrent, overvoltage, and short-circuit protection
Power Conditioning: Includes filtering and power monitoring circuits
Communication & Interface
Interface Type: Connector-based terminal interface for power distribution
Indicators: Diagnostic LEDs for status and fault monitoring
Compatibility: Connects directly to Mark VI control racks and field power systems
Configuration: Supports straightforward system integration and maintenance
Environmental
Operating Temperature: 0 to 60°C
Humidity: Up to 95% RH, non-condensing
Build Quality: High-reliability PCB with protective coating
Installation: Typically mounted within a control rack or cabinet
Dimensions & Weight
Dimensions: 82.6 x 41.9 mm
Weight: Approx. 0.9 kg
