Overview
The GE IS200STCIH2AED is a simplex contact input terminal board used in GE Mark VI control systems. It provides discrete input signal conditioning and processing, allowing safe and reliable connection of field contacts for monitoring and control in turbine and industrial applications.
General Information
Model: IS200STCIH2AED
Manufacturer: GE (General Electric)
Product Type: Simplex Contact Input Terminal Board
System Platform: Mark VI Control System
Application: Field contact monitoring and logic signal processing
Power Specifications
Input Power: Supplied via control system backplane
Input Voltage Range: Supports standard control voltage levels for dry contact inputs
Isolation: Channel-to-channel and ground isolation for signal integrity
Protection: Input surge and transient protection included
Communication & Interface
Input Channels: Typically supports up to 24 contact inputs
Interface: Terminal connectors for field wiring and ribbon cable to controller
Signal Processing: Integrated filtering and debounce logic for accurate state detection
Diagnostics: System-based diagnostics and LED status indication
Environmental
Operating Temperature: 0 to 60°C
Humidity: Up to 95% RH, non-condensing

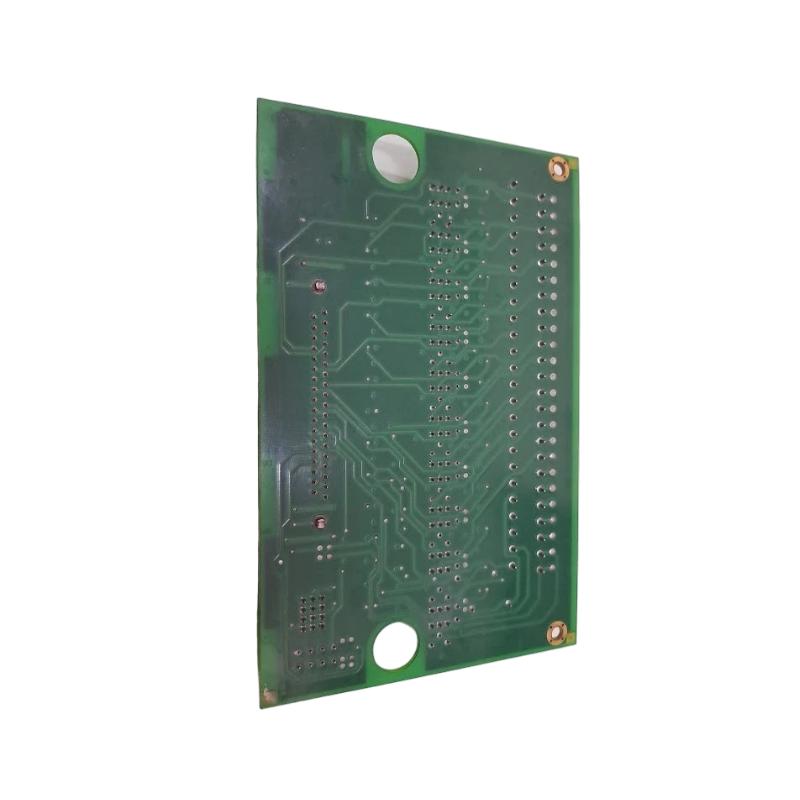

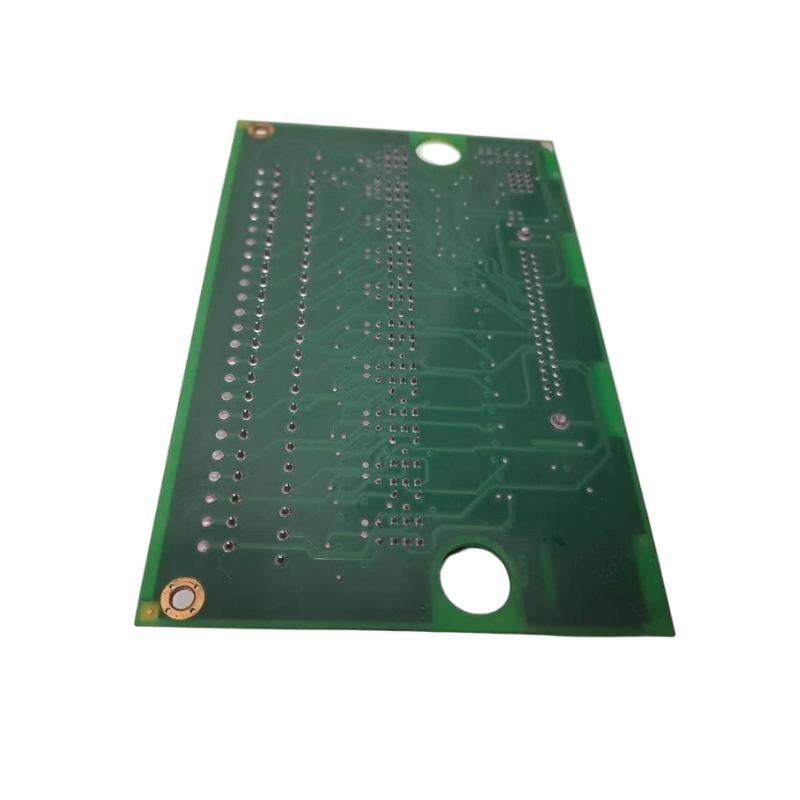

Design: Rugged PCB with conformal coating for enhanced reliability
Installation: Mounts directly within a control rack or cabinet
Dimensions & Weight
Dimensions: 330 × 130 × 40 mm
Weight: Approx. 0.9 kg
