Overview

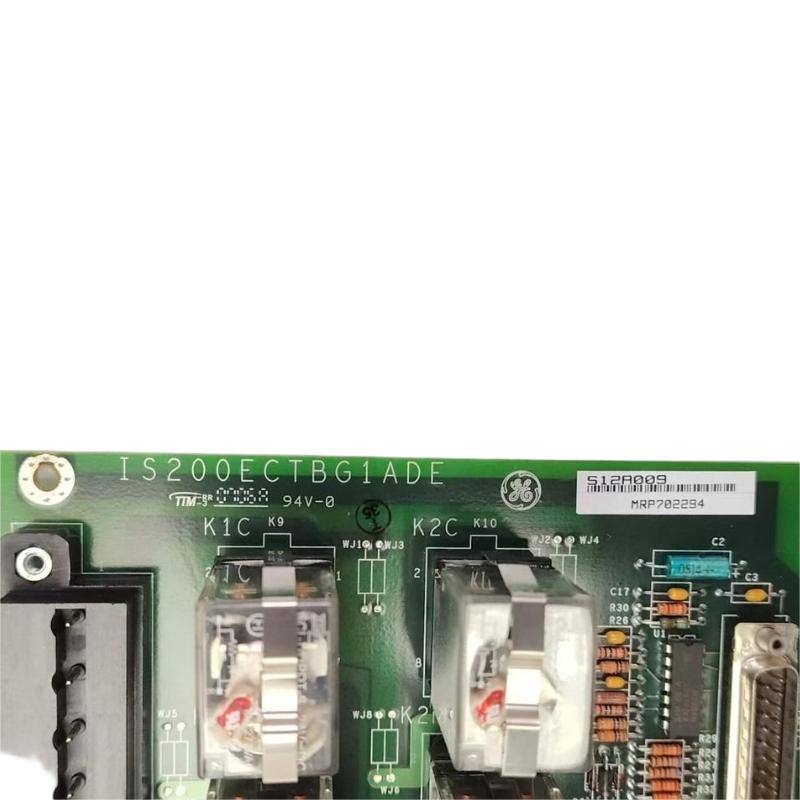

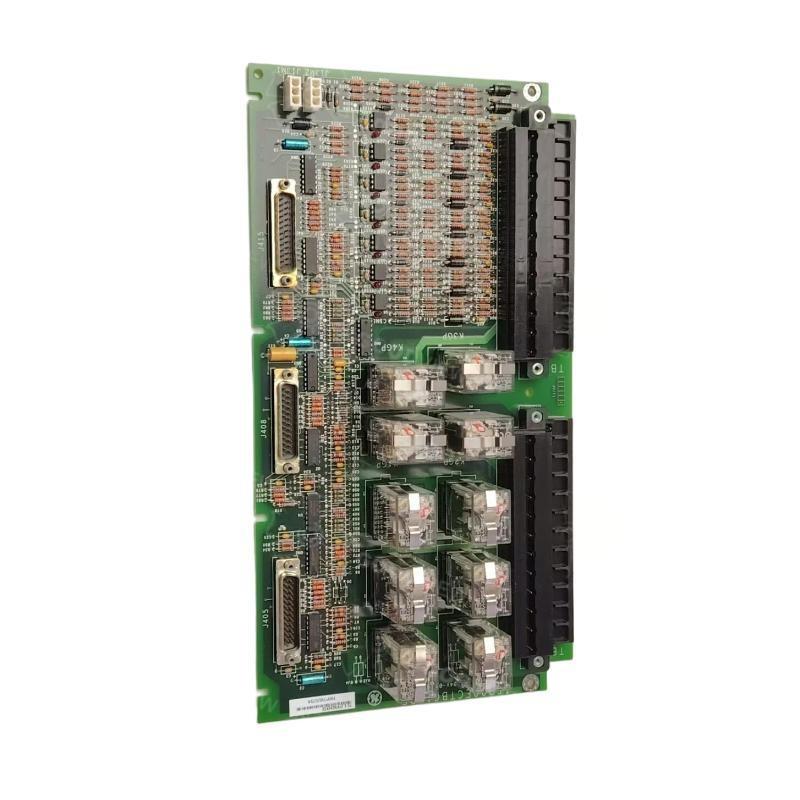

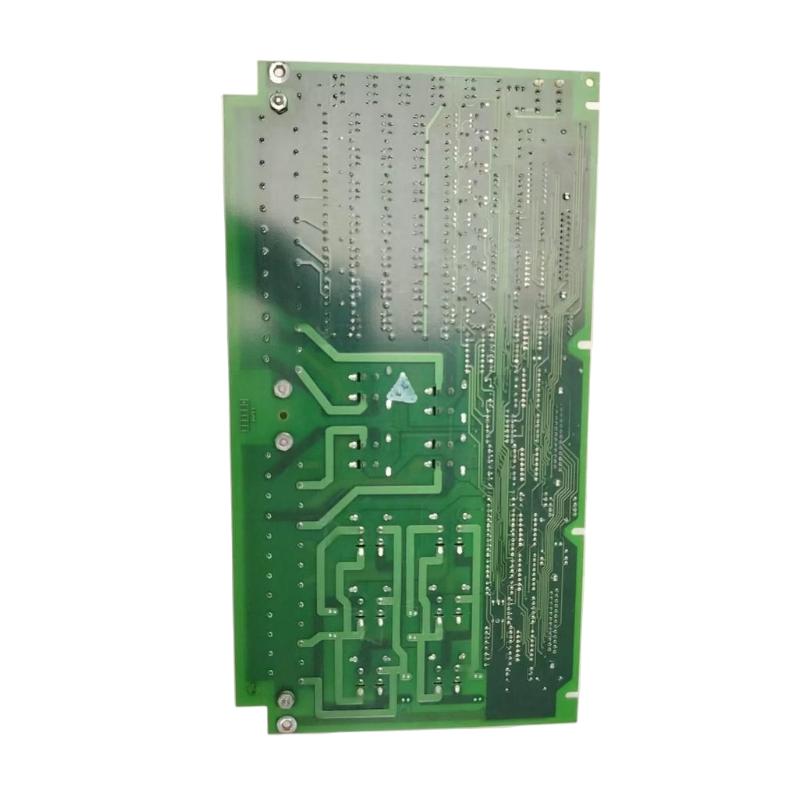

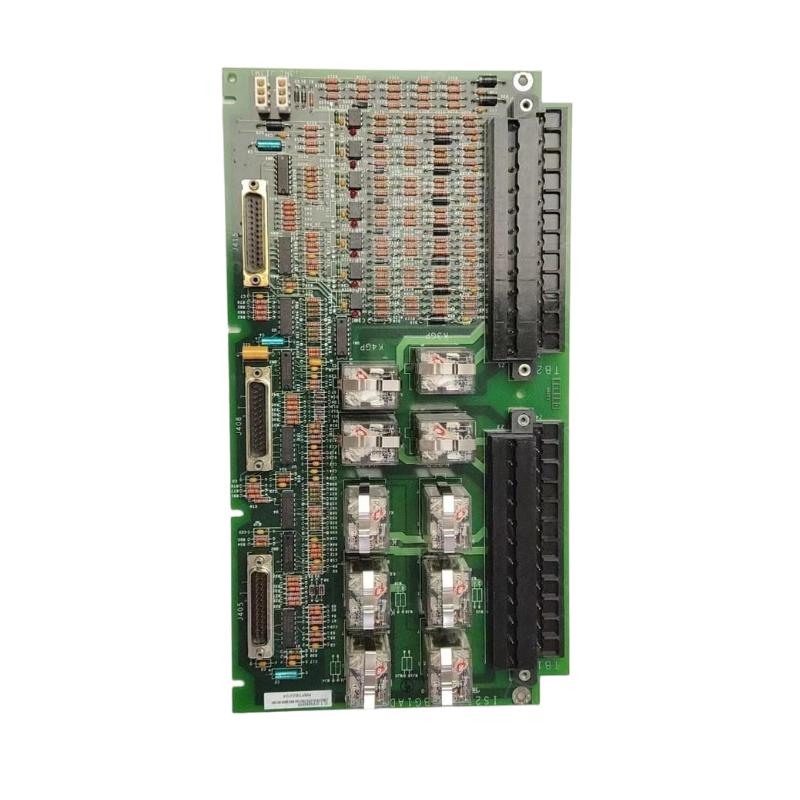

The GE IS200ECTBG1ADE is an exciter contact terminal board designed for turbine control and excitation systems within GE’s Mark VI platform. It provides reliable termination and routing of contact signals, supporting high-integrity control, protection, and monitoring functions in generator excitation applications.
General Information
Part Number: IS200ECTBG1ADE
Brand: GE (Brand / Country of Origin: United States)
Manufacturer: General Electric
Series: Mark VI Control System
Type: Exciter Contact Terminal Board
Mounting: Panel or chassis installation
Technology: Industrial-grade termination board with reinforced isolation and signal stability
Power Specifications
Supply Voltage: Provided through the system backplane
Power Draw: Extremely low (passive terminal board)
Input Type: Dry contact and auxiliary signal interfacing
Protection: Noise suppression, surge protection, stable terminal grounding
Indicators: Not applicable for this board type
Communication & Interface
Interface Type: Terminal-to-controller signal routing
Supported Signals: Contact inputs, exciter system interlocks, control status feedback
System Compatibility: GE Mark VI exciter and turbine control platforms
Diagnostics: Passive hardware, supports controller-side diagnostics
Operator Interaction: Direct terminal access for field wiring and maintenance
Environmental
Operating Temperature: −30 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Control cabinet or protected industrial enclosure
Protection Rating: Standard industrial board protection
Dimensions & Weight
Dimensions (L × W × H): 260 × 160 × 25 mm
Weight: ~ 0.771 kg
