GE IS200EXAMG1BAA | Exciter Attenuation Module Model 30-Day Returns

Overview

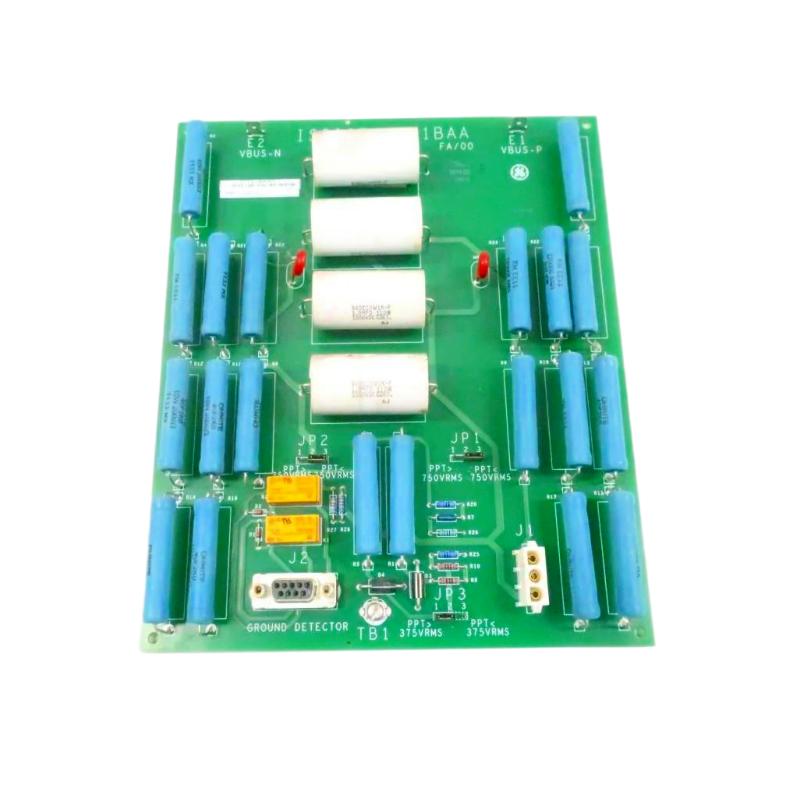

The GE IS200EXAMG1BAA is an Exciter Attenuation Module designed for GE EX2100 and Mark VI excitation control systems. It reduces high DC field voltage to a safe, measurable level for monitoring and ground-fault detection, ensuring stable and reliable generator excitation performance.

General Information

Part Number: IS200EXAMG1BAA
Brand: GE (Brand / Country of Origin: United States)
Manufacturer: General Electric
Series: EX2100 / Mark VI Excitation System
Type: Exciter Attenuation Module
Mounting: Installed inside the exciter or auxiliary control cabinet
Technology: High-voltage attenuation, isolation, and signal conditioning

Power Specifications

Input Voltage: High DC field voltage from exciter output
Output Signal: Scaled and conditioned feedback for controller monitoring
Power Characteristics: Passive attenuation circuitry with capacitor filtering
Protection: Surge suppression, isolation barrier, noise filtering
Indicators: No board-level LEDs

Communication & Interface

Interface Type: Field voltage feedback and attenuation interface
Supported Signals: Voltage feedback, ground detection pathways
System Compatibility: GE EX2100 and Mark VI excitation platforms
Diagnostics: Supports controller-driven ground fault detection logic
Operator Interaction: Field terminal access for installation and testing

Environmental

Operating Temperature: 0 to +40 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Excitation system control cabinet
Protection Rating: Industrial PCB coating and reinforced electrical isolation

Dimensions & Weight

Dimensions (L × W × H): 260 × 160 × 25 mm
Weight: ~ 0.35 kg

Stock includes brand-new originals, 24/7 customer service available, transparent pricing provided.
