Overview

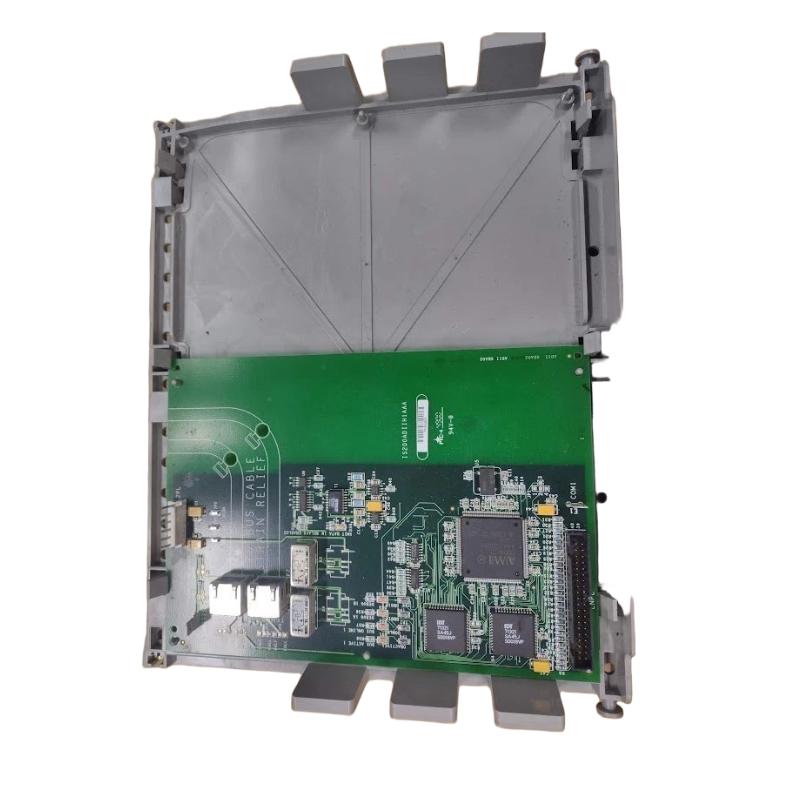

The GE DS200ITXDG1AAA is a processor module used in GE Mark V and drive-control systems. It handles key processing tasks, data handling, and signal coordination within the drive, ensuring reliable system performance and stable communication between control components.
General Information
Part Number: DS200ITXDG1AAA
Manufacturer: GE (General Electric)
Series: Mark V / Drive Control Systems
Type: Processor Module
Mounting: Rack or card-slot installation inside the drive chassis
Technology: Digital signal processing, onboard memory, diagnostic logic
Country of Origin: United States
Power Specifications
Supply Voltage: From drive backplane
Power Consumption: Low-power digital electronics
Protection: Built-in surge protection and stabilizing circuitry
Indicators: Status and fault LEDs (if equipped)
Communication & Interface
Interface Type: Internal system bus communication
Connectivity: Links to control boards, communication boards, and I/O modules
Diagnostics: Supports system-level health monitoring
Operator Interface: LED status indicators
Reset Features: Reset via system command or power cycle
I/O & Channels
Relay Channels: None
Data Channels: Digital control and processing channels
External Load Support: Not applicable
Functional Role: Central processor for subsystem coordination
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Designed for industrial cabinet environments
Dimensions & Weight
Dimensions (L × W × H): 280 × 190 × 40 mm
Weight: ~ 1.0 kg
