Overview

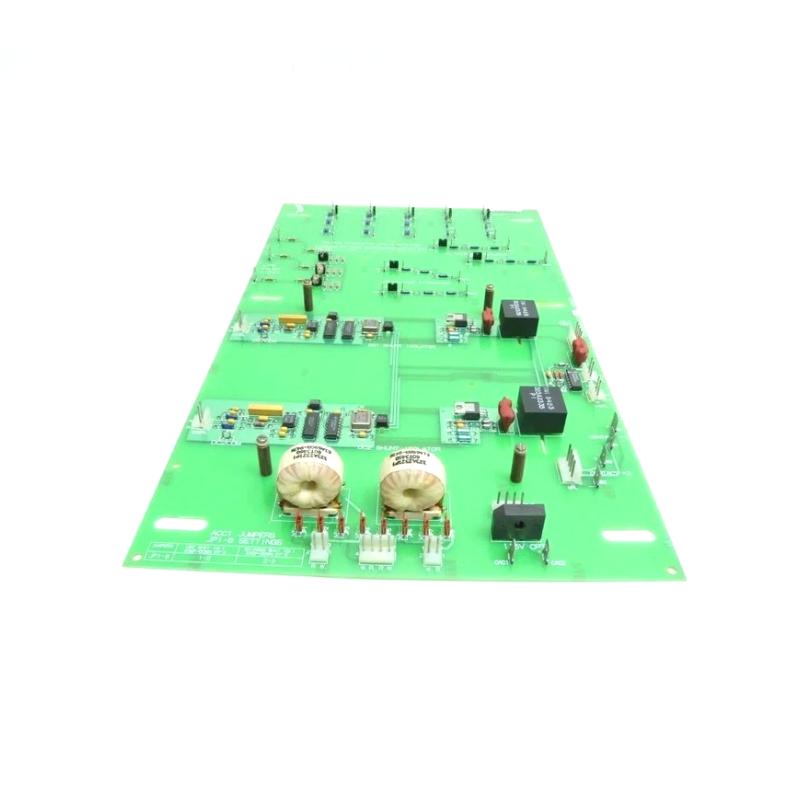

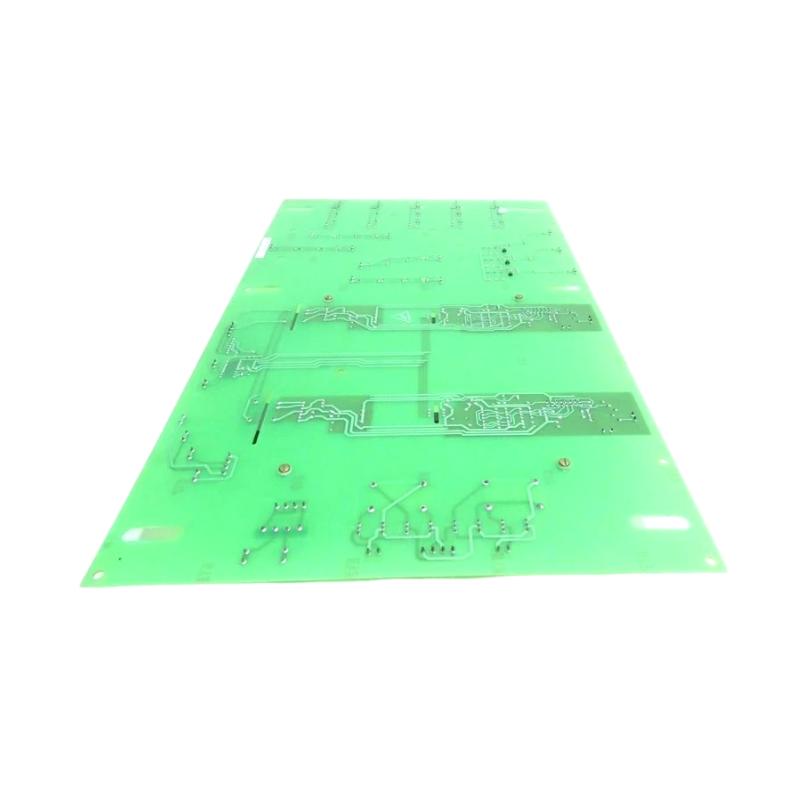

The GE DS200SHVIG1BFC is a high-voltage interface and control PCB used in GE industrial drive systems, especially within the Mark V series. It provides signal conditioning, isolation, and control interfacing for high-voltage components, ensuring stable and reliable drive operation.
General Information

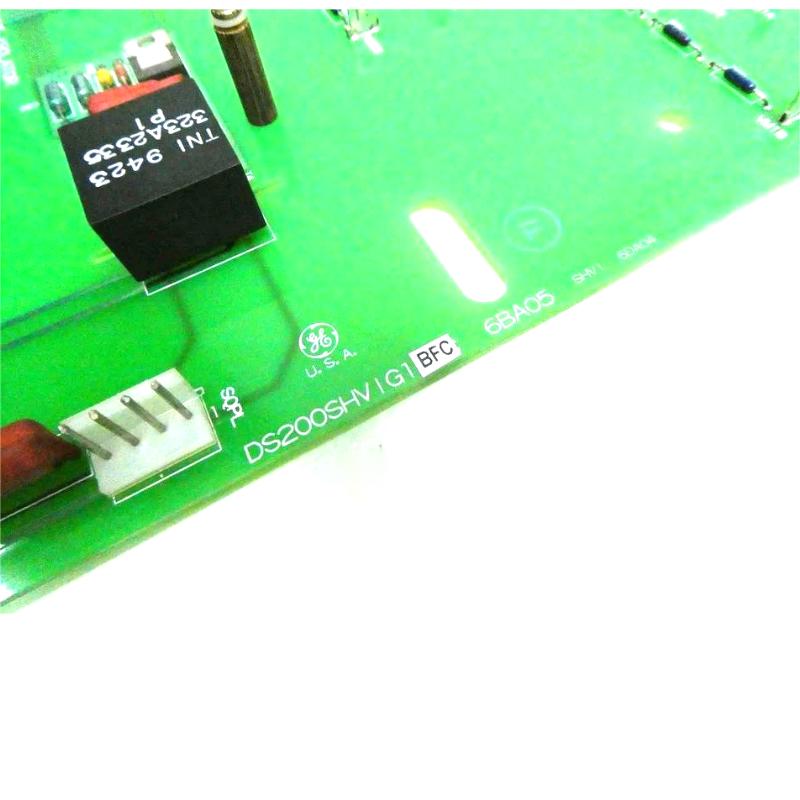

Part Number: DS200SHVIG1BFC
Manufacturer: GE (General Electric)
Series: Mark V / Industrial Drive System
Type: High-Voltage Interface PCB
Mounting: Rack or chassis installation
Technology: High-voltage isolation, analog/digital conditioning, system diagnostics
Country of Origin: United States
Power Specifications
Supply Voltage: Provided by system backplane
Power Consumption: Low electronic load
Protection: High-voltage isolation, transient protection, noise filtering
Indicators: May include test points or status indicators
Communication & Interface
Interface Type: High-voltage signal interface
Functional Role: Conditioning and transmitting control signals to drive components
Diagnostics: Supports system monitoring and protective feedback
Operator Interface: Test terminals for measurement and diagnostics
Reset Features: System-level reset through controller
I/O & Channels
Inputs: High-voltage sense and control signals
Outputs: Conditioned signals for drive control modules
External Loads: Not applicable
Function: High-voltage PCB interface for drive system coordination
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Industrial control cabinet
Dimensions & Weight
Dimensions (L × W × H): 330 × 200 × 40 mm
Weight: ~ 1.1 kg
