Overview

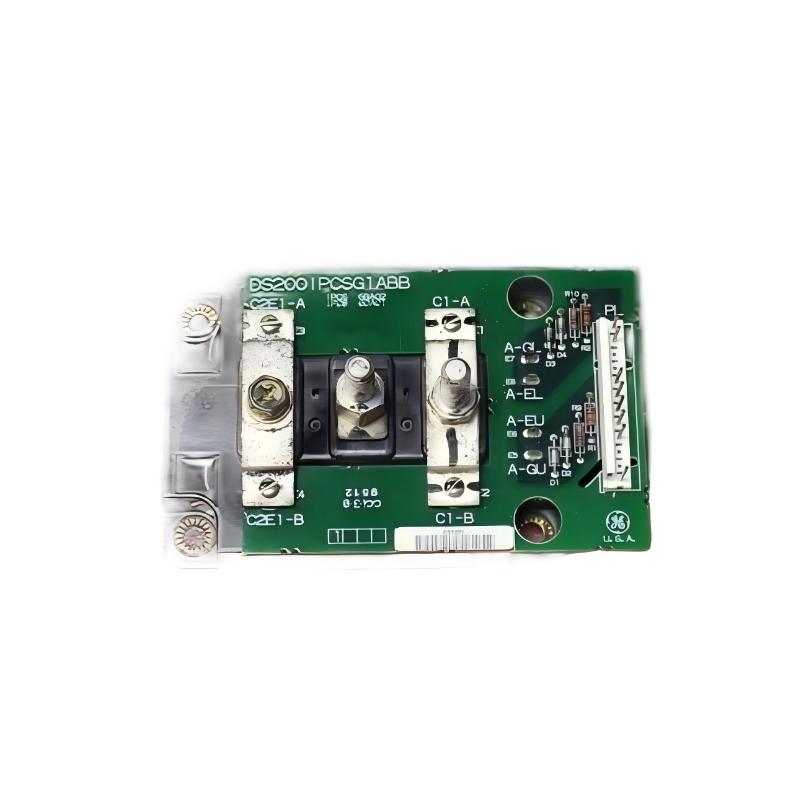

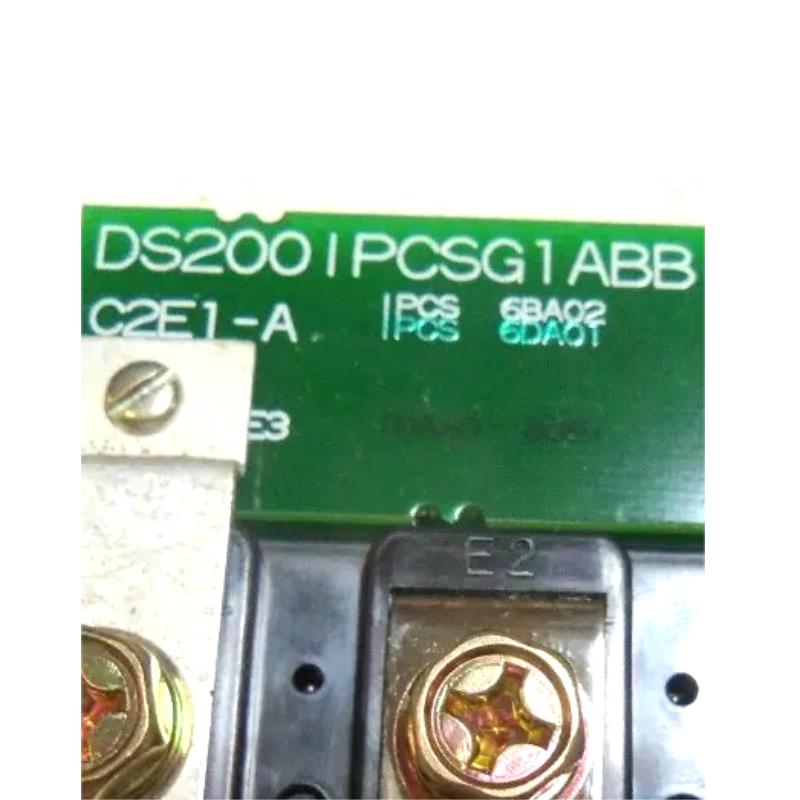

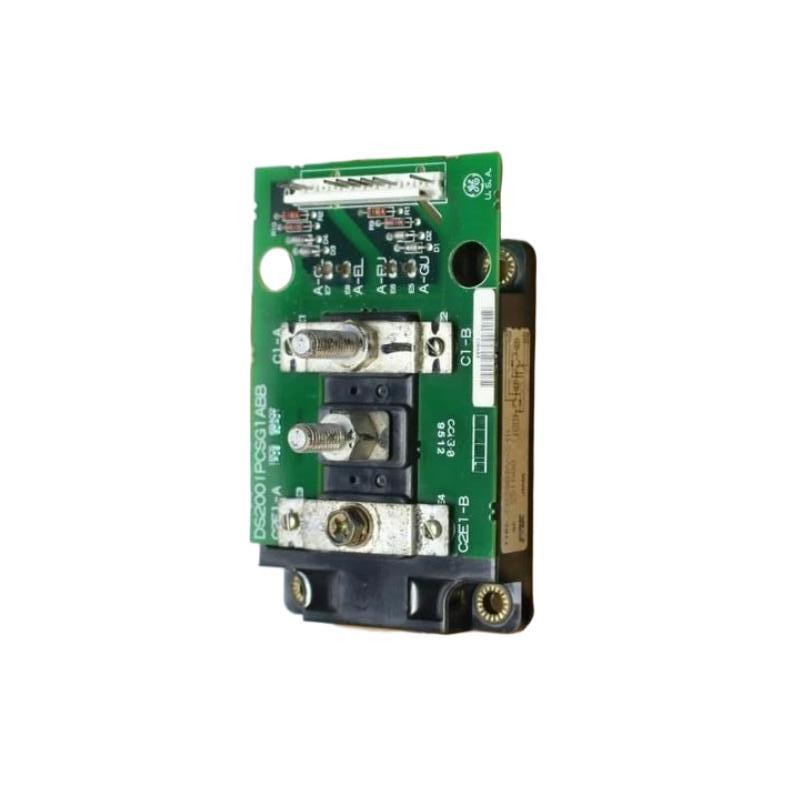

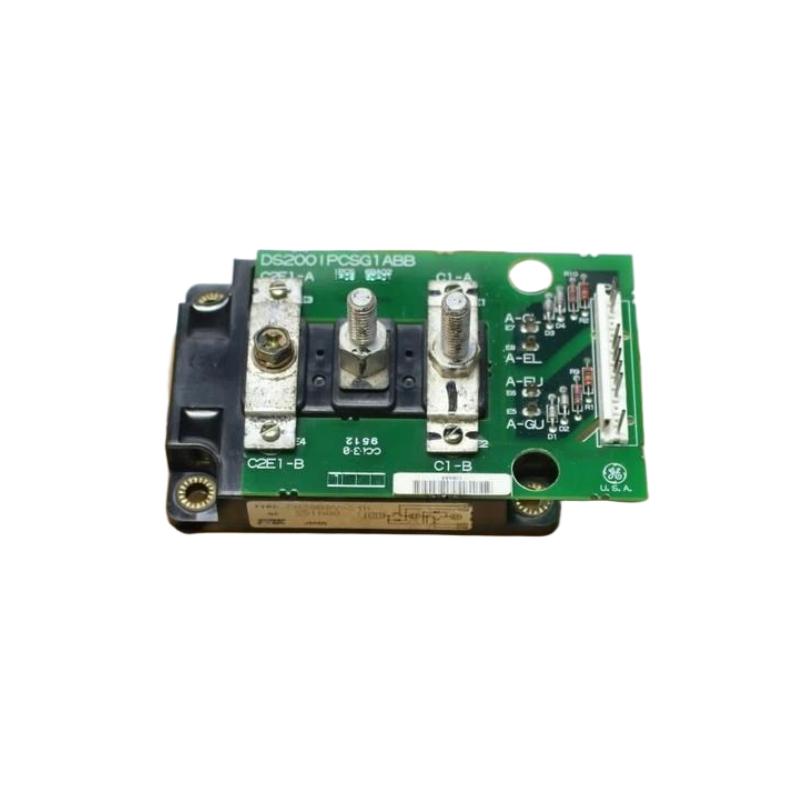

The GE DS200IPCSG1ABB is an industrial IGBT P3 snubber board designed for GE drive systems. It provides suppression of voltage spikes generated during IGBT switching, improves inverter reliability, and protects high-power semiconductor components during dynamic load conditions.
General Information
Part Number: DS200IPCSG1ABB
Manufacturer: GE (General Electric)
Series: GE Drive / Mark V
Type: IGBT Snubber Board
Mounting: Internal installation in the power conversion assembly
Technology: High-voltage snubber network, transient energy absorption
Country of Origin: United States
Power Specifications
Input: High-voltage DC from IGBT power section
Primary Function: Limits switching transients, protects IGBT modules
Protection: Surge suppression, high-frequency damping
Indicators: None
Communication & Interface
Interface Role: Direct electrical interface with the IGBT power module
Connectivity: Heavy-duty terminals and board-to-module connectors
Diagnostics: Electrical test points only
Operator Interface: None
Reset Features: Not required; passive circuitry
I/O & Channels
Inputs: High-energy transient pulses from switching events
Outputs: Stabilized voltage waveform across IGBT devices
External Load Support: Not applicable
Function: Power protection, energy absorption, and snubber stabilization
Environmental
Operating Temperature: −30 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Enclosed drive cabinet or inverter module
Dimensions & Weight
Dimensions (L × W × H): 180 × 130 × 35 mm
Weight: ~ 0.5 kg
