Overview

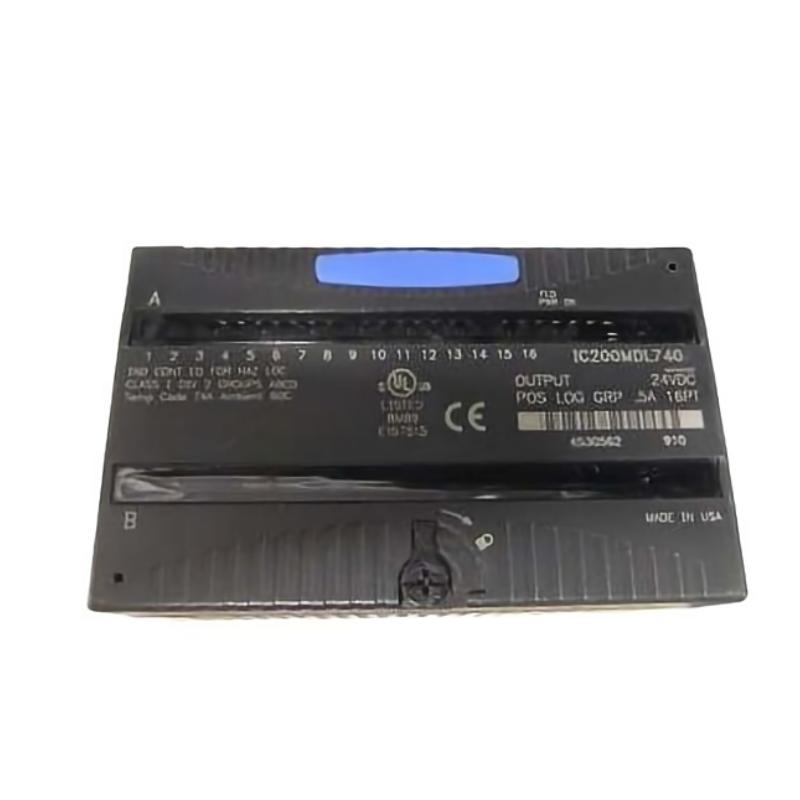

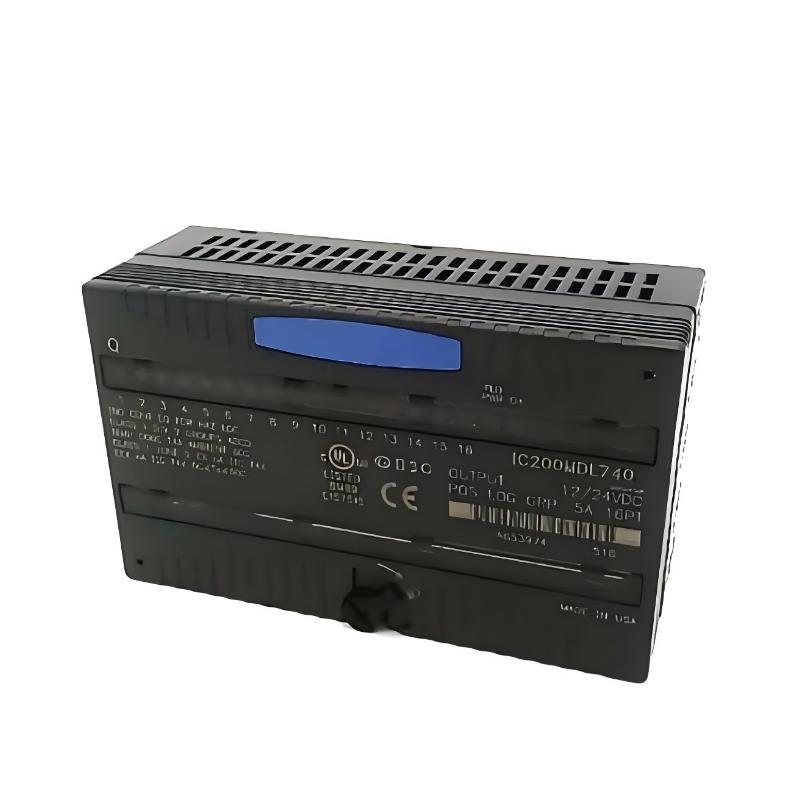

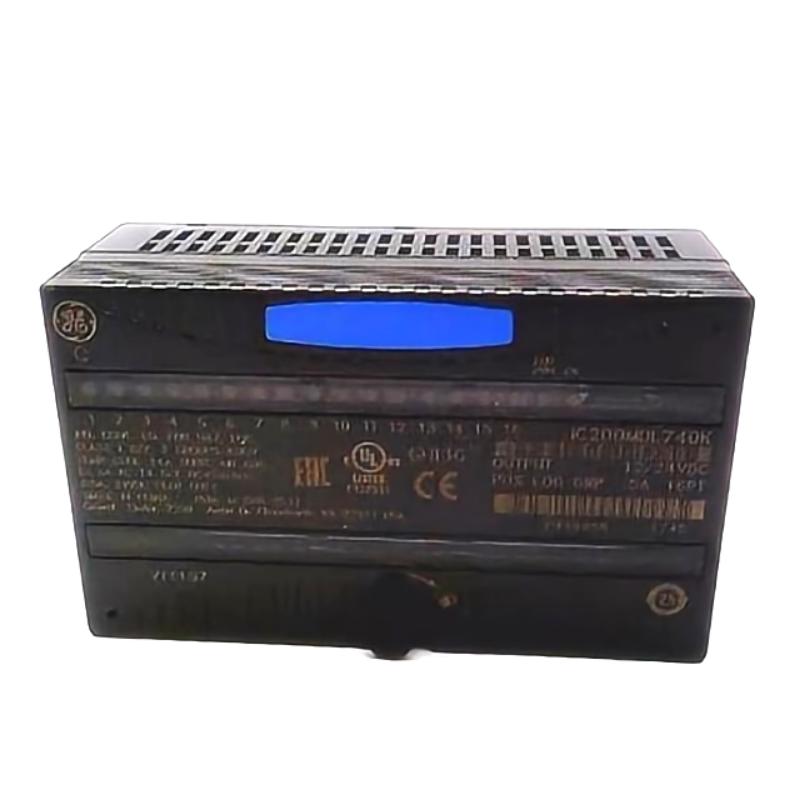

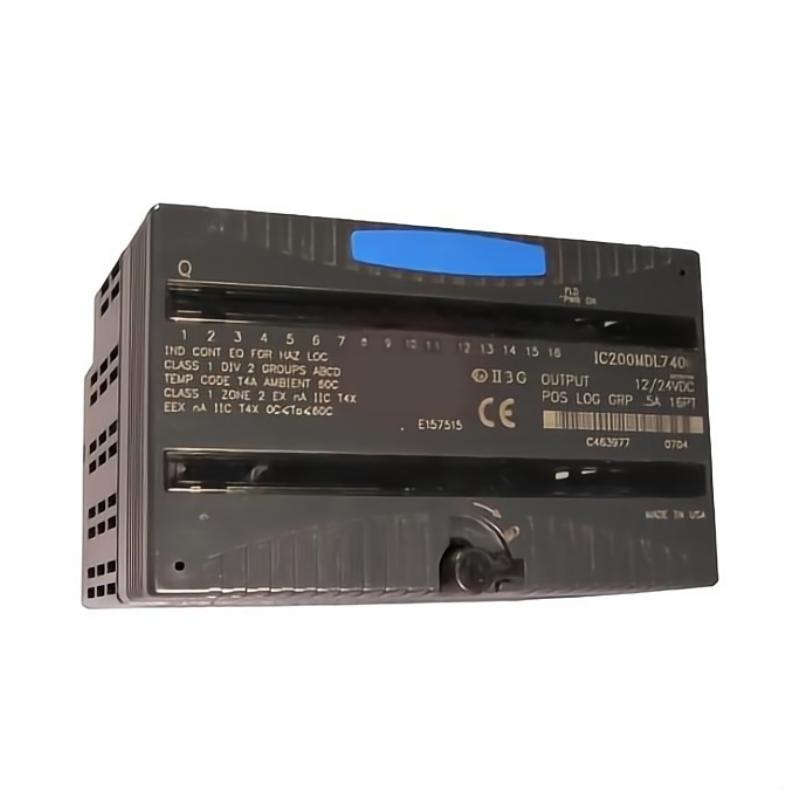

The GE IC200MDL740 VersaMax Discrete Output Module is designed for efficient and reliable digital output control within industrial automation systems. Integrated into the VersaMax I/O platform, this module provides seamless control of field devices and actuators, ensuring consistent performance in discrete control applications. It is ideal for use in systems requiring high reliability and effective output switching.
General Information
Part Number: IC200MDL740
Manufacturer: GE
Series: VersaMax
Type: Discrete Output Module
Application: Digital output control for PLC systems
Country of Origin: USA
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 4 W
Output Drive: Supports standard digital output load
Protection: Overload and short-circuit protection
Communication & Interface
Interface: Integrated with the VersaMax I/O system
Output Type: Discrete digital outputs
Diagnostics: LED indicators for output status and health monitoring
Configuration: Configured via GE PLC software
Reset Features: Software-controlled reset
Environmental
Operating Temperature: 0 to +60 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, suitable for cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 110 × 66.8 × 50 mm
Weight: 0.231 kg
