Overview

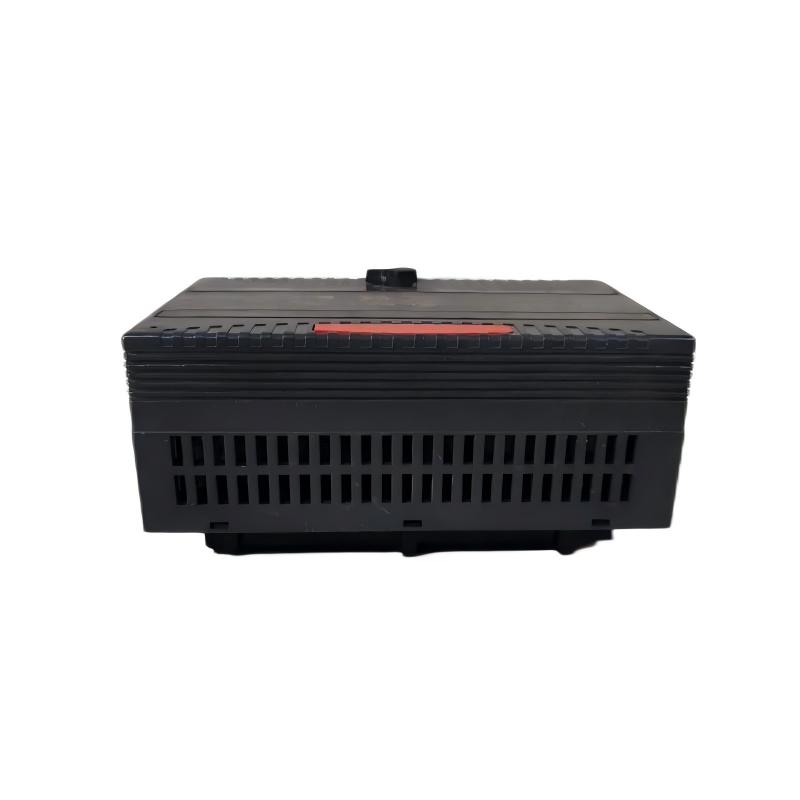

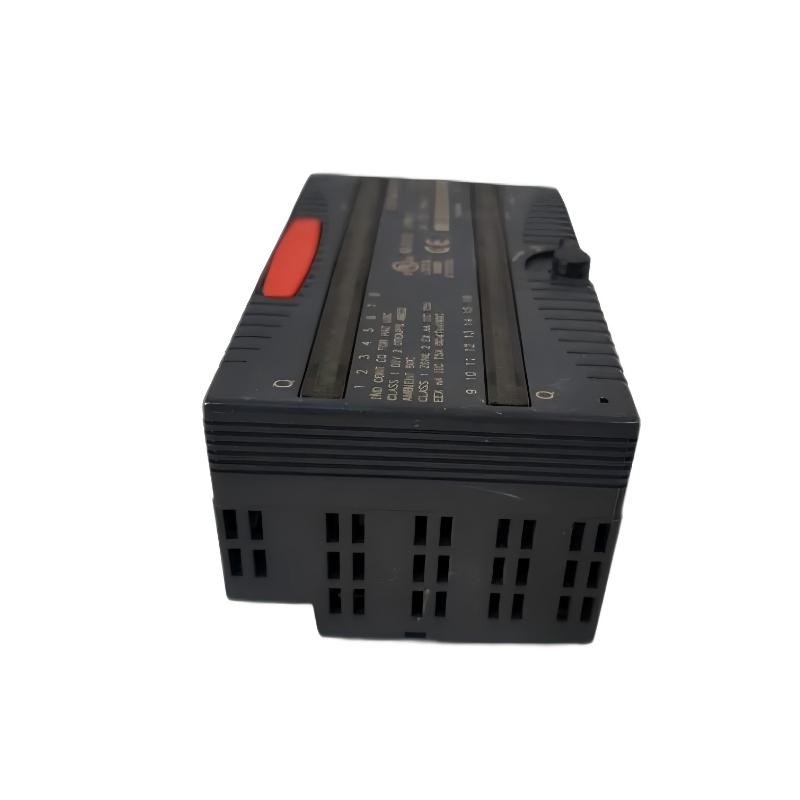

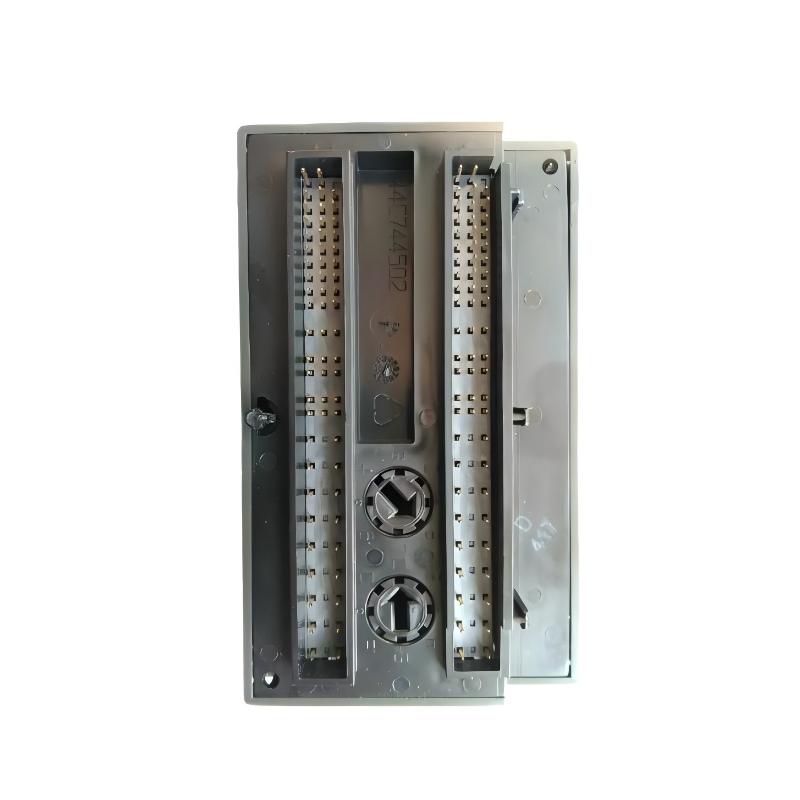

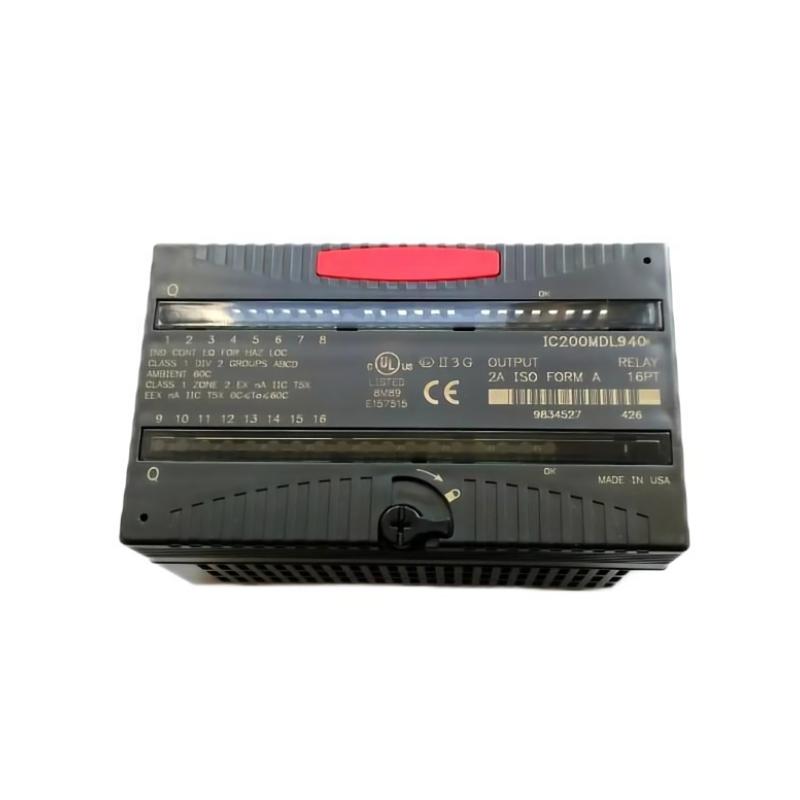

The GE IC200MDL940 VersaMax Discrete Output Module is designed to provide efficient and reliable control of digital outputs in industrial automation systems. Integrated into the VersaMax I/O system, this module ensures dependable operation for controlling field devices and actuators in a variety of applications. Its robust performance makes it ideal for environments that demand high output reliability and precision.
General Information
Part Number: IC200MDL940
Manufacturer: GE
Series: VersaMax
Type: Discrete Output Module
Application: Digital output control for automation systems
Country of Origin: USA
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Output Drive: Supports standard digital output loads
Protection: Overload and short-circuit protection
Communication & Interface
Interface: Integrated with VersaMax I/O system
Output Type: Discrete digital outputs
Diagnostics: LED indicators for output status and system health monitoring
Configuration: Configured via GE PLC programming software
Reset Features: Software-controlled reset
Environmental
Operating Temperature: 0 to +60 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, panel-mountable
Dimensions & Weight
Dimensions (L × W × H): 110 × 66.8 × 50 mm
Weight: 0.508 kg
