Overview

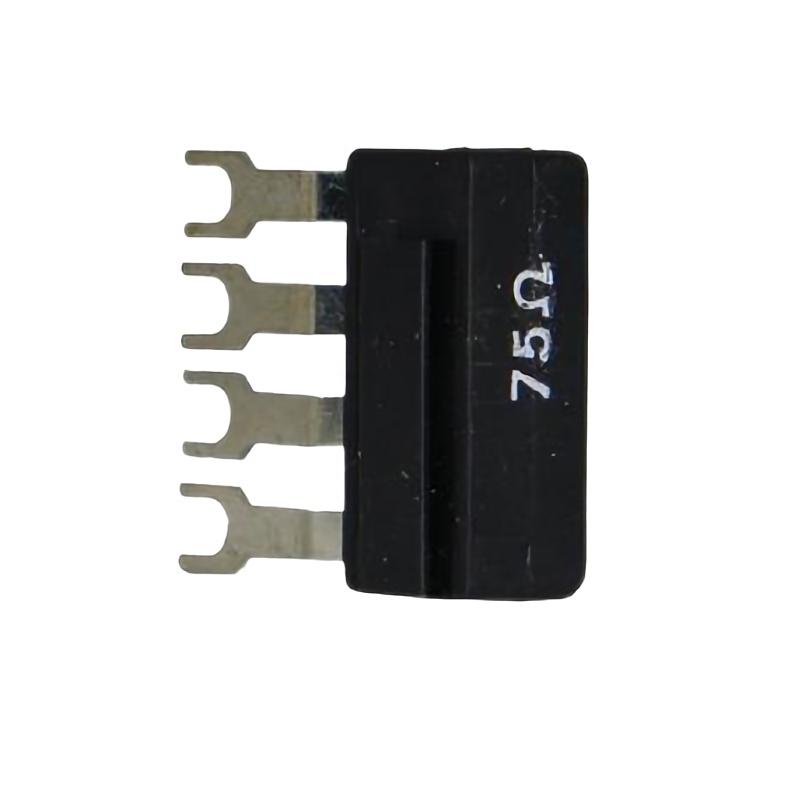

The GE IC660BLM508 is a bus terminator module designed for GE Fanuc Series 90-30 and VersaMax industrial automation systems. It ensures proper termination of the communication bus, minimizing signal reflection and maintaining reliable data transmission across the PLC network.
This module is essential for maintaining communication integrity in industrial control and automation systems.
General Information
Part Number: IC660BLM508
Manufacturer: GE Automation & Controls
Brand: GE
Country of Origin: United States
Series: GE Fanuc Series 90-30 / VersaMax
Type: Bus Terminator Module
Mounting: DIN rail or rack installation within industrial control cabinets
Technology: Passive termination with precision resistors for signal integrity
Power Specifications
Supply Voltage: Not applicable (passive device)
Power Consumption: Negligible
Protection: Ensures network stability; protects against signal reflection
Indicators: None
Communication & Interface
System Interface: Connects to PLC communication bus for proper termination
Function: Prevents signal reflection and data errors on backplane or fieldbus
Diagnostics: Network integrity monitored by the PLC system
Configuration: Simple plug-in installation at bus endpoints
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation inside industrial control cabinets
Vibration Resistance: Designed for standard industrial automation environments
Dimensions & Weight
Dimensions (L × W × H): 224.4 × 88.9 × 100 mm
Weight: 0.018 kg
