Overview

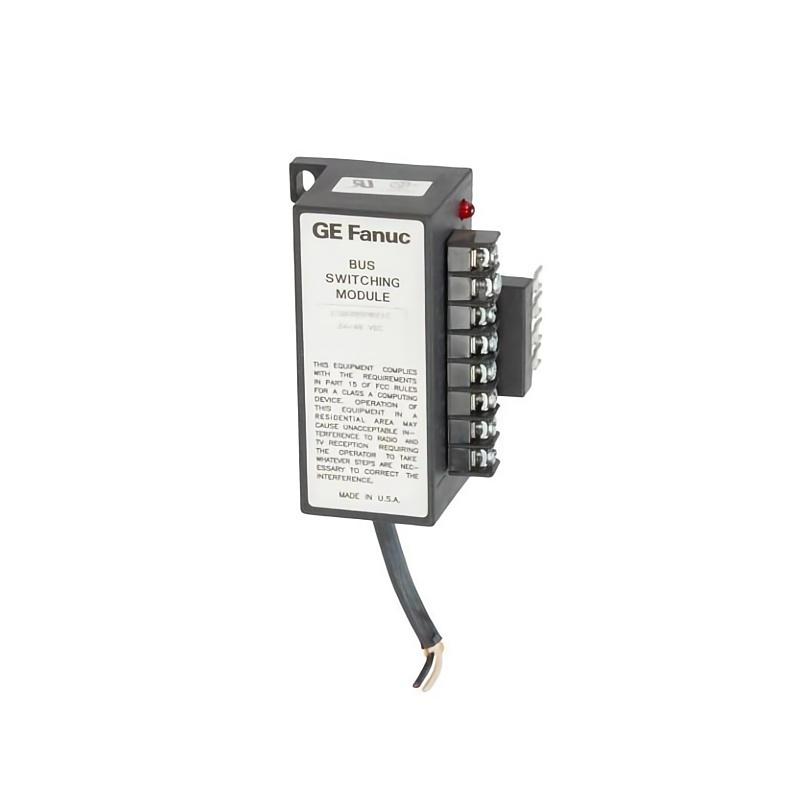

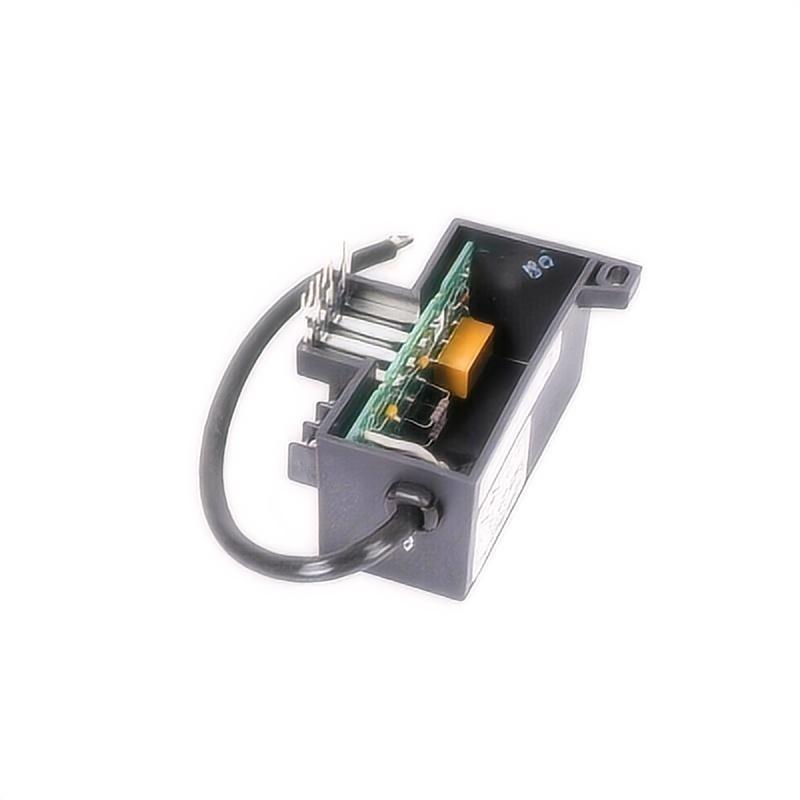

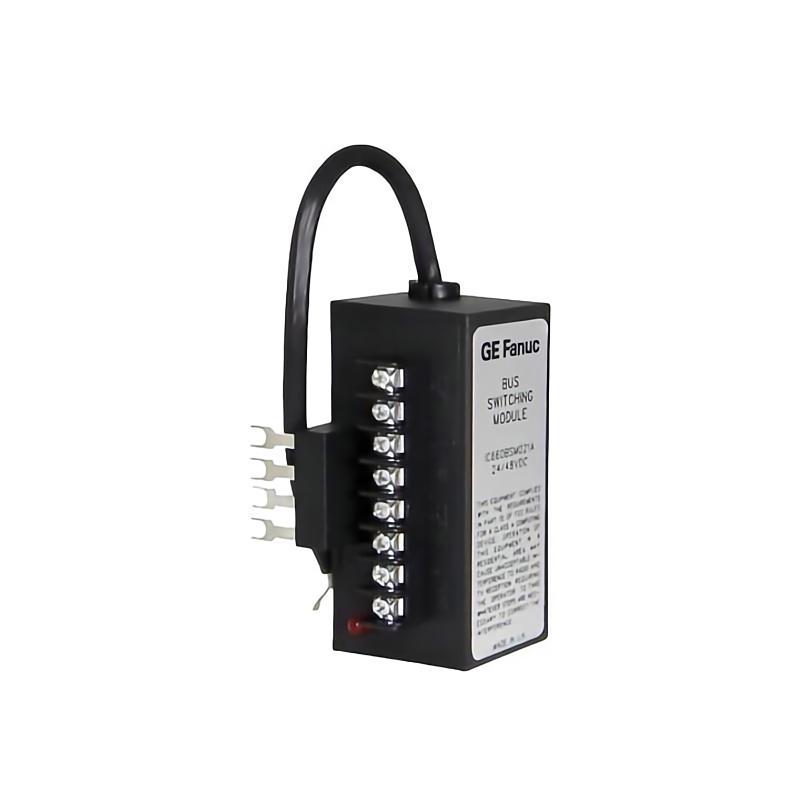

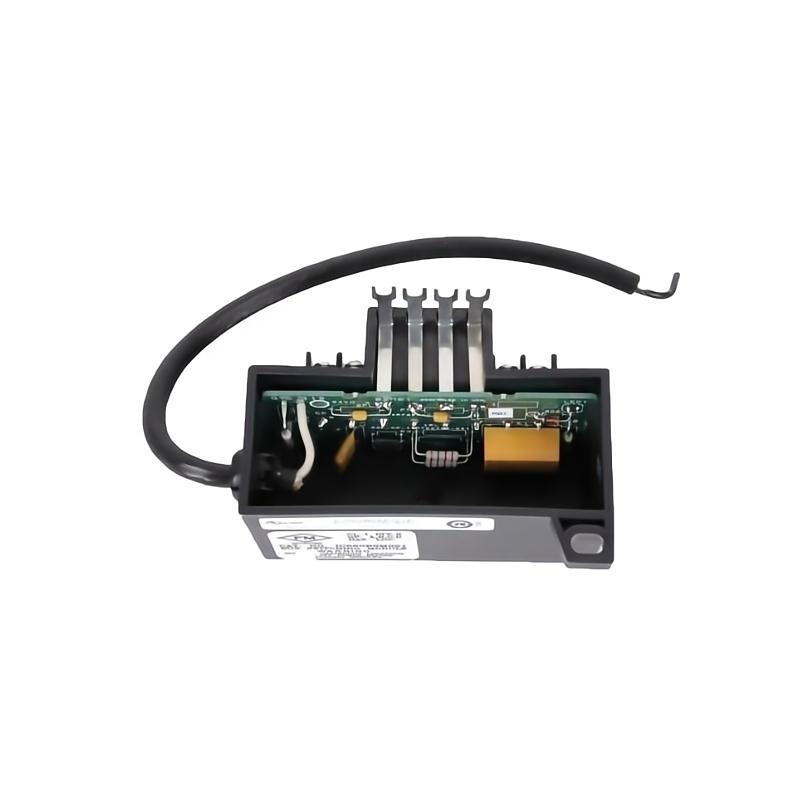

The GE IC660BSM021 is a bus switching module designed for GE Fanuc Series 90-30 and VersaMax industrial automation systems. It enables reliable switching and routing of communication signals within the PLC backplane, ensuring efficient data transmission and network integrity.
This module is ideal for industrial automation applications where robust and stable PLC communication is critical.
General Information
Part Number: IC660BSM021
Manufacturer: GE Automation & Controls
Brand: GE
Country of Origin: United States
Series: GE Fanuc Series 90-30 / VersaMax
Type: Bus Switching Module
Mounting: DIN rail or rack installation within industrial control cabinets
Technology: Passive and active signal switching with integrated diagnostics
Power Specifications
Supply Voltage: Powered via PLC backplane
Power Consumption: Minimal; typically ≤ 2 W
Protection: Built-in protection for signal integrity and noise suppression
Indicators: None on module; PLC system monitors bus status
Communication & Interface
System Interface: Connects directly to Series 90-30 or VersaMax PLC backplane
Function: Switches and routes communication signals between backplane modules
Diagnostics: Bus and signal integrity monitored via PLC system
Configuration: Plug-and-play installation at designated backplane positions
Status Monitoring: Managed by PLC system software
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial control cabinet installation
Vibration Resistance: Designed for industrial automation environments
Dimensions & Weight
Dimensions (L × W × H): 224.4 × 88.9 × 100 mm
Weight: 0.15 kg
