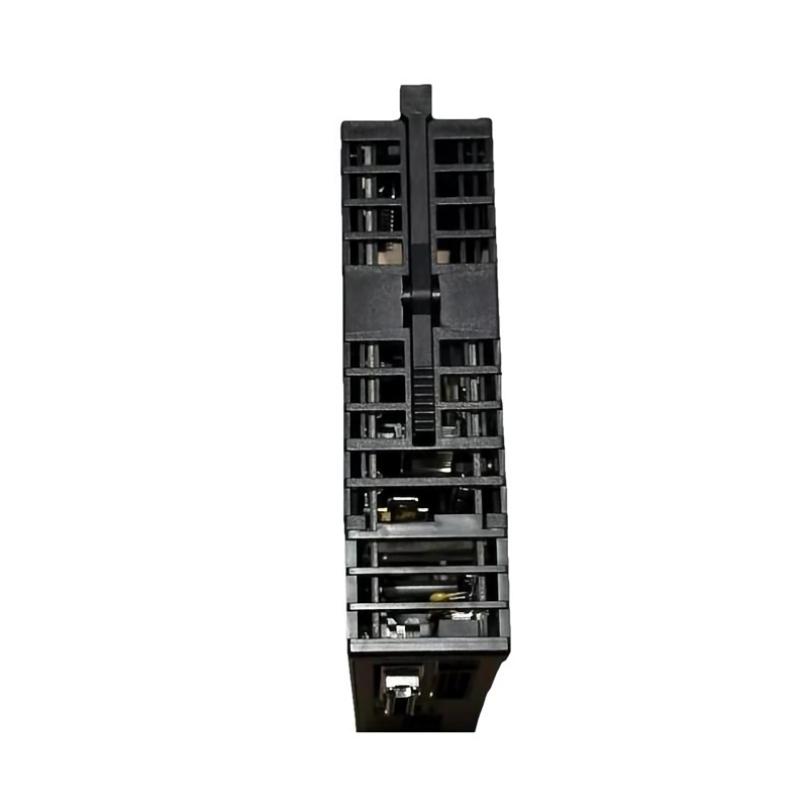

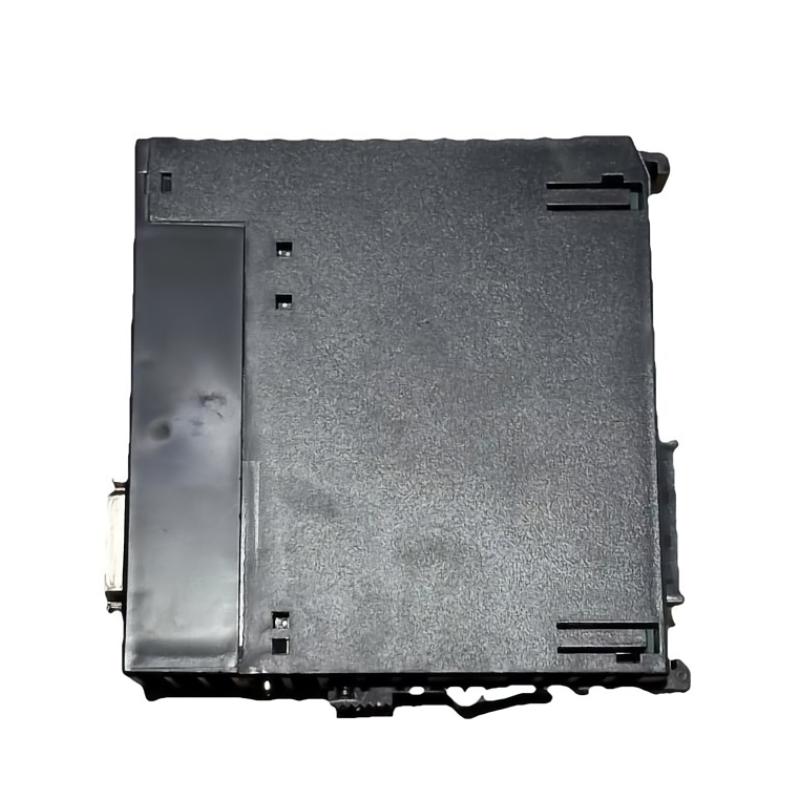

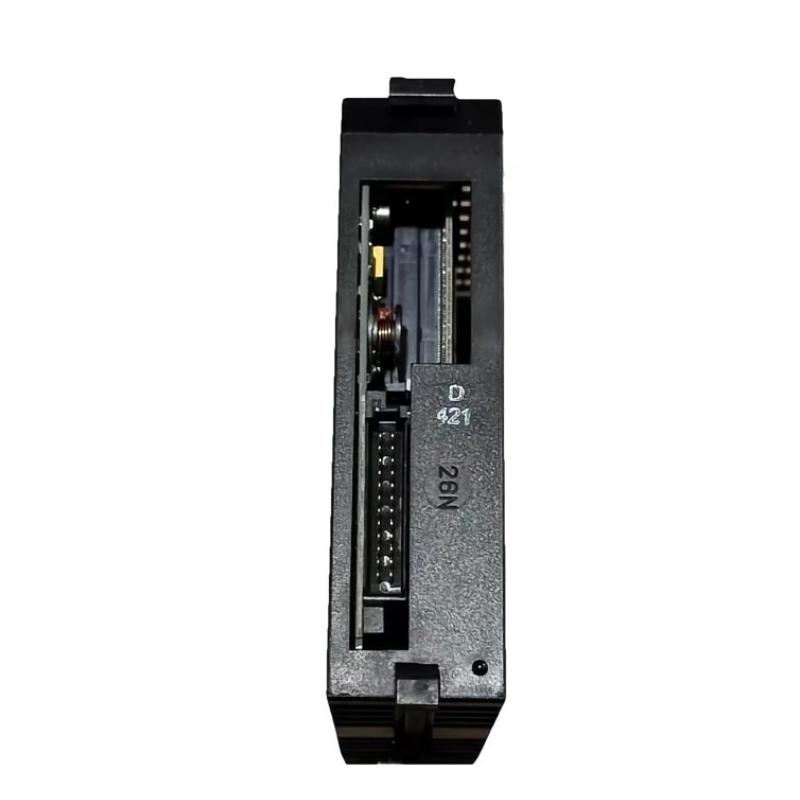

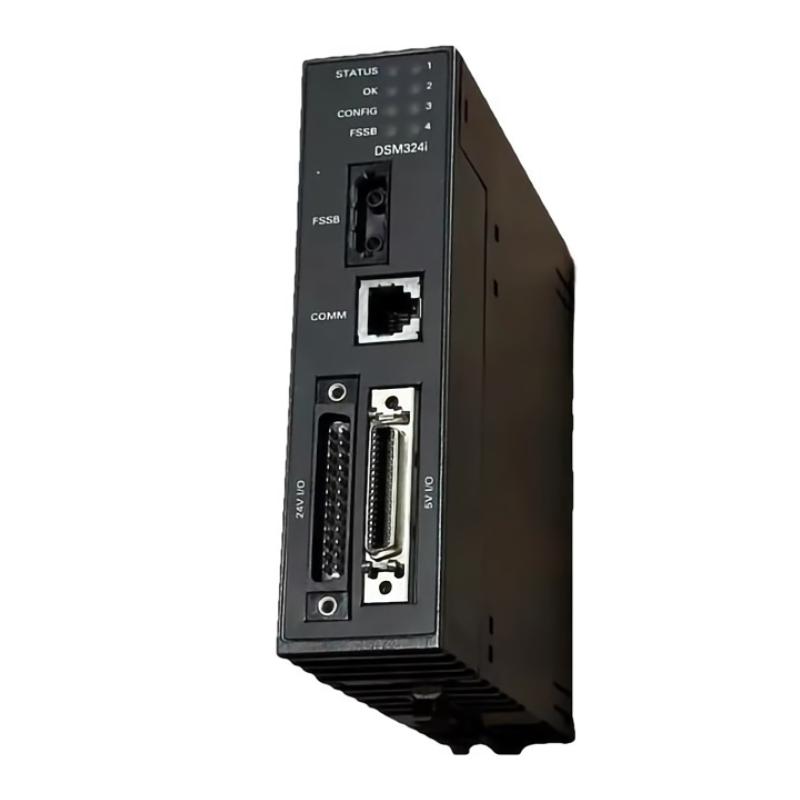

GE IC693DSM324 Axis Motion Control Module

Overview

The GE IC693DSM324 is an axis motion control module designed for GE Fanuc Series 90-30 PLC systems. It provides precise control for industrial motion applications, enabling accurate positioning, speed regulation, and synchronization of a single axis.

General Information

Part Number: IC693DSM324

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: IC693 / Motion Control Module

Type: Axis Motion Control Module for Series 90-30 PLC

Mounting: Rack or panel-mounted inside industrial control cabinets

Technology: High-performance motion control with integrated feedback and diagnostic capabilities

Power Specifications

Supply Voltage: 5 V DC / 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via PLC backplane

Protection: Overvoltage and surge protection

Indicators: LEDs for power, motion status, and fault detection

Communication & Interface

Interface Ports: Connects to PLC and motor drive modules

Data Transfer: High-speed motion commands and feedback processing

Diagnostics: Onboard monitoring, fault detection, and status reporting

Operator Interface: LED indicators for power, motion, and fault

Reset Features: Supports hardware and software reset

I/O & Channels: Controls a single motion axis

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 63.5 × 132 × 40 mm

Weight: 0.3 kg
