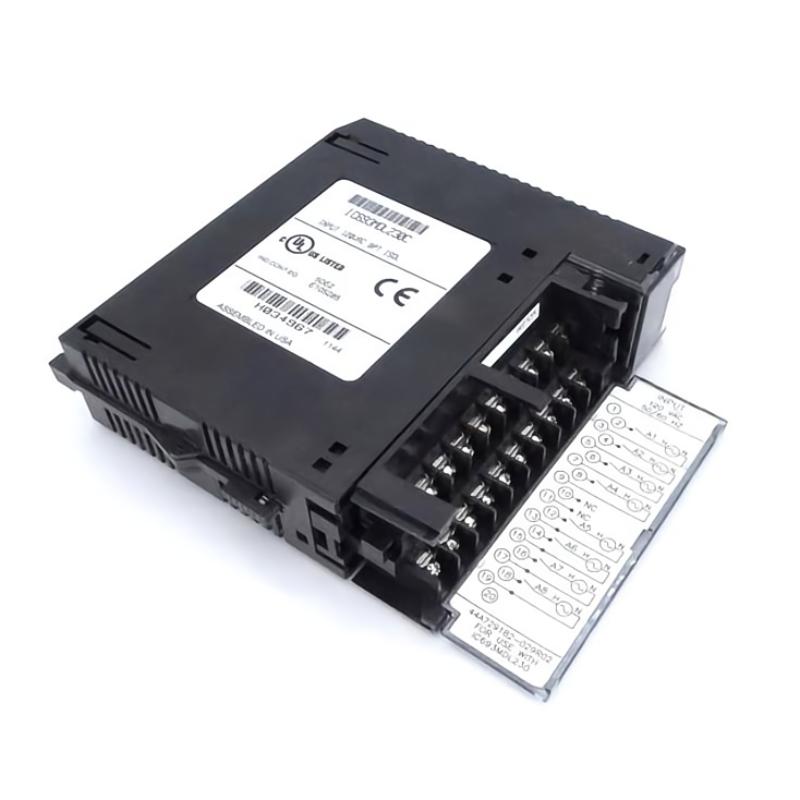

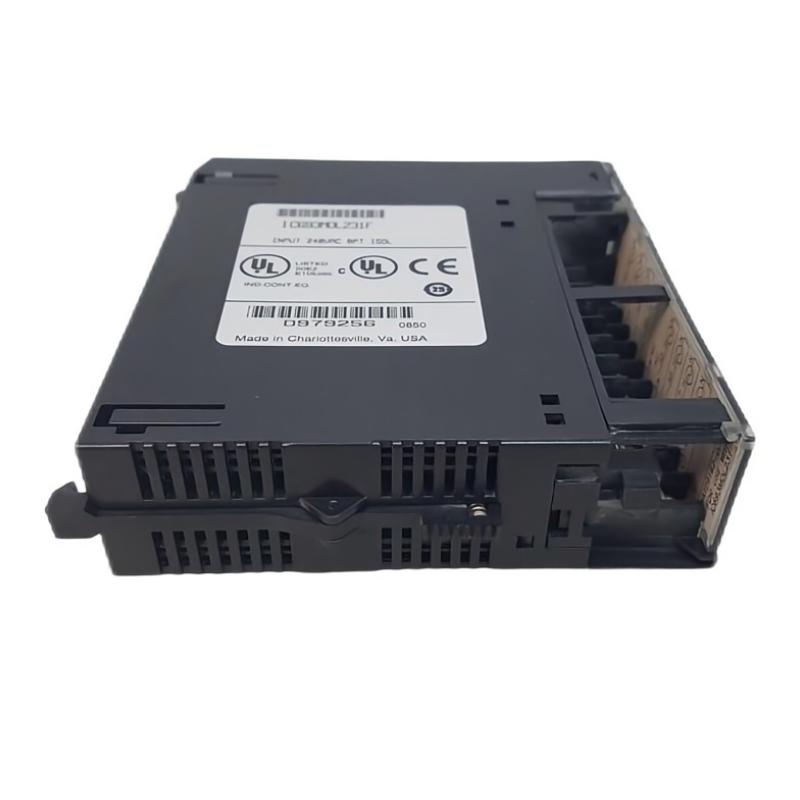

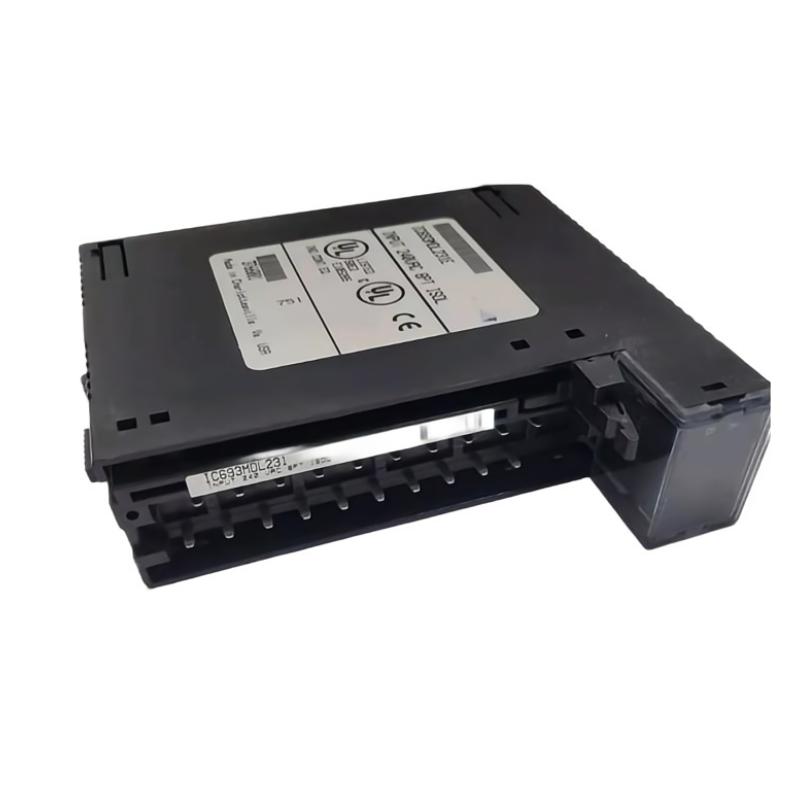

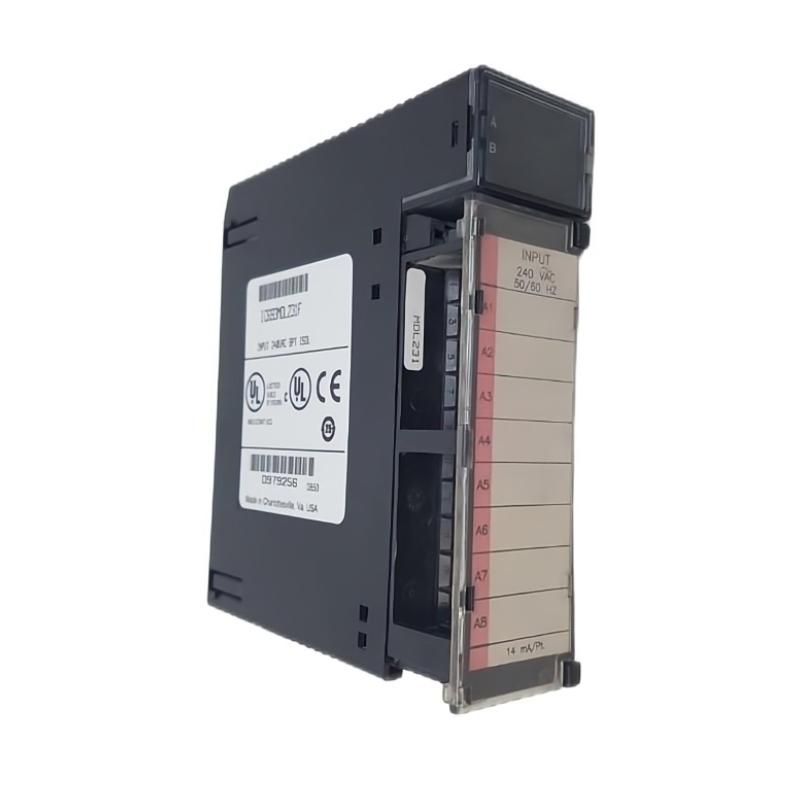

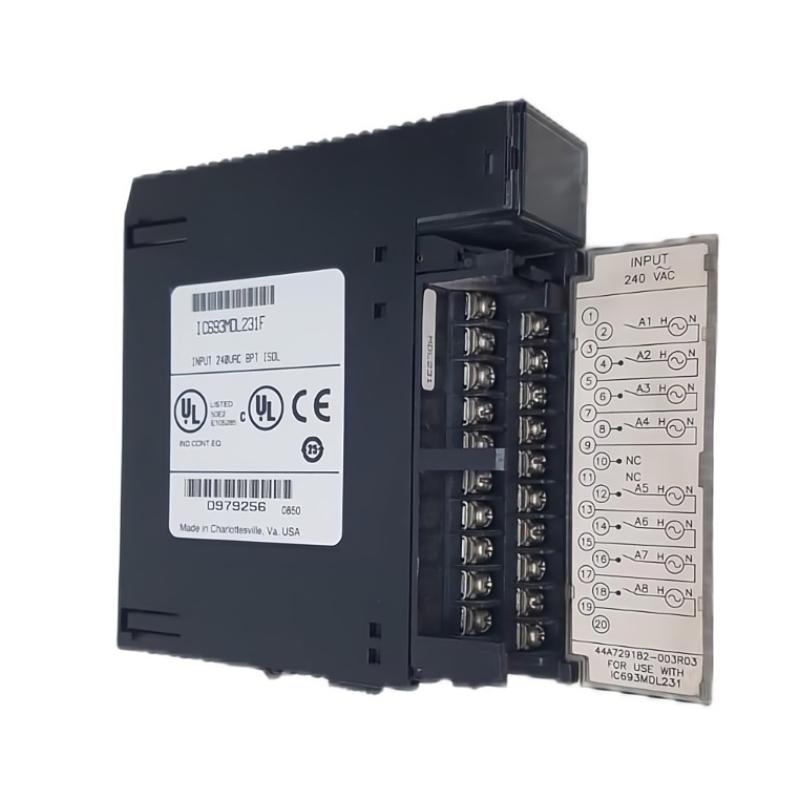

GE IC693MDL231 Isolation Input Module

Overview

The GE IC693MDL231 is an isolation input module designed for industrial automation systems. It provides safe and reliable signal acquisition by electrically isolating field inputs from the controller, protecting the system from voltage spikes, ground loops, and electrical noise while ensuring accurate and stable data collection.

General Information

Part Number: IC693MDL231

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: IC693

Type: Isolation Input Module

Mounting: DIN rail or control cabinet installation

Technology: Electrically isolated input channels, high-reliability industrial design, diagnostic support

Power Specifications

Supply Voltage: 5 V DC (logic level)

Power Consumption: ≤ 6 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for channel status and fault detection

Communication & Interface

Interface Type: Connects field devices to control system bus

Data Transmission: Isolated signal acquisition and reliable data transfer

Diagnostics: Channel-level monitoring, fault detection, and reporting

Operator Interface: Status LEDs

Reset Features: Soft and hardware reset supported

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 142 × 30 × 130 mm

Weight: ~ 0.25 kg
