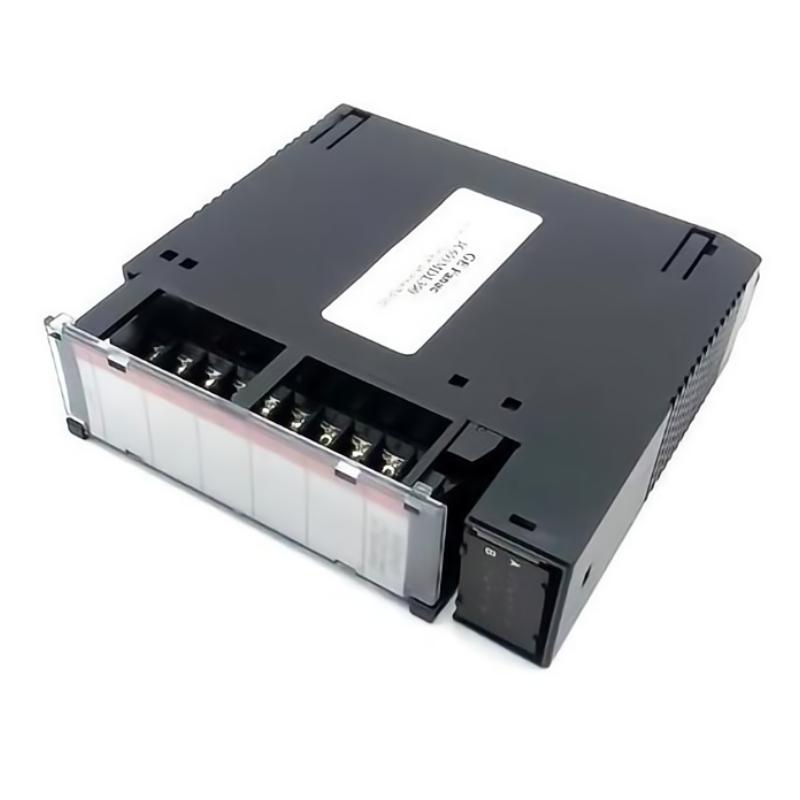

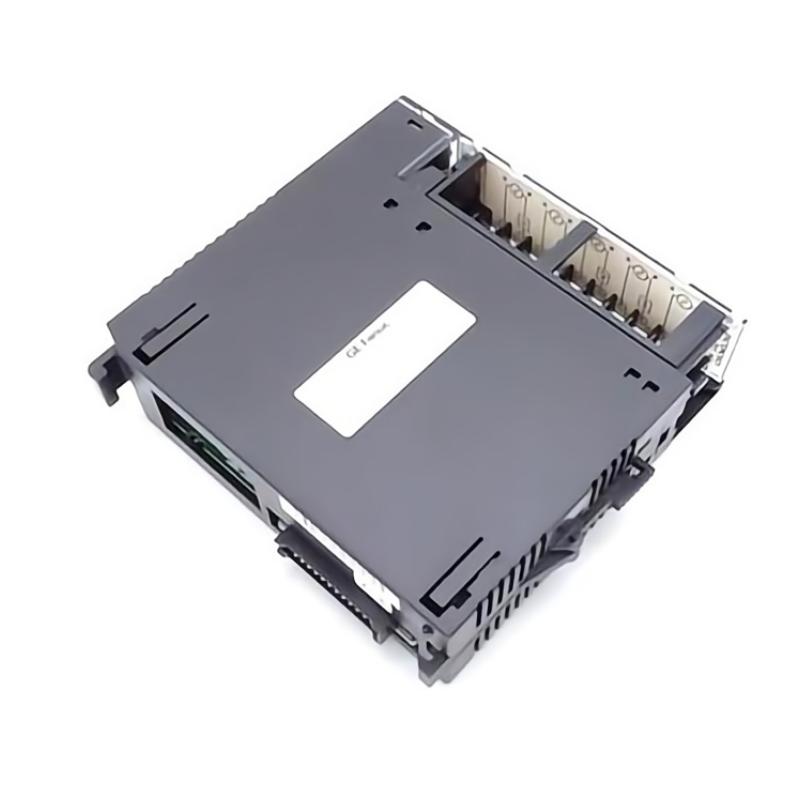

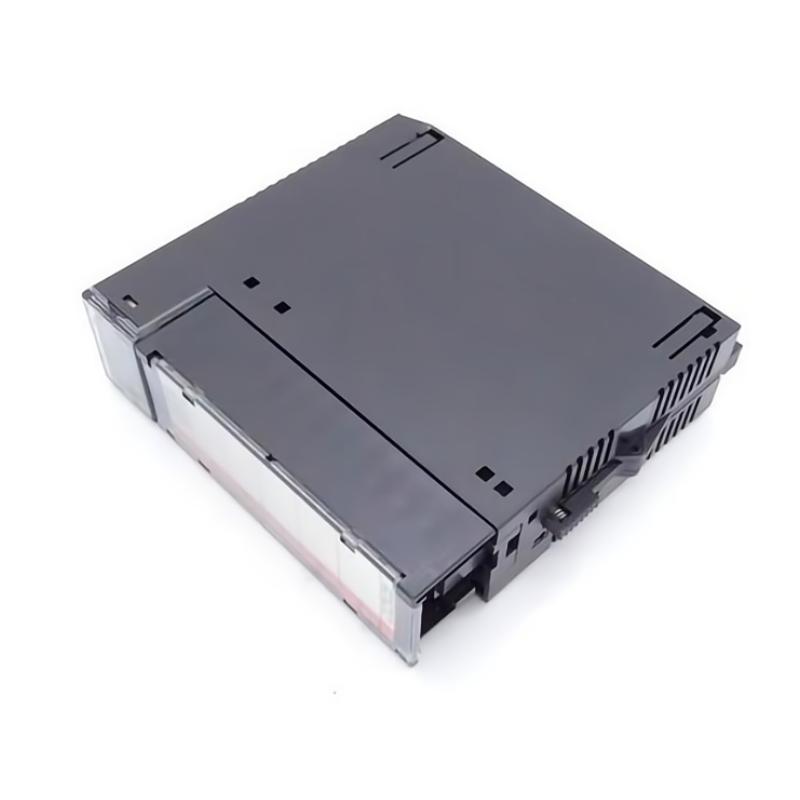

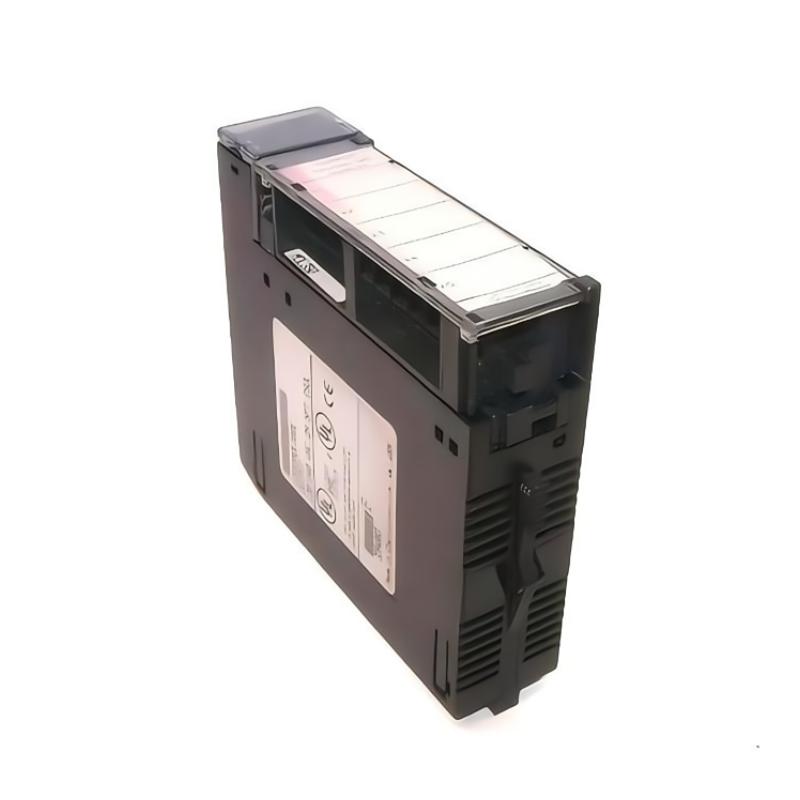

GE IC693MDL390 Isolation Output Module

Overview

The GE IC693MDL390 is an isolation output module designed for industrial automation and control systems. It provides electrically isolated output channels, ensuring safe and interference-free operation between the controller and connected field devices.

General Information

Part Number: IC693MDL390

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: Series 90-30

Type: Isolation Output Module

Mounting: DIN rail or panel-mounted installation within control cabinets

Technology: Electrically isolated output channels, modular design, fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered from system backplane

Protection: Short-circuit protection, surge protection, reverse-polarity protection

Indicators: LED indicators for channel status and fault

Communication & Interface

Interface Ports: Connects directly to GE Series 90-30 backplane

Diagnostics: Channel-level monitoring, isolation status, and fault reporting

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports controlled software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 130 × 40 × 110 mm

Weight: ~ 0.39 kg

Safe and Reliable Isolation, Ready for Immediate Integration!
