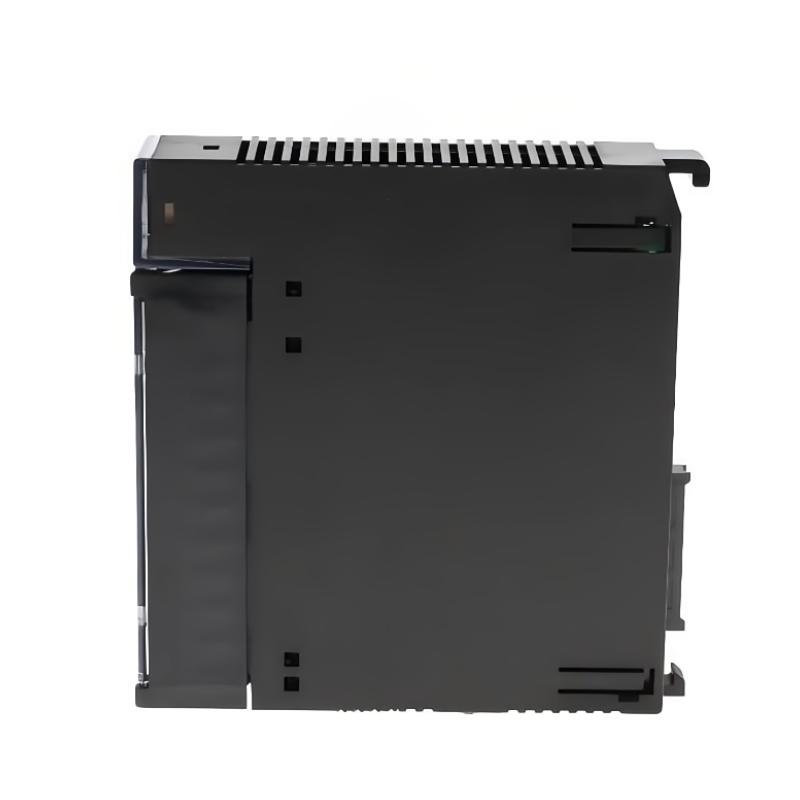

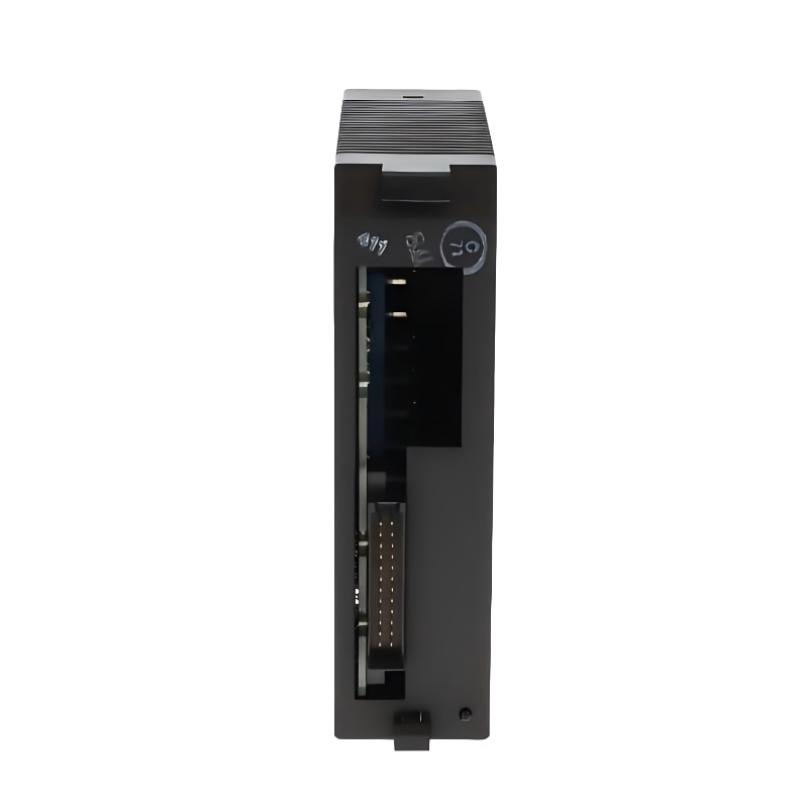

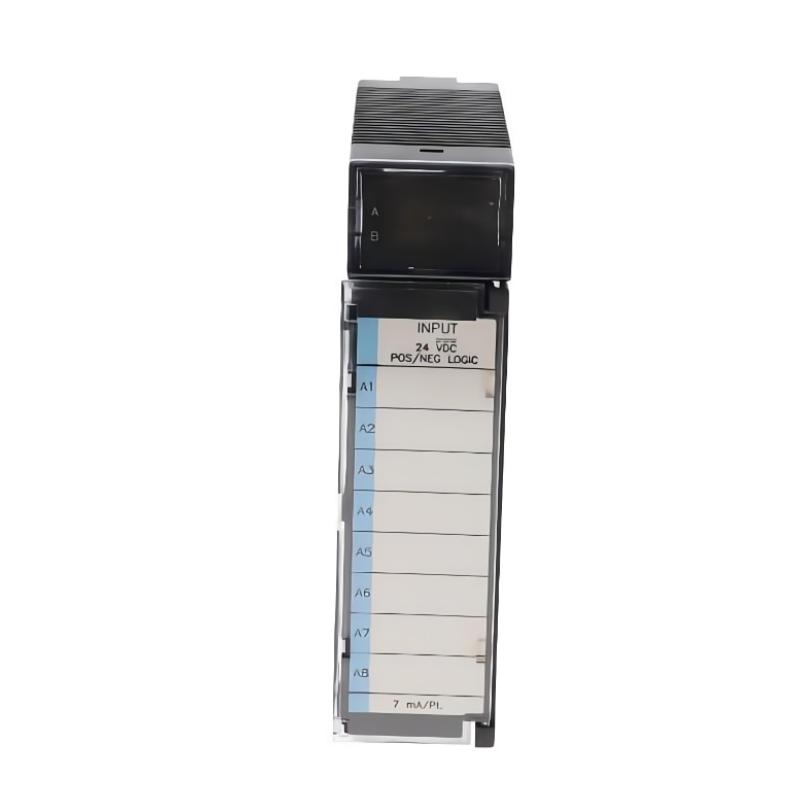

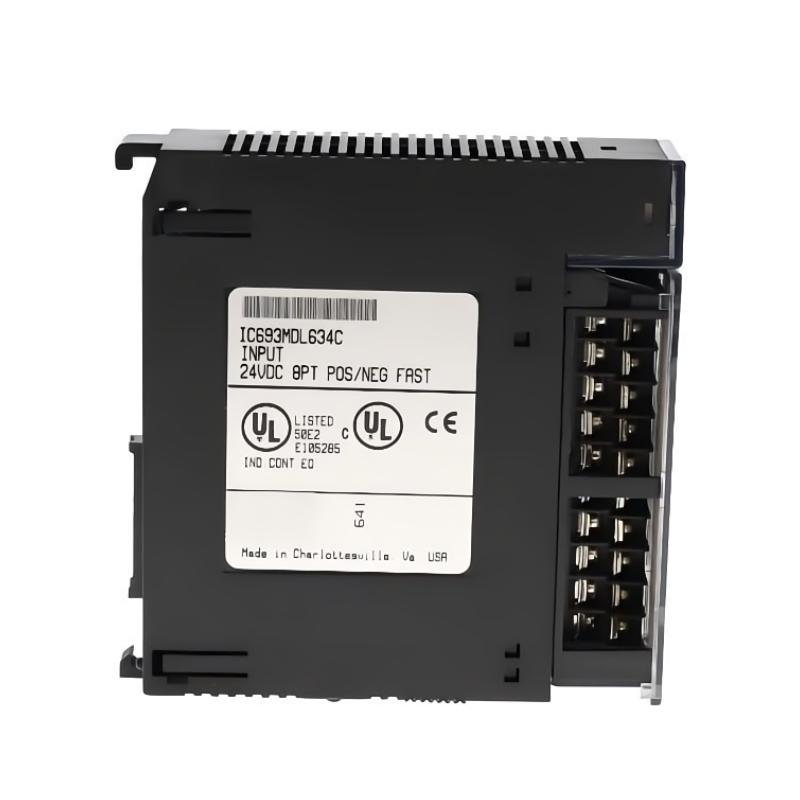

GE IC693MDL634 Positive/Negative Logic Input Module

Overview

The GE IC693MDL634 is a positive/negative logic input module designed for industrial automation and control systems. It provides accurate detection of digital input signals from field devices, supporting both sourcing (positive) and sinking (negative) logic for flexible application in various control environments.

General Information

Part Number: IC693MDL634

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: Series 90-30

Type: Positive/Negative Logic Input Module

Mounting: DIN rail or panel-mounted installation within control cabinets

Technology: Dual logic detection, modular design, channel-level fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5.5 W

Input: Powered from system backplane

Protection: Short-circuit protection, surge protection, reverse-polarity protection

Indicators: LED indicators for channel status and fault

Communication & Interface

Interface Ports: Connects directly to GE Series 90-30 backplane

Diagnostics: Channel-level monitoring, fault detection, and reporting

Operator Interface: LEDs for operational and fault status

Reset Features: Supports controlled software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 130 × 40 × 100 mm

Weight: ~ 0.272 kg

Reliable Digital Input Detection, Perfect for Flexible System Control!
