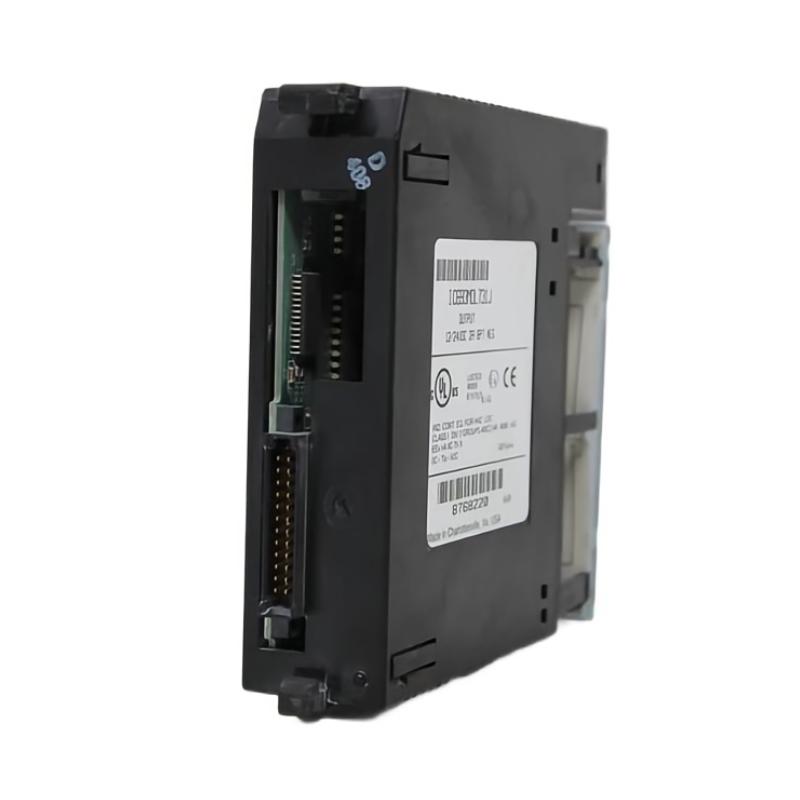

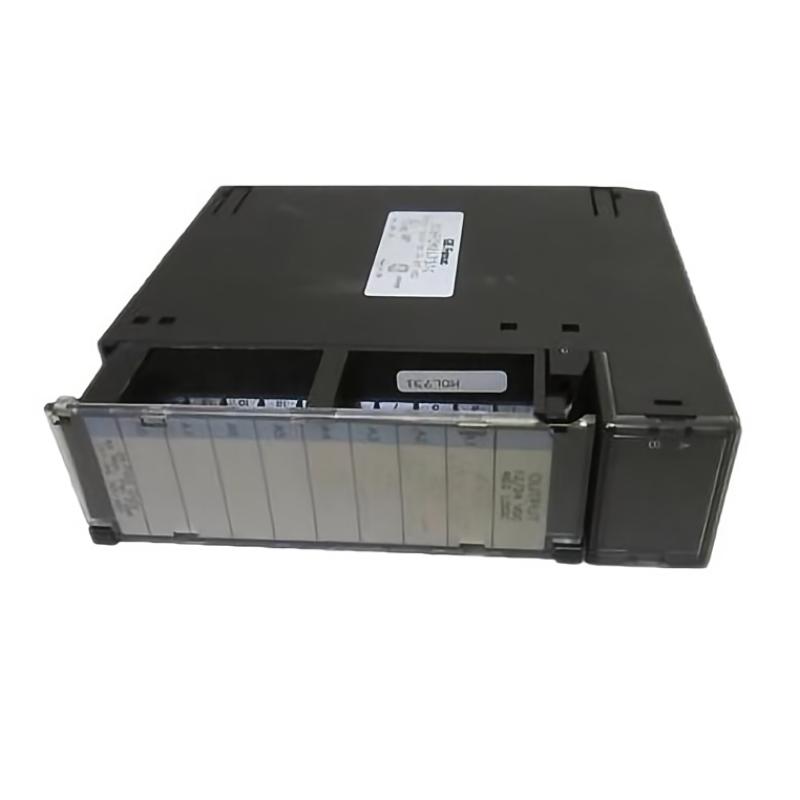

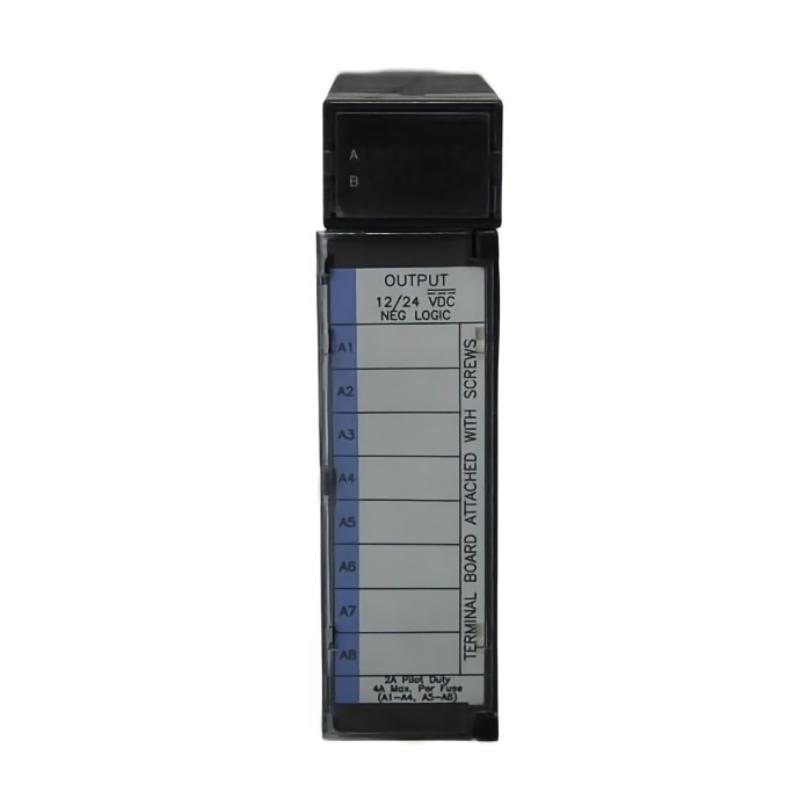

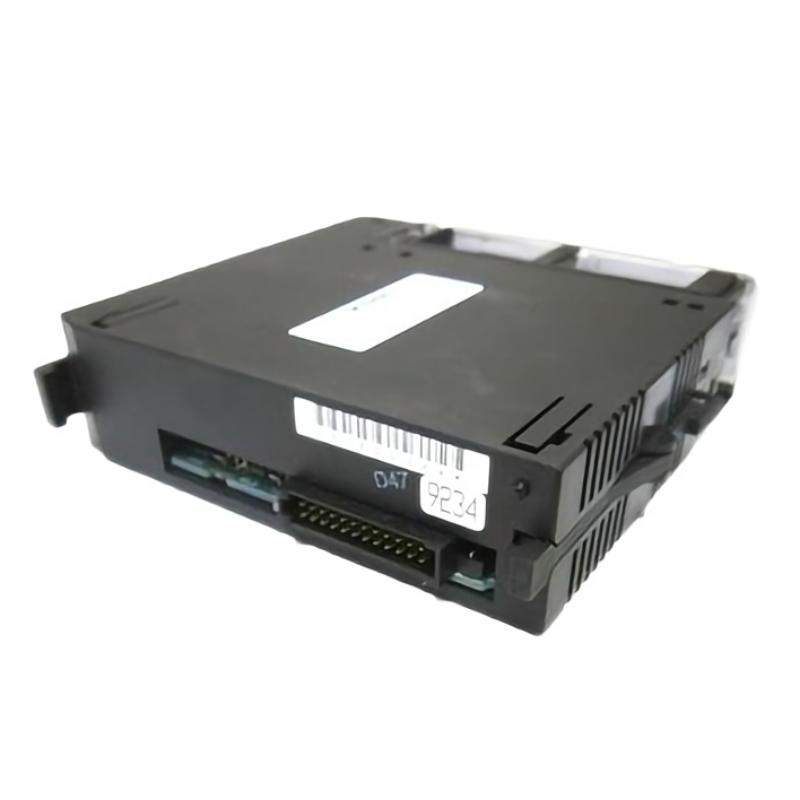

GE IC693MDL731 Positive/Negative Logic Output Module

Overview

The GE IC693MDL731 is a digital output module for Series 90-30 PLC systems. It supports both positive and negative logic signals, enabling reliable control of field devices such as actuators, relays, and indicators in industrial automation and process control applications.

General Information

Part Number: IC693MDL731

Manufacturer / Brand: GE

Country of Origin: USA

Series: Series 90-30 / PLC I/O Modules

Type: Digital Output Module

Logic: Supports positive and negative logic

Mounting: DIN rail or panel installation within control chassis

Technology: Industrial-grade digital output module with integrated diagnostics and fault detection

Power Specifications

Supply Voltage: 5–24 V DC (depending on configuration)

Power Consumption: ≤ 4 W

Input: Powered via backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for channel status and fault

Communication & Interface

Bus Interface: Series 90-30 PLC backplane

Output Channels: Digital outputs for field devices

Diagnostics: Channel monitoring, fault detection, and status reporting

Operator Interface: LED indicators

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Vibration & Shock: Designed for industrial environments

Dimensions & Weight

Dimensions (L × W × H): 150 × 100 × 70 mm

Weight: ~ 0.4 kg
