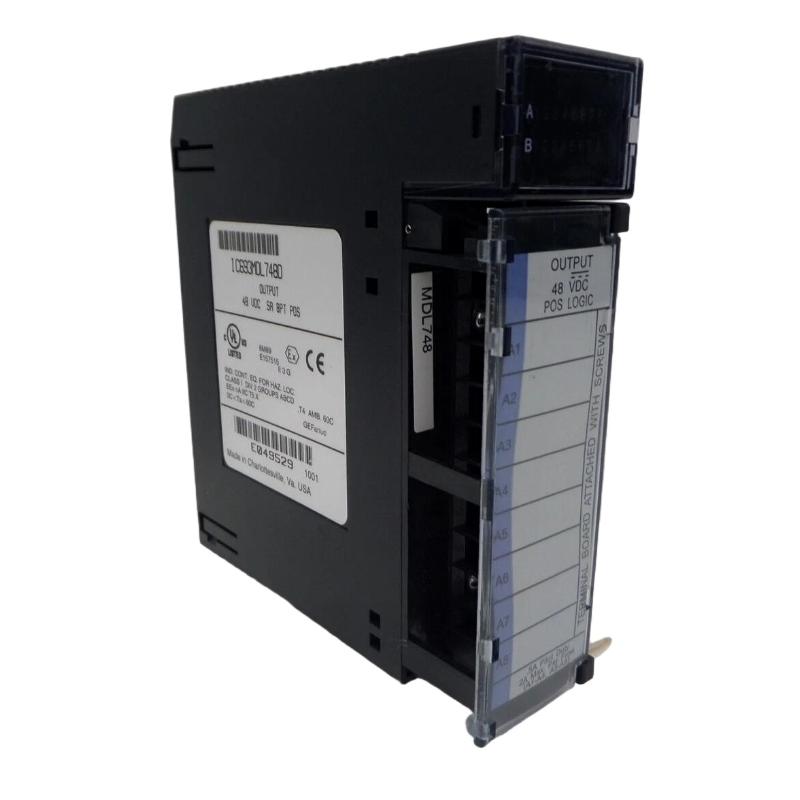

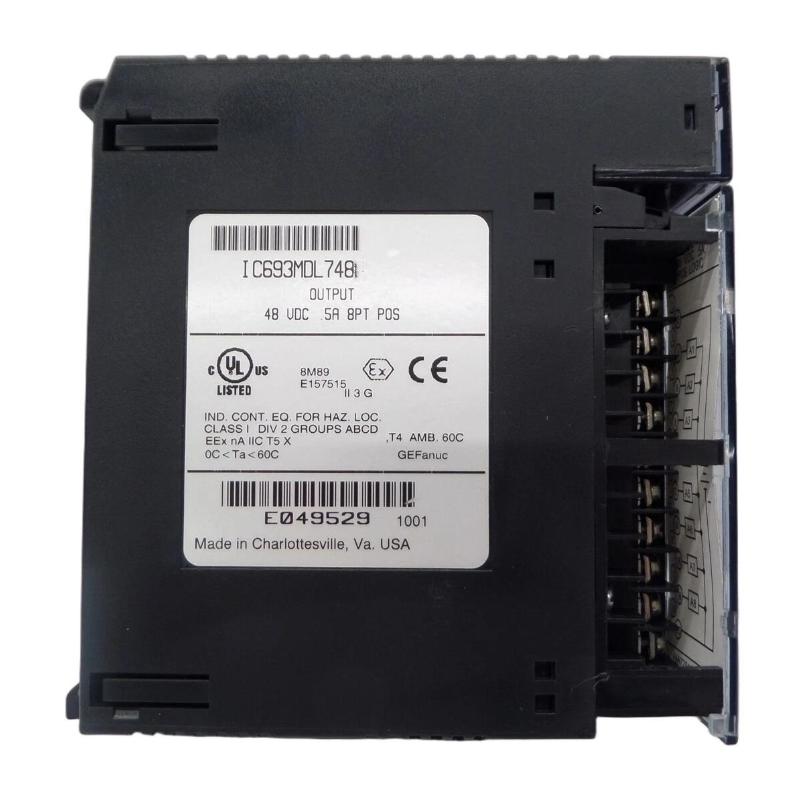

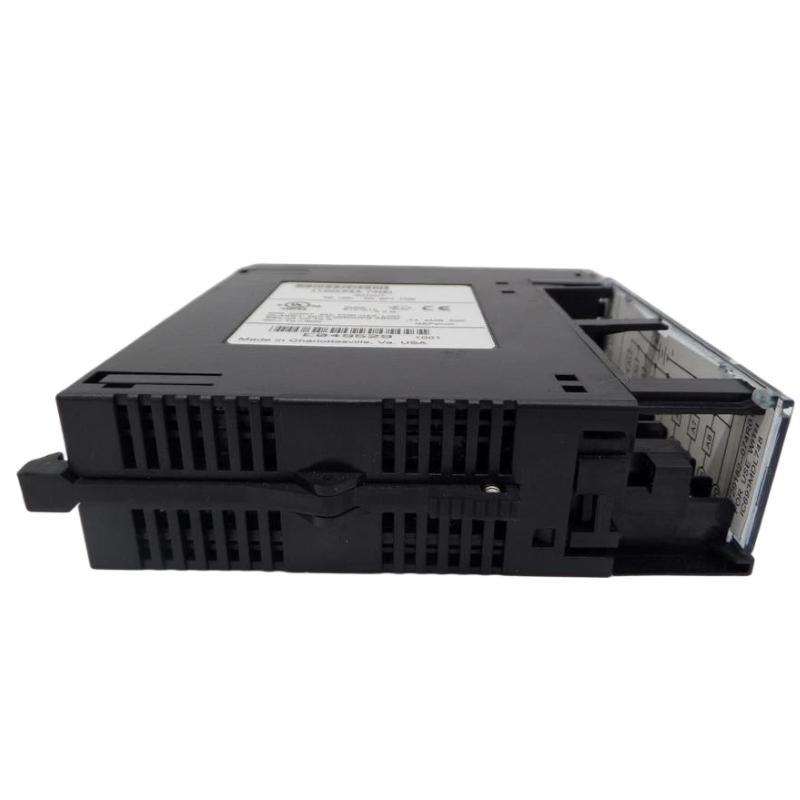

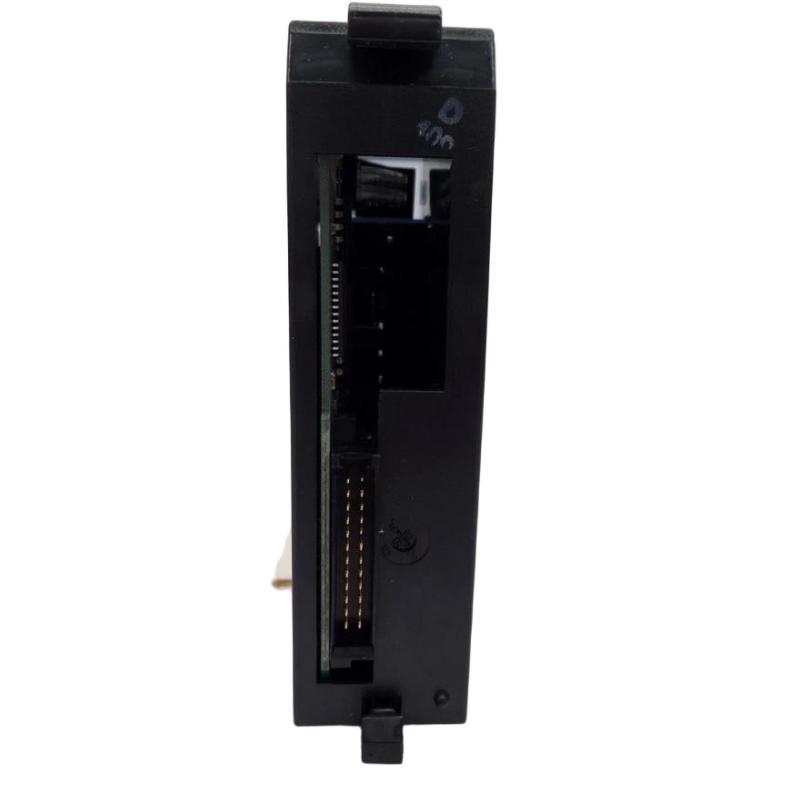

GE IC693MDL748 Positive/Negative Logic Output Module

Overview

The GE IC693MDL748 is a compact positive/negative logic output module designed for GE automation and control systems. It delivers reliable digital outputs to field devices, ensuring safe and efficient operation in industrial environments.

General Information

Part Number: IC693MDL748

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: IC693 (Output Module)

Type: Positive/Negative Logic Output Module

Mounting: DIN rail or panel installation within control cabinets

Technology: Digital output module, supports sourcing and sinking logic, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Dependent on connected load

Input: Powered through system backplane

Protection: Short-circuit and overload protection

Indicators: LEDs for status and fault detection

Communication & Interface

Interface Type: Digital output interface for field devices

Data Role: Provides controlled output signals to external actuators or relays

Diagnostics: Output channel monitoring, fault detection

Operator Interface: LED indicators for status and errors

Reset Features: Supports software and hardware reset

Relay Channels: Multiple digital outputs (configurable per system)

External Load Support: Yes, for connected devices

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20, suitable for industrial control cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 118 × 33 × 89 mm

Weight: 0.3 kg
