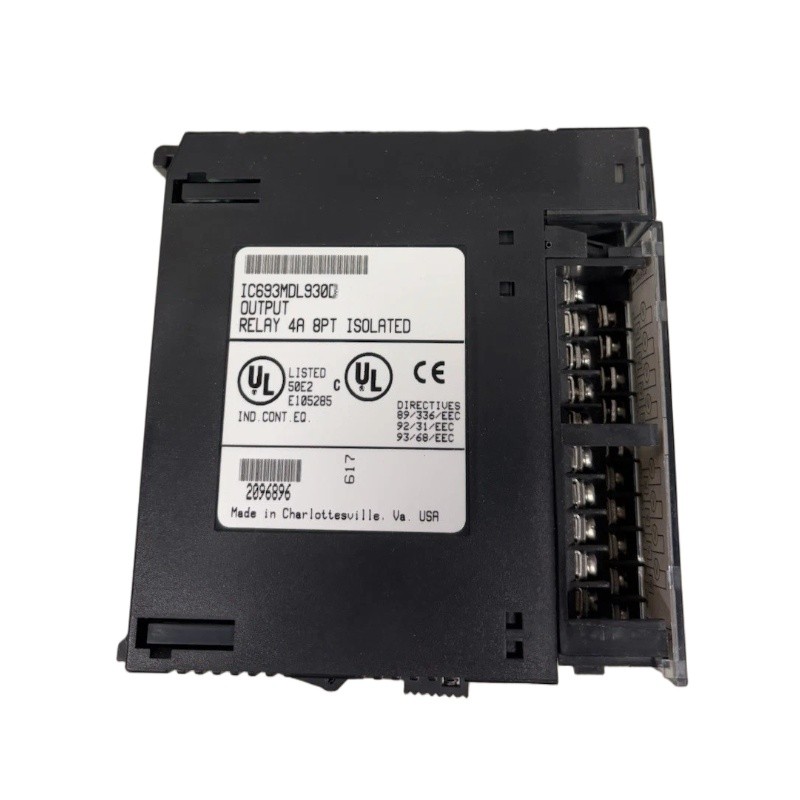

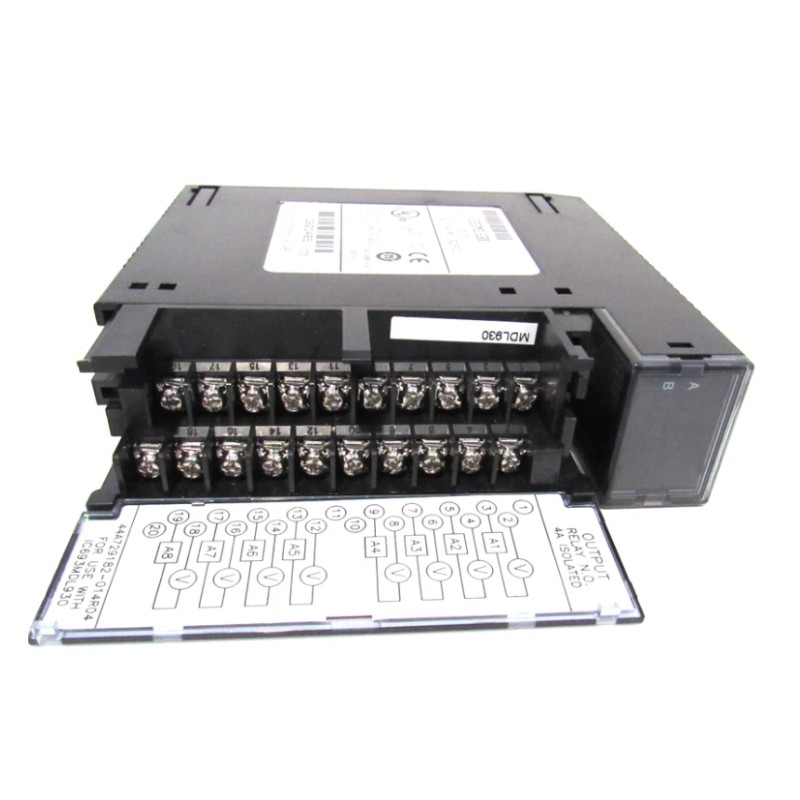

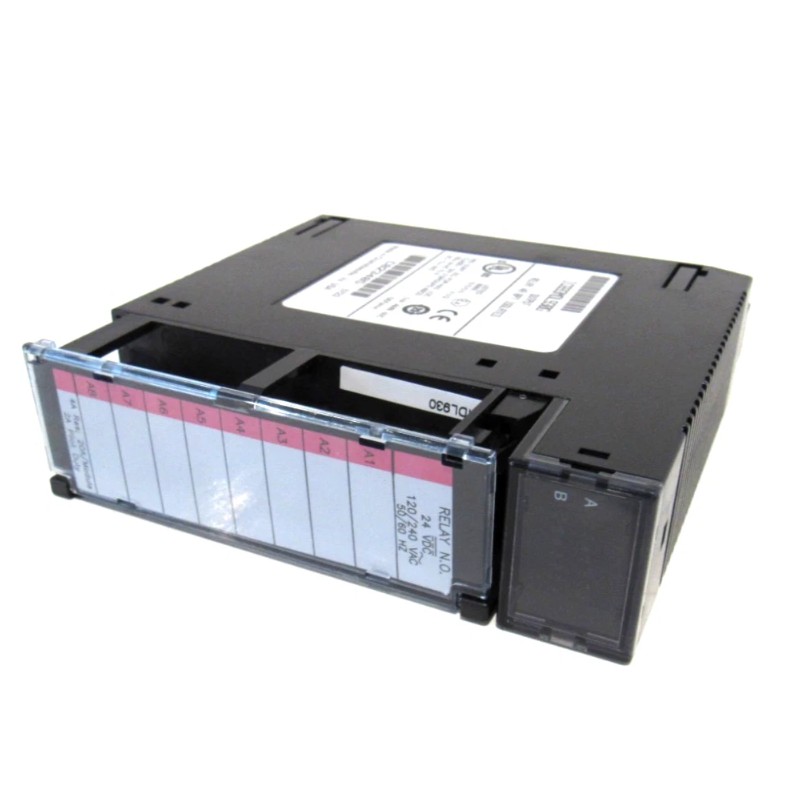

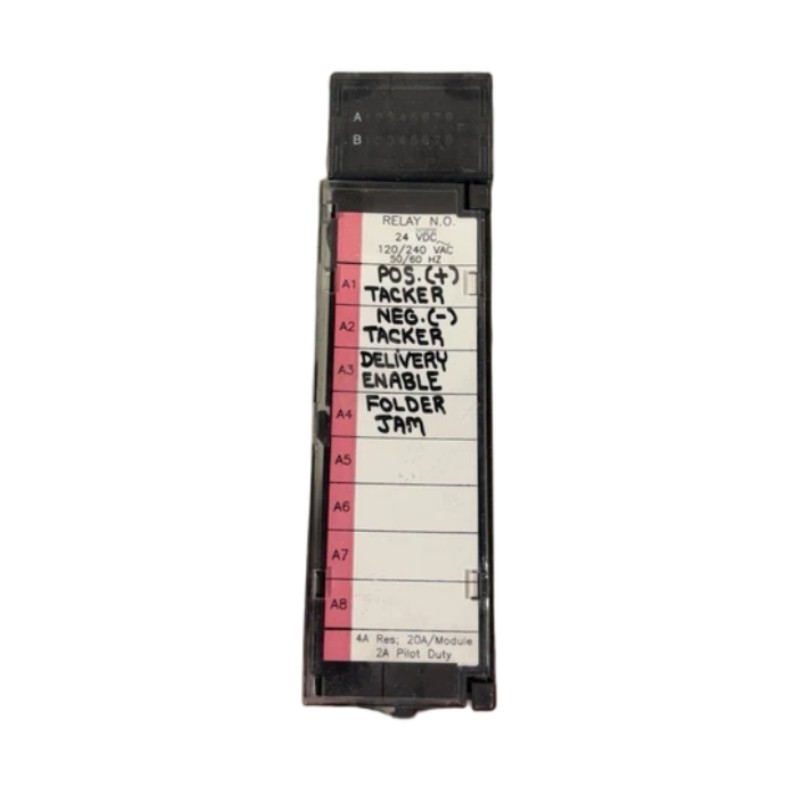

GE IC693MDL930 Relay Output Module

Overview
The GE IC693MDL930 is a relay output module designed for use in GE’s Series 90-30 and PACSystems RX3i PLC systems. It provides reliable switching of discrete output devices, supporting high-speed and high-load industrial automation applications. The module ensures safe, efficient control and seamless integration with GE PLC systems.

General Information

Part Number: IC693MDL930

Manufacturer: General Electric (GE)

Brand / Country of Origin: GE / USA

Series: Series 90-30 / PACSystems RX3i

Type: Relay Output Module

Technology: Electromechanical relay outputs for controlling discrete devices

Mounting: DIN-rail or rack-mounted installation within PLC chassis

Indicators: LED status indicators for each output channel

Power Specifications

Supply Voltage: 24 V DC (logic power)

Current Rating: Output relays rated for higher load capacities compared to standard relay modules

Power Consumption: ≤ 5 W

Protection: Short-circuit and overload protection handled via module and PLC logic

Communication & Interface

Bus Interface: Connects directly to Series 90-30 backplane or RX3i rack

Diagnostics: Monitored via PLC for open/short circuits and channel status

Operator Interface: LEDs indicate output activity; diagnostics available via PLC software

Reset Features: Supports module reset via software or PLC logic

Environmental

Operating Temperature: 0 to +70 °C

Humidity: Up to 95% RH, non-condensing

Vibration & Shock: Designed for industrial automation environments

Protection Rating: IP20 when installed inside an industrial cabinet

Dimensions & Weight

Dimensions (L × W × H): 89 × 107 × 188 mm

Weight: 0.45 kg
