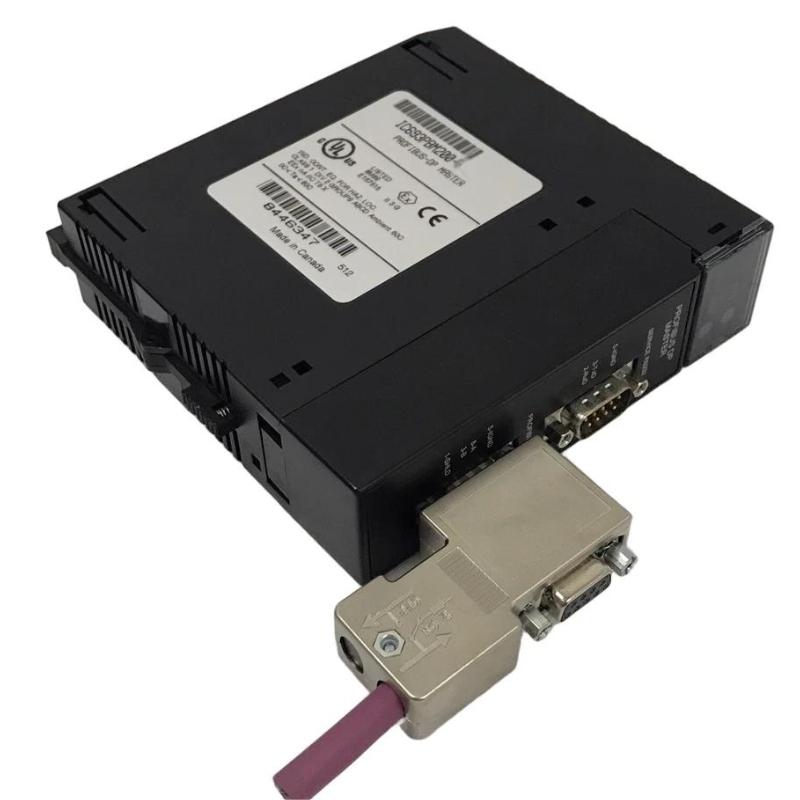

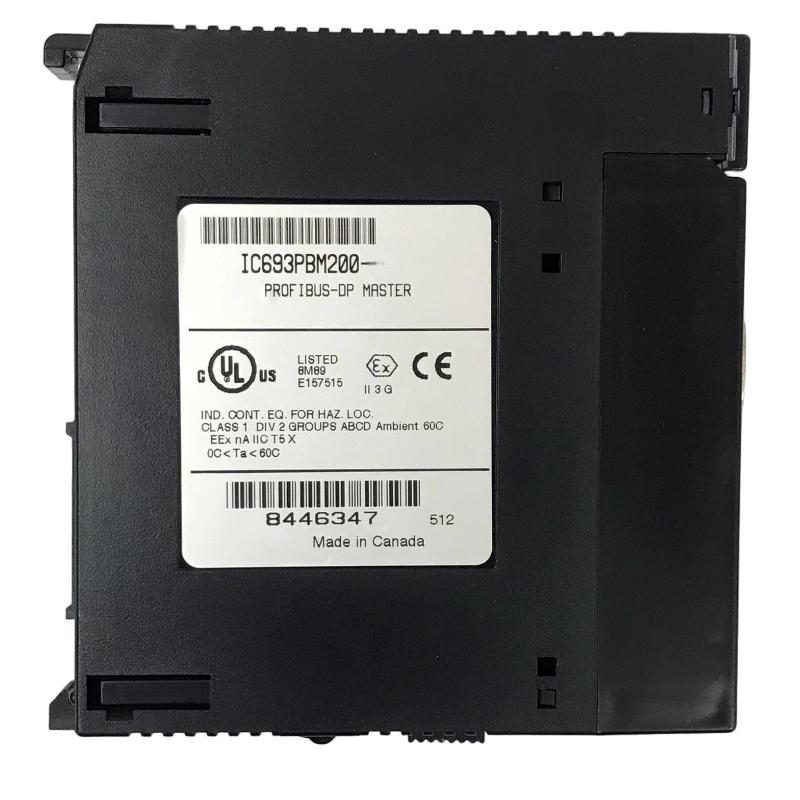

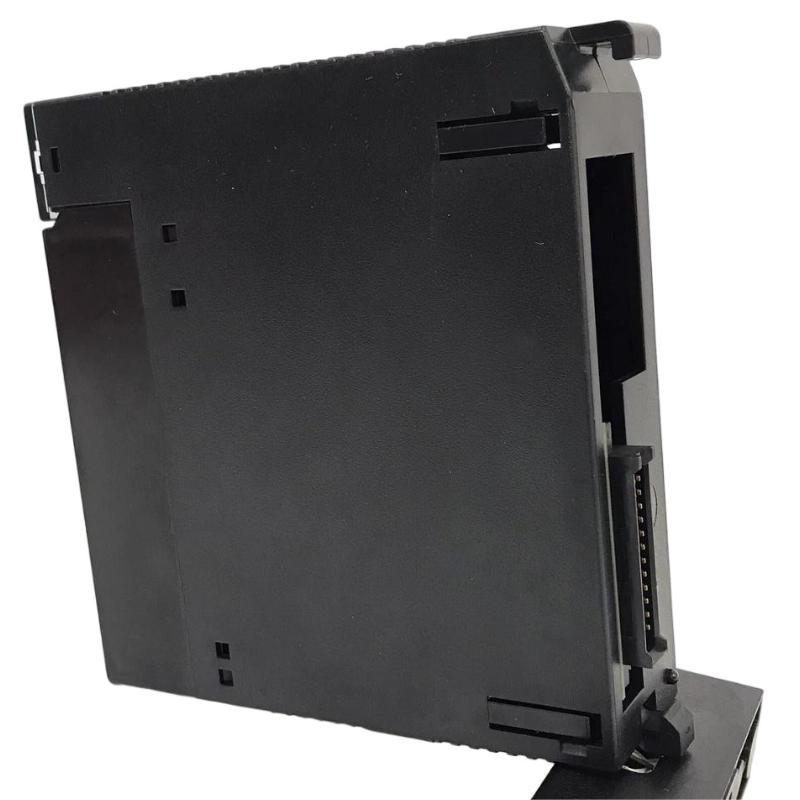

GE IC693PBM200 Profibus DP Master Module

Overview
The GE IC693PBM200 is a Profibus DP Master Module designed for GE’s Series 90-30 and PACSystems RX3i PLC systems. It allows the PLC to act as a Profibus master, enabling high-speed communication with Profibus DP field devices, supporting complex automation networks, and providing reliable control and monitoring capabilities.

General Information

Part Number: IC693PBM200

Manufacturer: General Electric (GE)

Brand / Country of Origin: GE / USA

Series: Series 90-30 / PACSystems RX3i

Type: Profibus DP Master Module

Technology: Industrial communication interface for Profibus DP networks

Mounting: Rack-mounted within PLC chassis

Indicators: LED status indicators for network activity and communication errors

Power Specifications

Supply Voltage: 5–24 V DC via PLC backplane

Power Consumption: ≤ 3 W

Protection: Overvoltage and short-circuit protection integrated

Communication & Interface

Interface Type: Profibus DP master interface

Protocol Support: Profibus DP-V0 / DP-V1

Diagnostics: Monitored via PLC for bus errors, device communication, and status

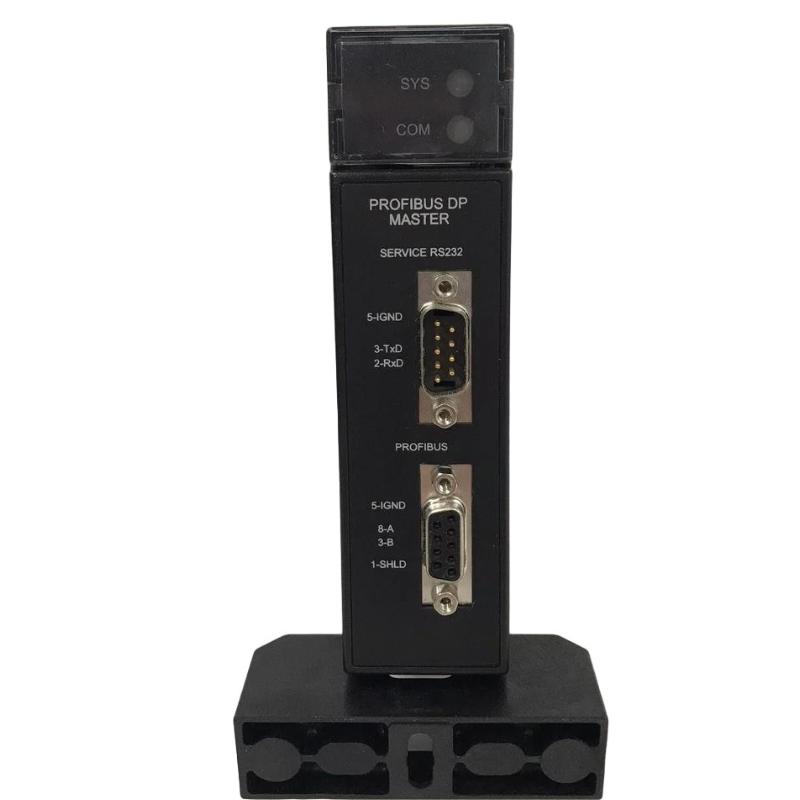

Operator Interface: LED indicators show network link, transmission, and fault conditions

Reset Features: Supports soft and hardware reset through PLC software

Environmental

Operating Temperature: 0 to +70 °C

Humidity: Up to 95% RH, non-condensing

Vibration & Shock: Suitable for industrial automation environments

Protection Rating: IP20 when installed inside an industrial cabinet

Dimensions & Weight

Dimensions (L × W × H): 140 × 140 × 35 mm

Weight: 0.2 kg

New In Stock – Connect Your Automation Network Efficiently!
