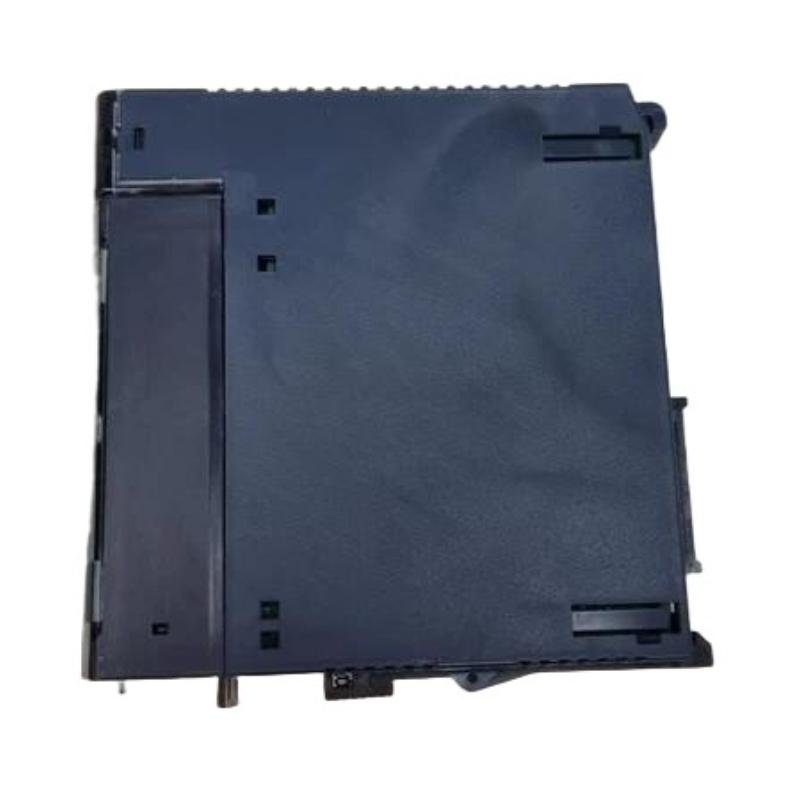

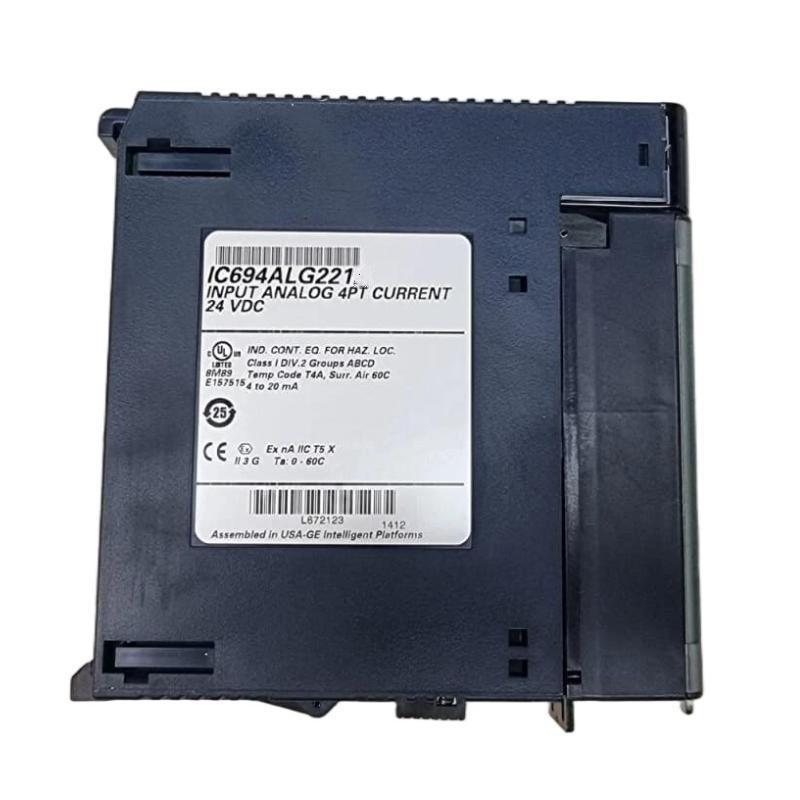

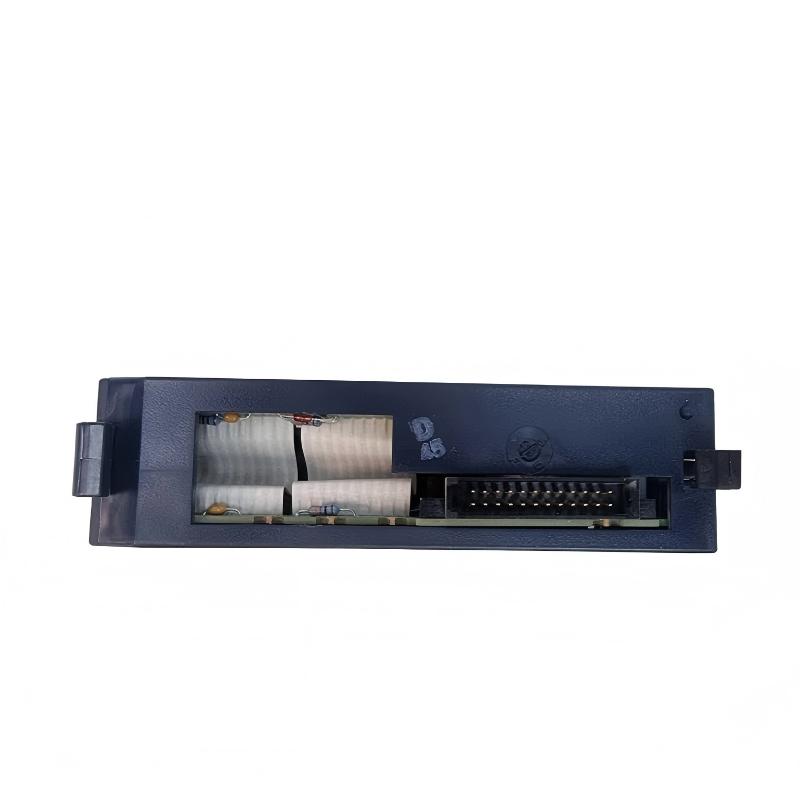

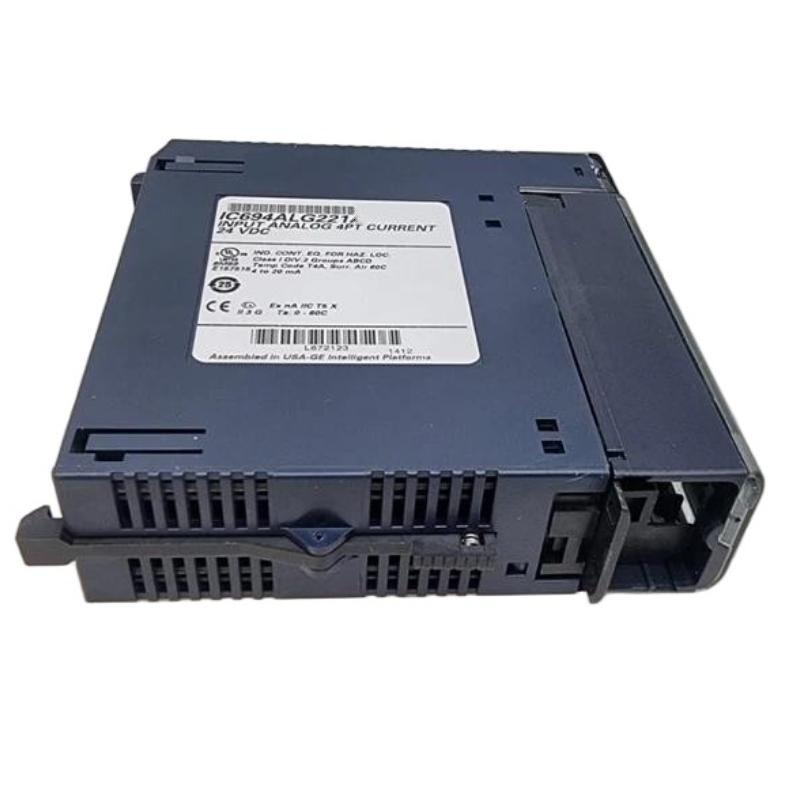

GE IC694ALG221 Analog Input Module

Overview

The GE IC694ALG221 is an analog input module designed for industrial automation and process control systems. It accurately captures analog signals from field devices, enabling precise monitoring, control, and data acquisition within a programmable logic controller (PLC) network.

General Information

Part Number: IC694ALG221

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: IC694

Type: Analog Input Module

Mounting: Panel or DIN rail installation

Technology: Industrial-grade analog input, signal conditioning, isolation, and fault protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via system bus or dedicated DC supply

Protection: Overvoltage, overcurrent, and short-circuit protection

Indicators: LEDs for power and channel status

Communication & Interface

Input Channels: Multiple analog inputs for voltage or current signals

Output: Communicates processed signals to the PLC system

Diagnostics: Channel fault detection, operational monitoring, and status reporting

Operator Interface: LED indicators for power and channel activity

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 0.35 kg
