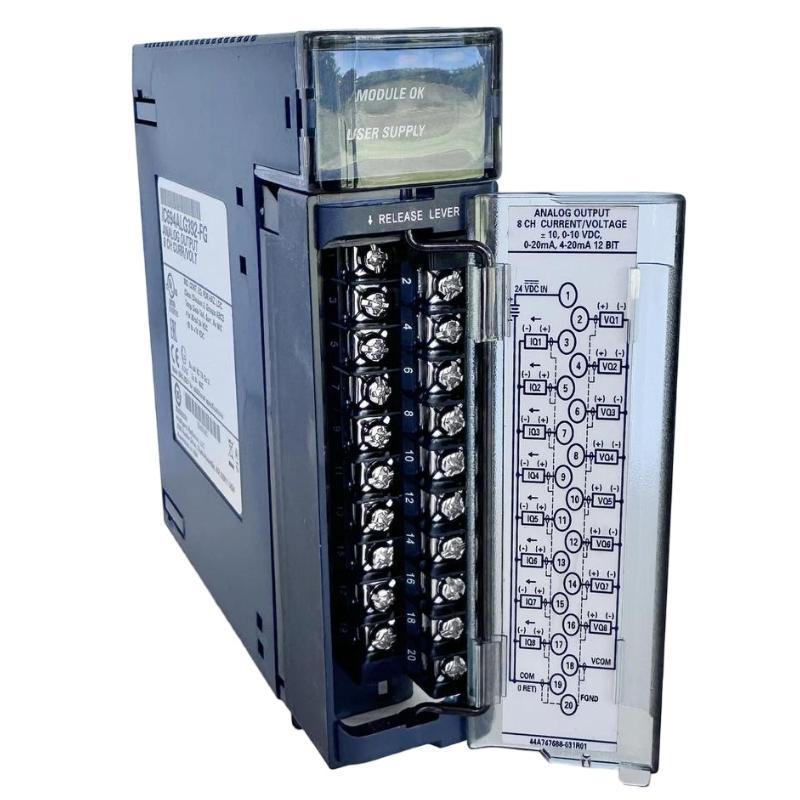

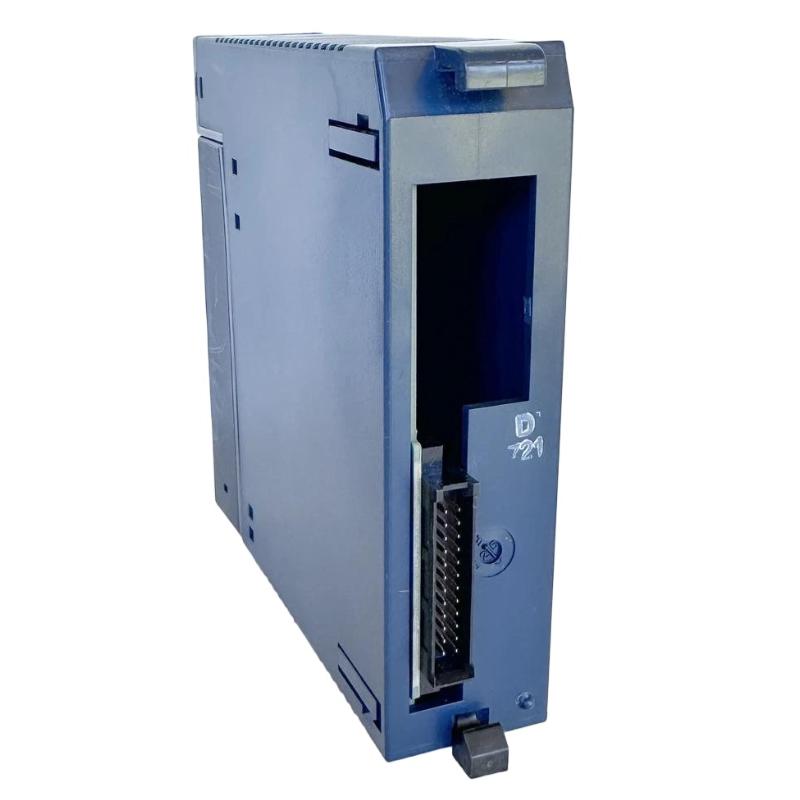

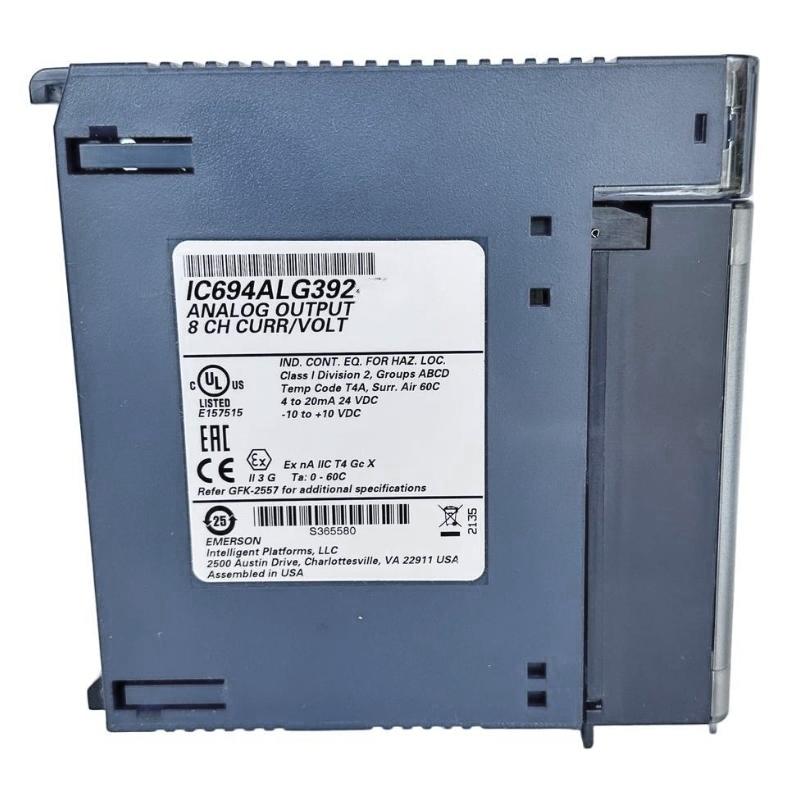

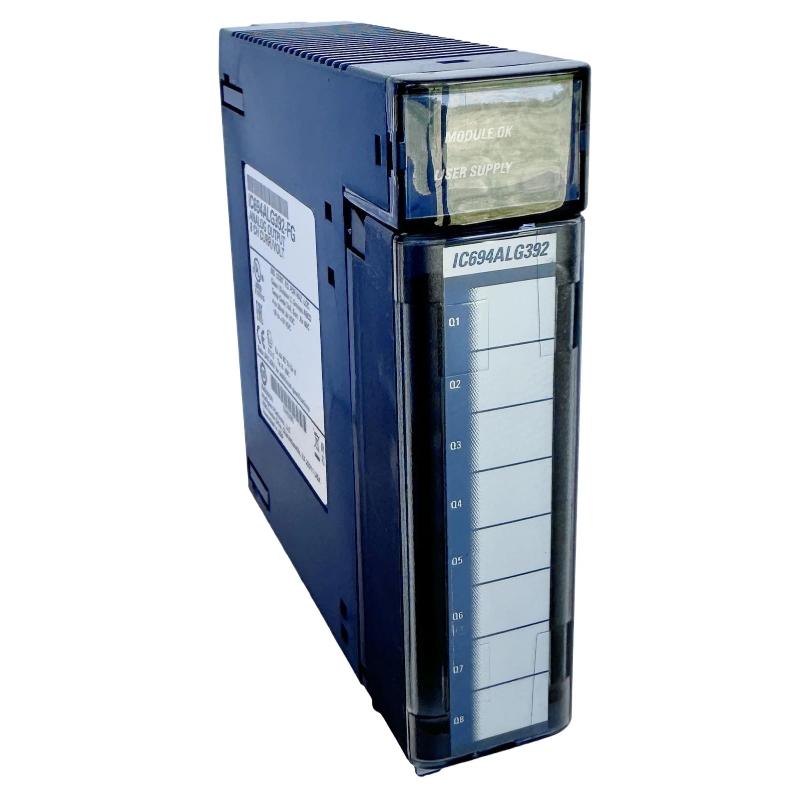

GE IC694ALG392 Analog Output Module

Overview

The GE IC694ALG392 is an analog output module designed for industrial automation and process control systems. It provides precise analog signal output to field devices, enabling accurate control of actuators, valves, and other process equipment within a programmable logic controller (PLC) network.

General Information

Part Number: IC694ALG392

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: IC694

Type: Analog Output Module

Mounting: Panel or DIN rail installation

Technology: Industrial-grade analog output, signal conditioning, isolation, and fault protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via system bus or dedicated DC supply

Protection: Overvoltage, overcurrent, and short-circuit protection

Indicators: LEDs for power and output channel status

Communication & Interface

Output Channels: Multiple analog outputs for voltage or current signals

Diagnostics: Output channel fault detection, operational monitoring, and status reporting

Operator Interface: LED indicators for power and output activity

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 0.299 kg
