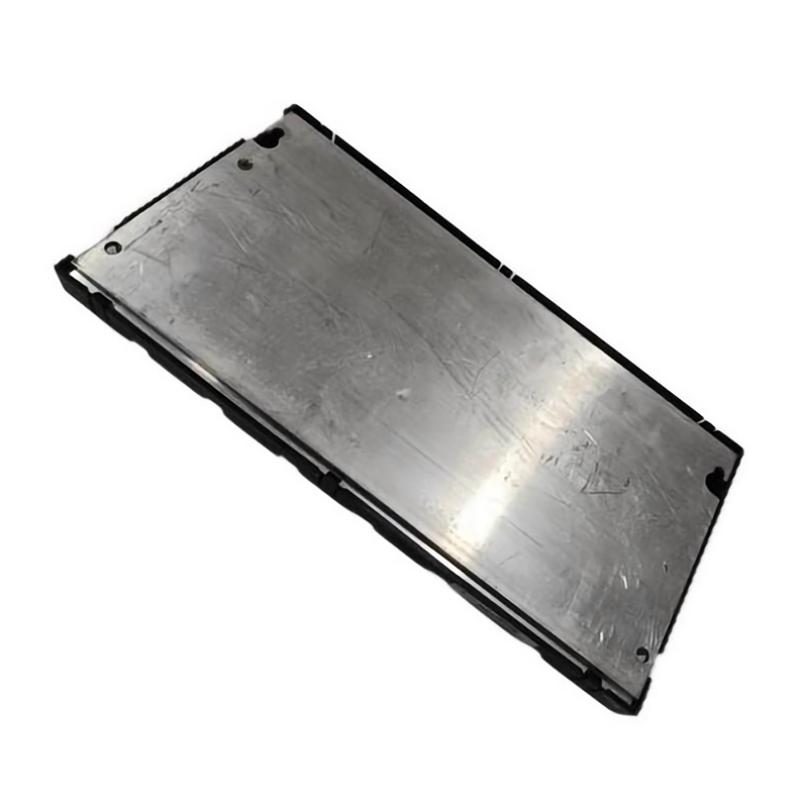

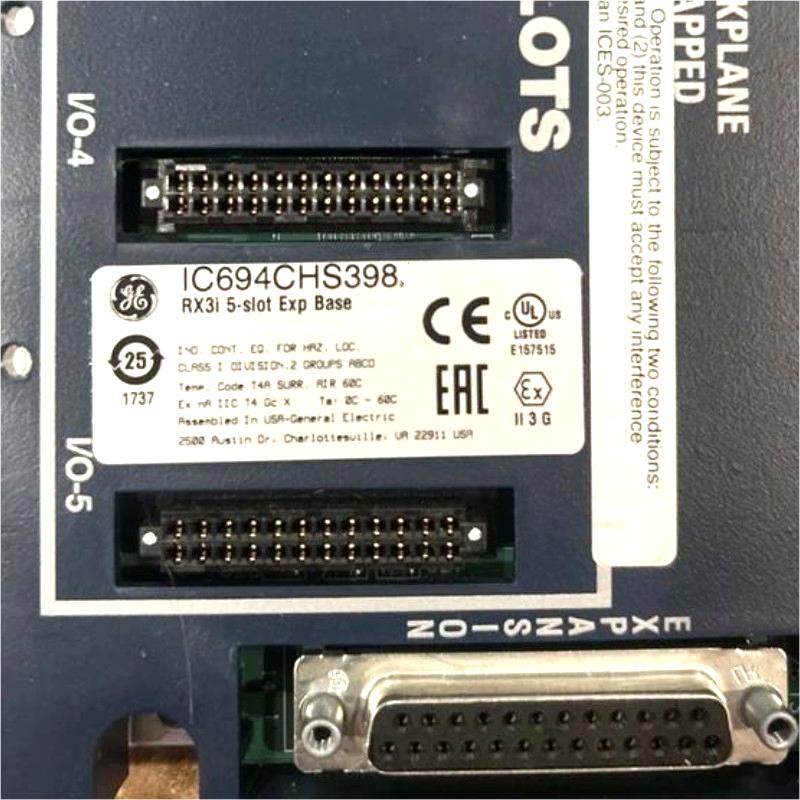

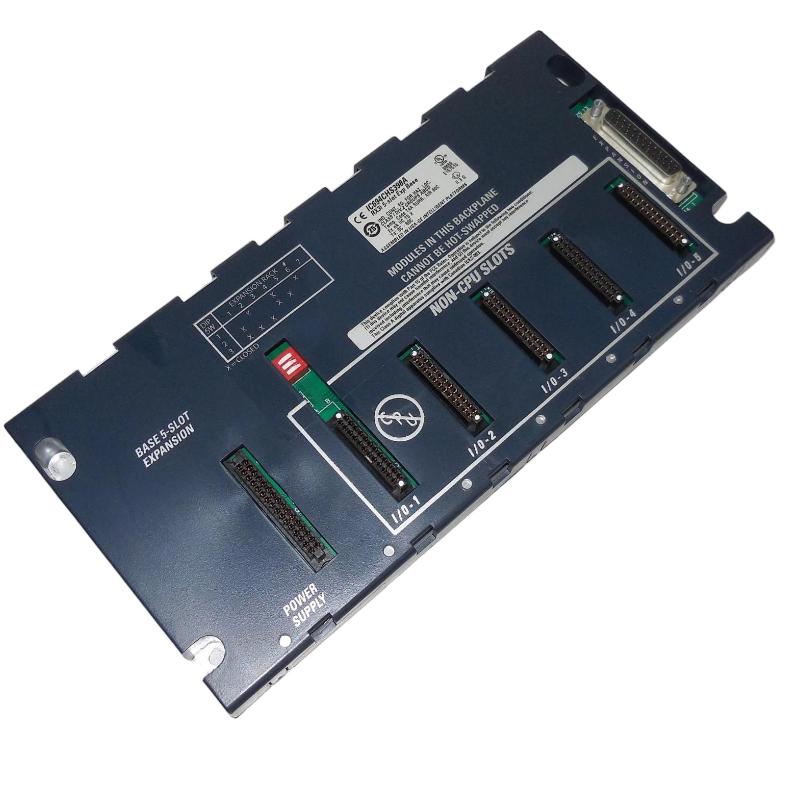

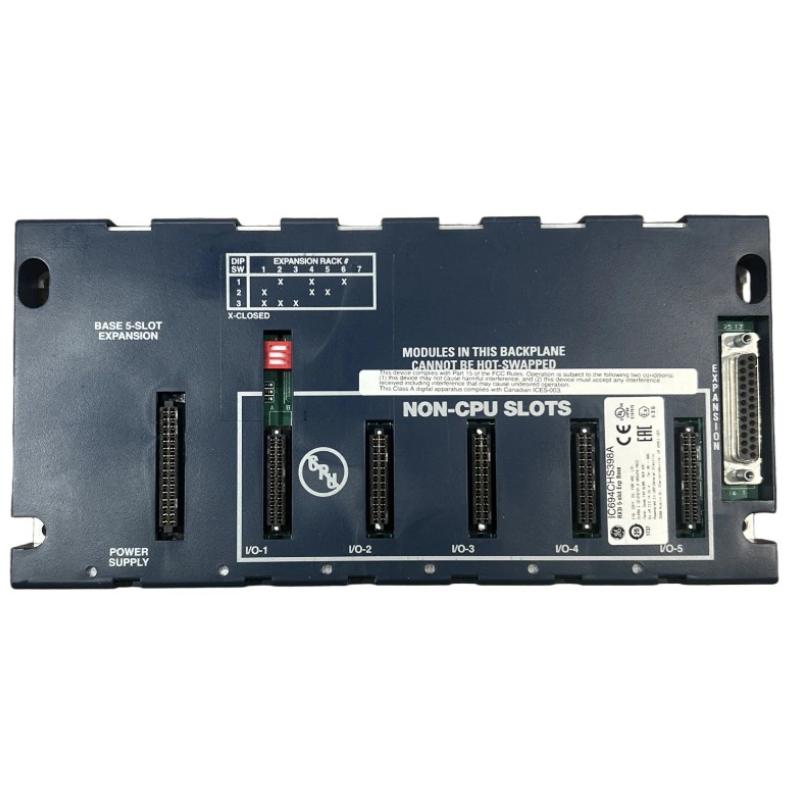

GE IC694CHS398 5-Slot Expansion Base

Overview

The GE IC694CHS398 is a 5-slot expansion base designed for industrial automation and process control systems. It provides a reliable platform for adding multiple I/O or function modules, expanding system capacity and flexibility for complex control applications.

General Information

Part Number: IC694CHS398

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: IC694

Type: 5-Slot Expansion Base

Mounting: Panel or DIN rail installation

Technology: Modular expansion interface, high-speed backplane, and system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W (fully loaded with modules)

Input: Powered via system bus or dedicated DC supply

Protection: Overvoltage, overcurrent, and short-circuit protection

Indicators: LED for power and module status

Communication & Interface

Slot Configuration: 5 slots for I/O or function modules

Signal Routing: Centralized high-speed backplane for reliable communication

Diagnostics: Slot and module fault detection, operational monitoring, and status reporting

Operator Interface: LED indicators for power and module activity

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 245 × 130 × 142 mm

Weight: 1.2 kg
