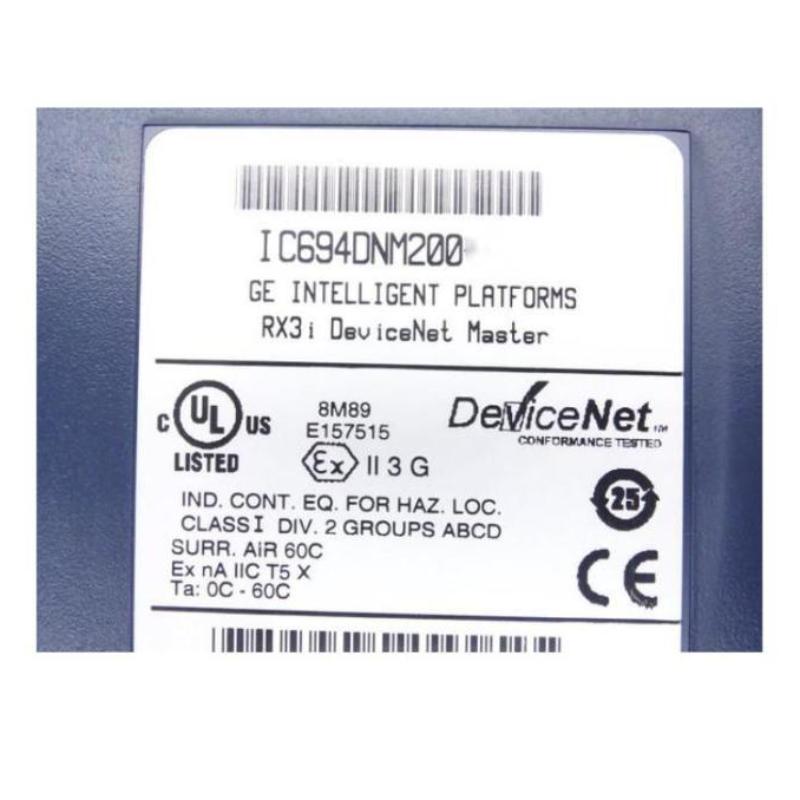

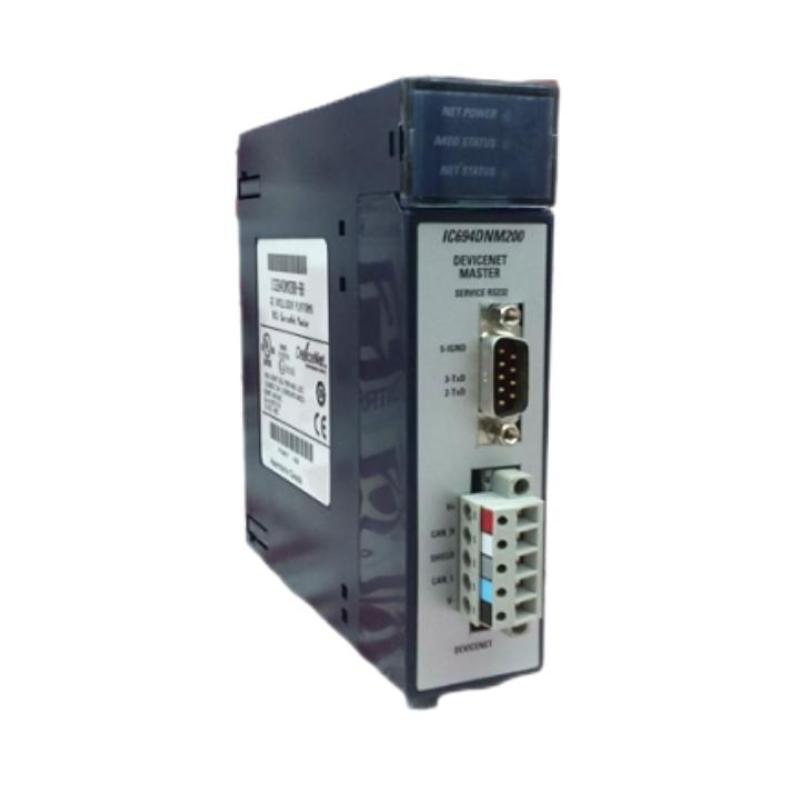

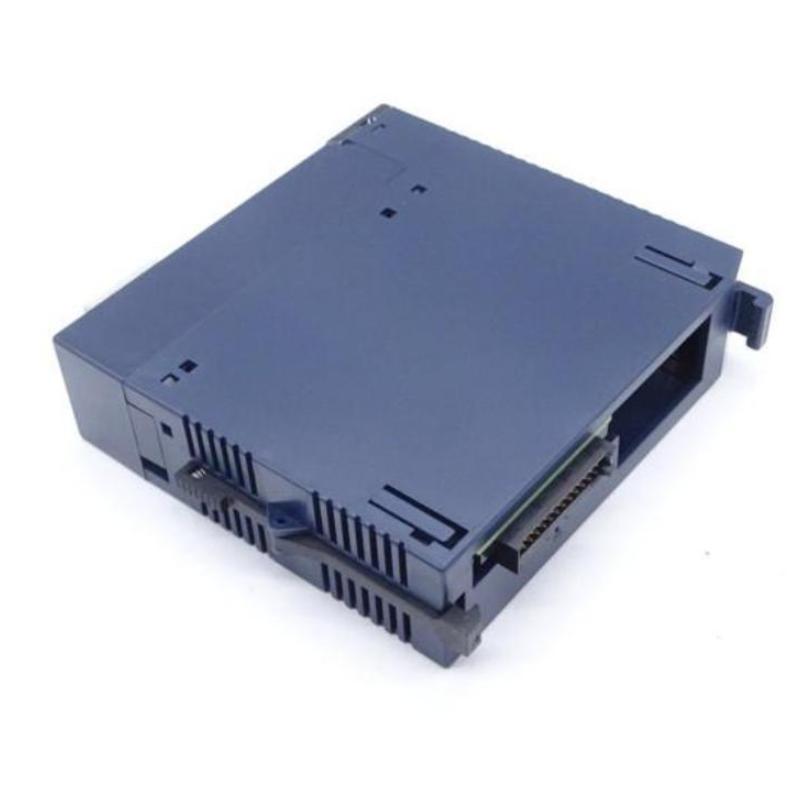

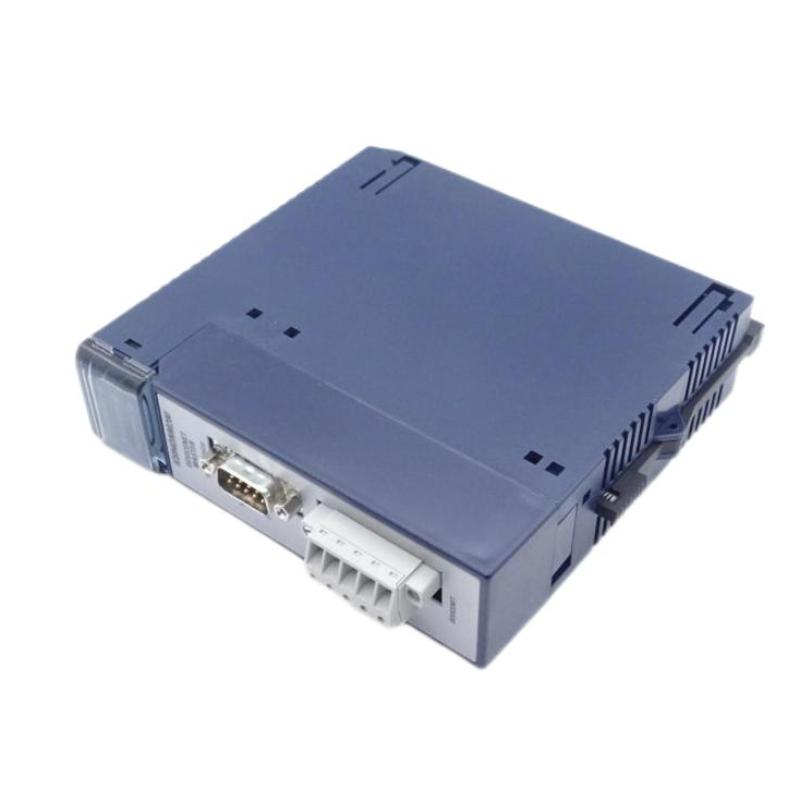

GE IC694DNM200 RX3i DeviceNet Main Module

Overview

The GE IC694DNM200 is a DeviceNet main communication module for the RX3i PLC system. It enables reliable and high-speed DeviceNet network communication, connecting multiple I/O devices and controllers in industrial automation applications.

General Information

Model Number: IC694DNM200

Manufacturer: GE Automation & Controls

Brand / Country of Origin: GE / USA

Series: RX3i Series

Type: DeviceNet Main Module

Application: Network communication for DeviceNet-compatible I/O devices

Mounting: Rack or backplane installation

Technology: High-speed industrial network interface with integrated diagnostics

Power Specifications

Supply Voltage: 5 V DC (via backplane)

Power Consumption: ≤ 3 W

Input Power Source: Supplied via RX3i backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LEDs for power, network status, and fault detection

Communication & Interface

Network Interface: DeviceNet communication port

Bus Role: Main module for managing DeviceNet nodes and data exchange

Data Handling: Supports cyclic and acyclic messaging with error detection

Diagnostics: Network health monitoring, node status, and fault reporting

Configuration: Configurable via GE RX3i programming and configuration software

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 when installed in industrial cabinet

Vibration Resistance: Designed for industrial environments

Dimensions & Weight

Dimensions (L × W × H): 89 × 107 × 188 mm

Weight: 0.181 kg
