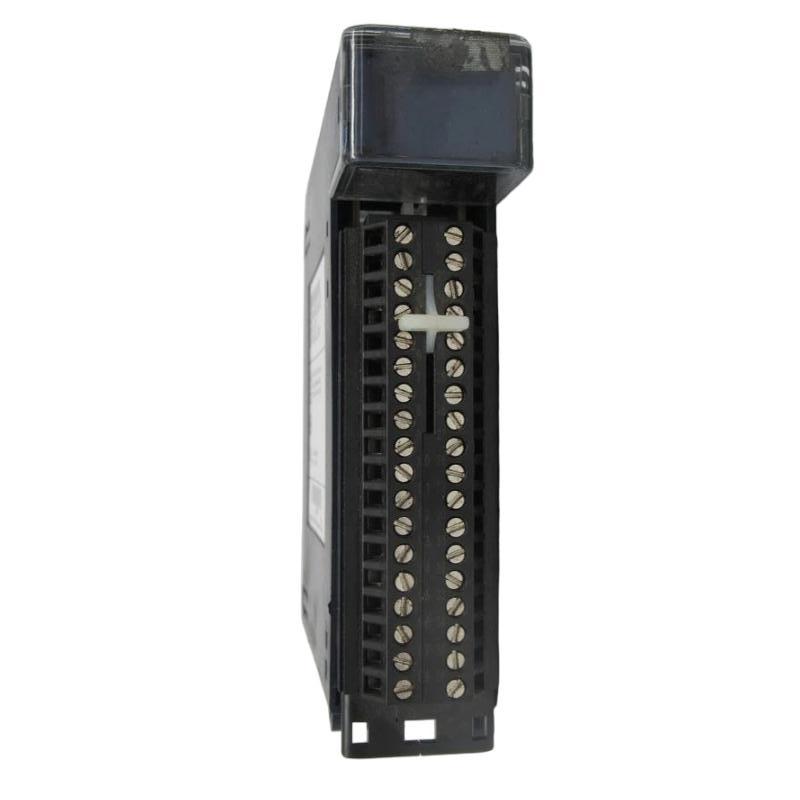

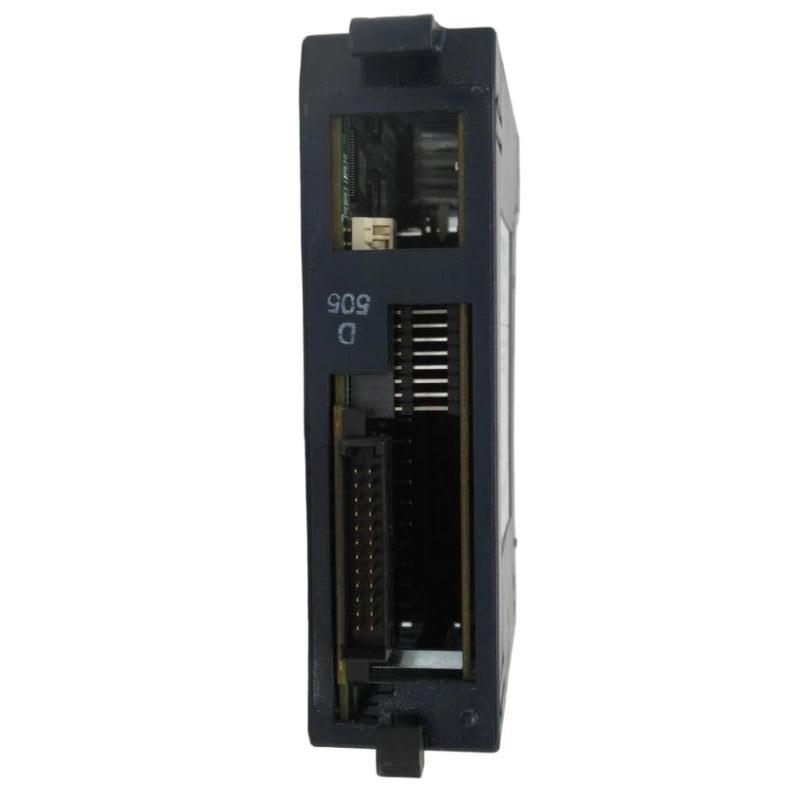

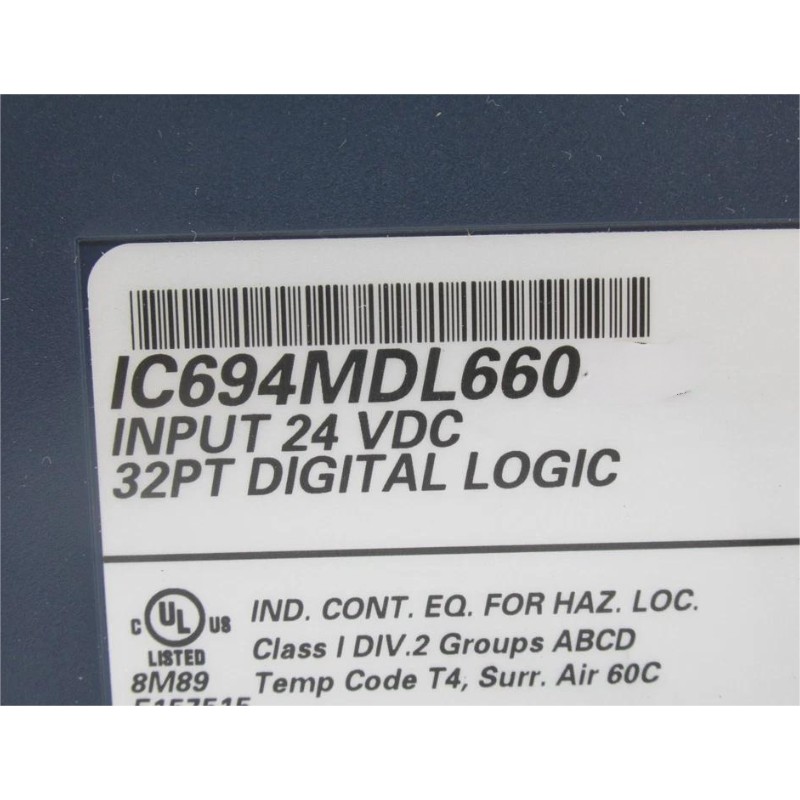

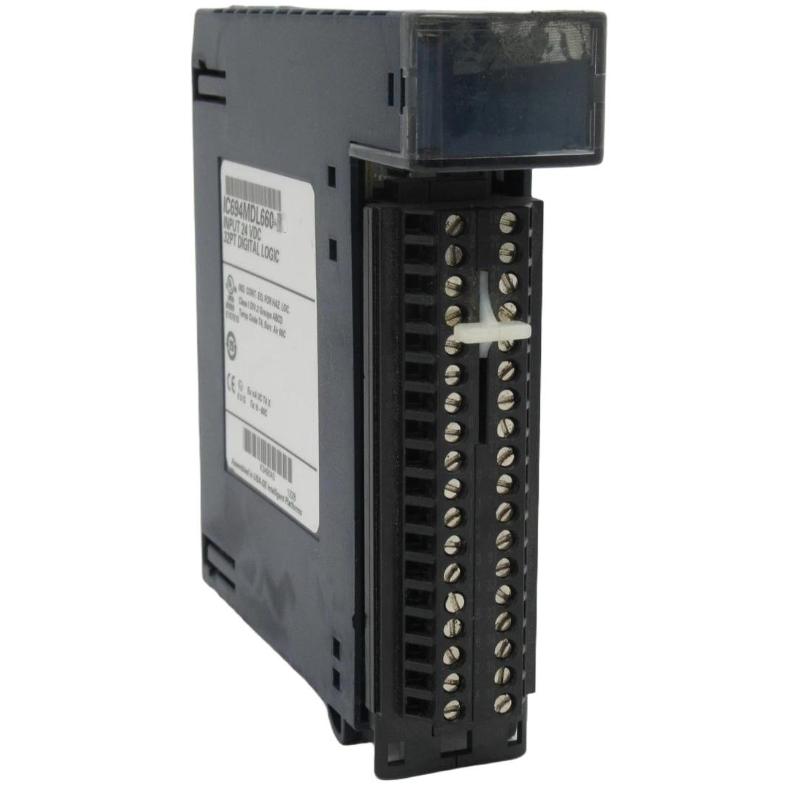

GE IC694MDL660 RX3i Input Module

Overview

The GE IC694MDL660 is a high-performance input module for the RX3i programmable automation controller (PAC) series. It accurately acquires digital input signals from field devices, enabling reliable monitoring and control of industrial processes.

General Information

Part Number: IC694MDL660

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Input Module

Application: Digital signal acquisition for industrial automation and control systems

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-speed digital input with diagnostic and fault monitoring capabilities

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input Power Source: System backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for channel status, power, and fault detection

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Digital input channels for switches, sensors, and contact signals

Diagnostics: Real-time input monitoring and fault detection

Configuration: Software-configurable via RX3i programming tools

Isolation: Electrical isolation between input channels and system

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 0.91 kg
