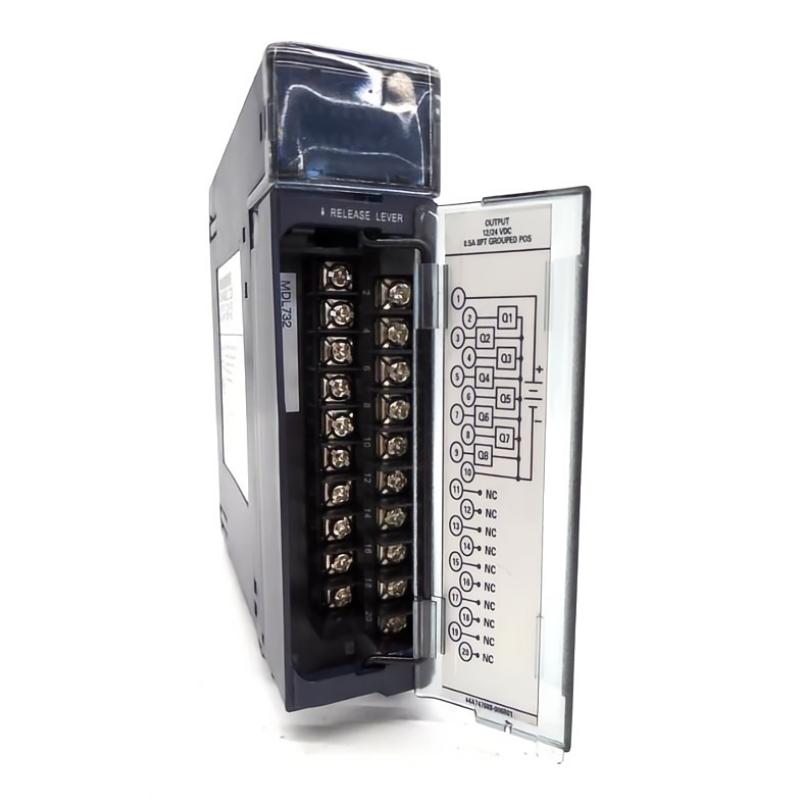

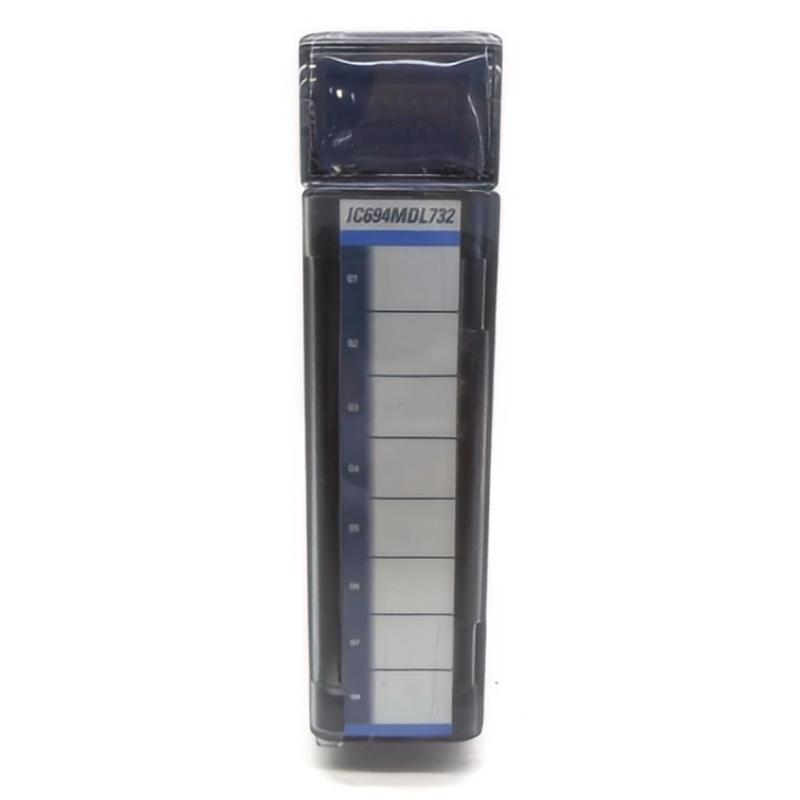

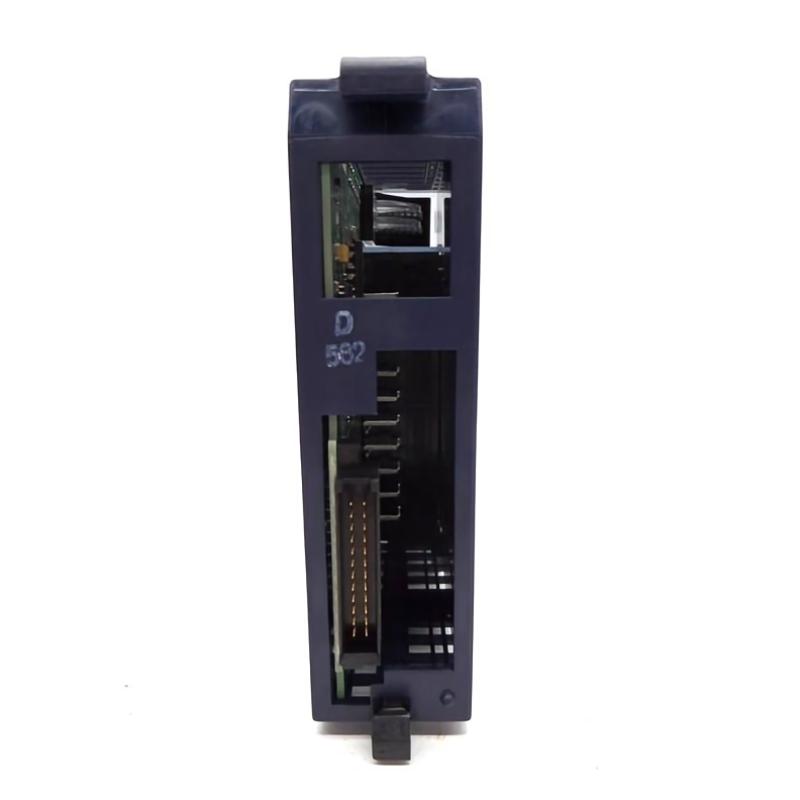

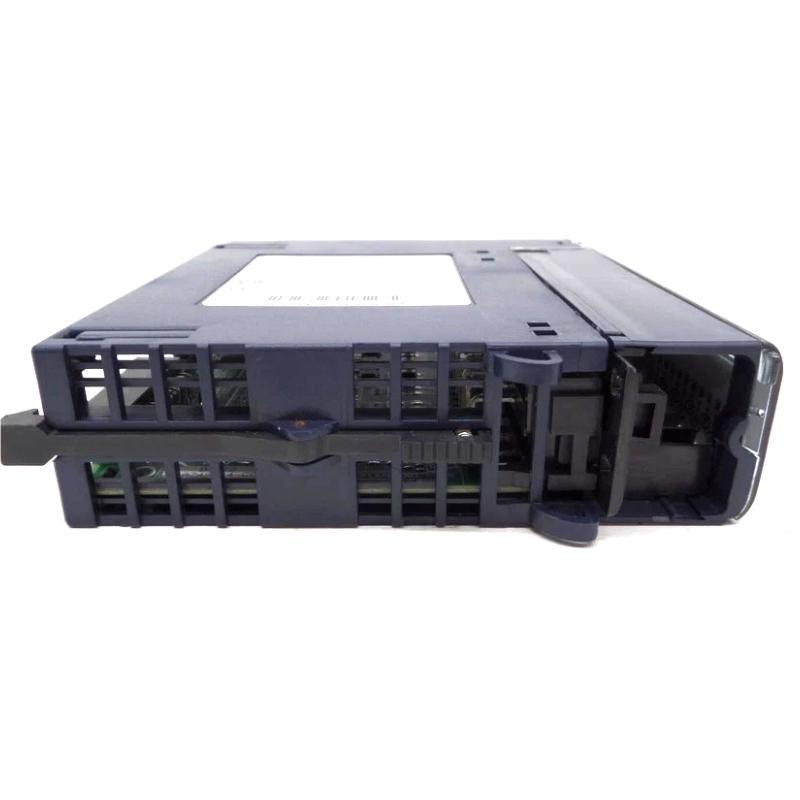

GE IC694MDL732B Voltage Output Module

Overview

The GE IC694MDL732B is a precision voltage output module designed for the RX3i programmable automation controller (PAC) series. It provides accurate analog voltage signals to control actuators, devices, and other field equipment in industrial automation systems.

General Information

Part Number: IC694MDL732B

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Voltage Output Module

Application: Analog voltage output for industrial automation and process control

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-accuracy voltage output with integrated diagnostics and protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input Power Source: System backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for channel status, power, and fault detection

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Analog voltage output channels for actuators and field devices

Output Range: Typically 0–10 V DC per channel

Diagnostics: Continuous monitoring of output status and fault reporting

Configuration: Software-configurable via RX3i programming tools

Isolation: Electrical isolation between output channels and system

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 0.91 kg

Precise Output – Control Your System with Confidence!
