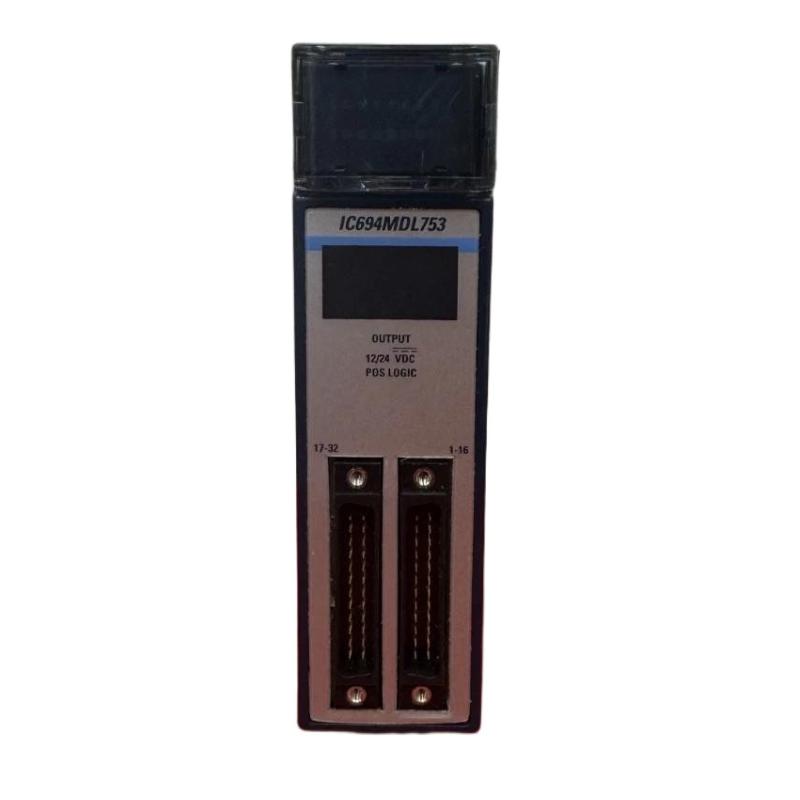

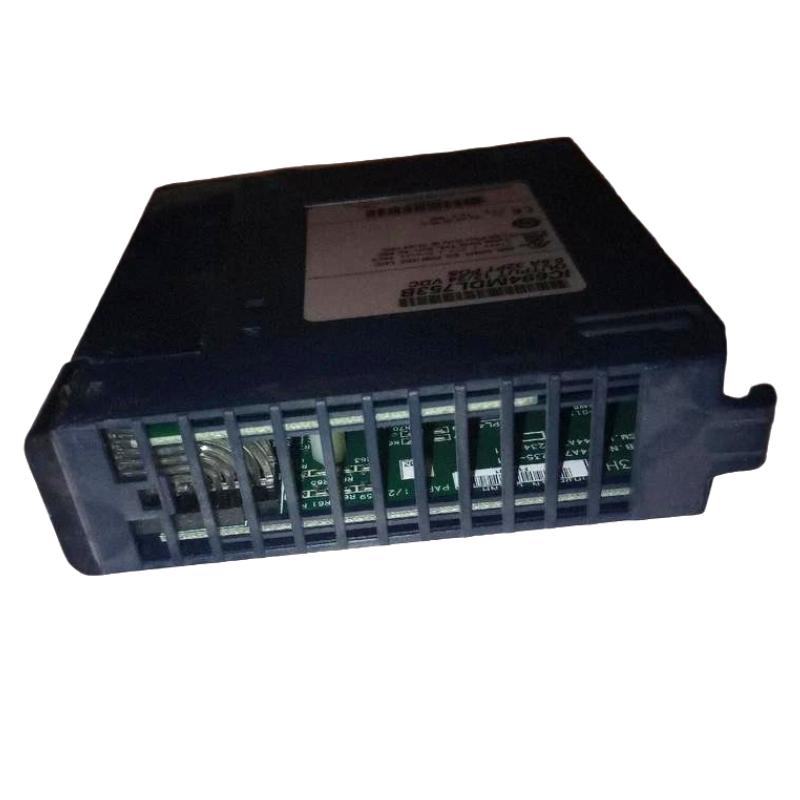

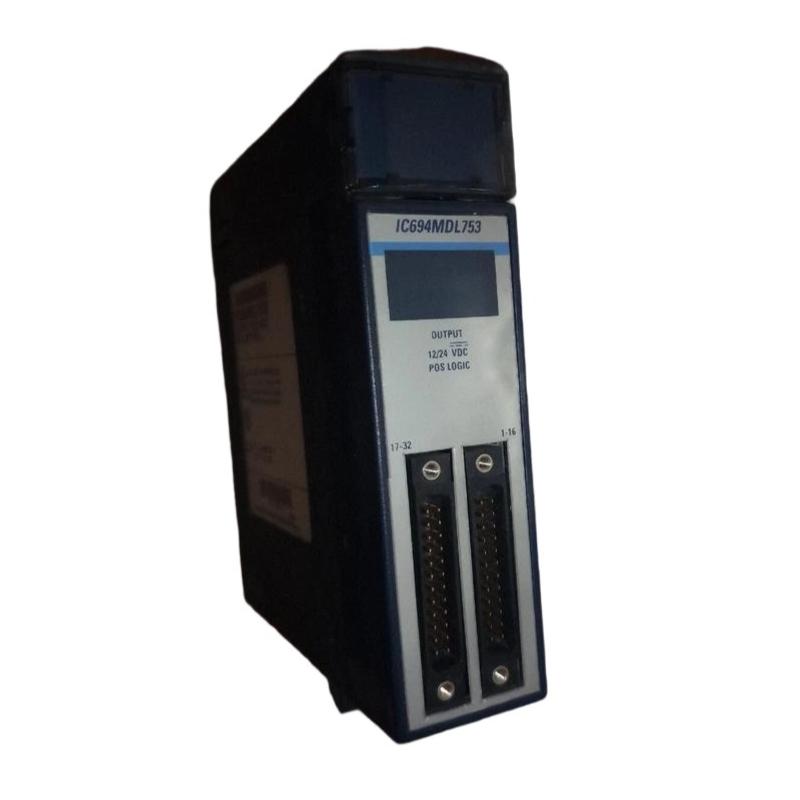

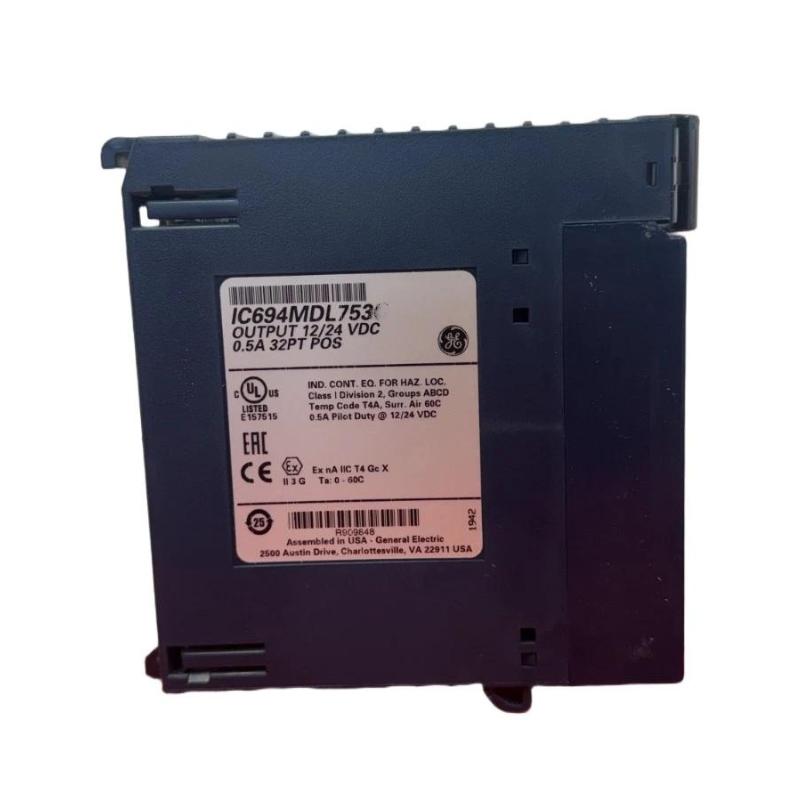

GE IC694MDL753 Voltage Output Module

Overview

The GE IC694MDL753 is a reliable voltage output module designed for the RX3i programmable automation controller (PAC) series. It delivers precise analog voltage signals for controlling actuators and field devices, ensuring accurate and consistent performance in industrial automation applications.

General Information

Part Number: IC694MDL753

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Voltage Output Module

Application: Analog voltage output for industrial process control and automation

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-accuracy voltage output with built-in diagnostics and protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input Power Source: System backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for power, channel status, and fault conditions

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Multiple analog voltage output channels

Output Range: Typically 0–10 V DC per channel

Diagnostics: Continuous monitoring of output and fault reporting

Configuration: Software-configurable via RX3i programming tools

Isolation: Electrical isolation between output channels and system

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 0.249 kg

Accurate Voltage Control – Optimize Your Process Performance Today!
