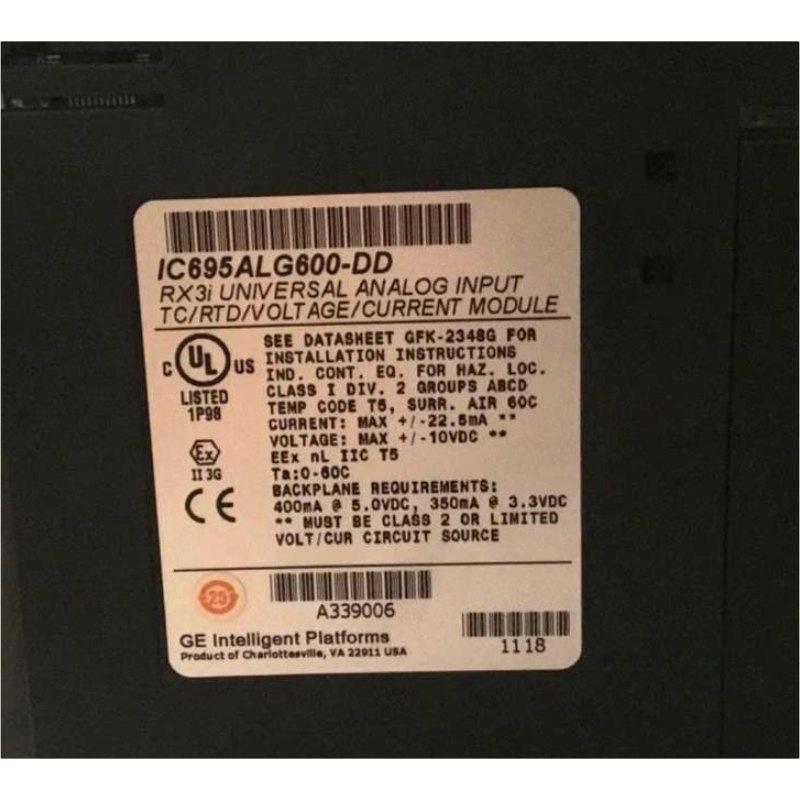

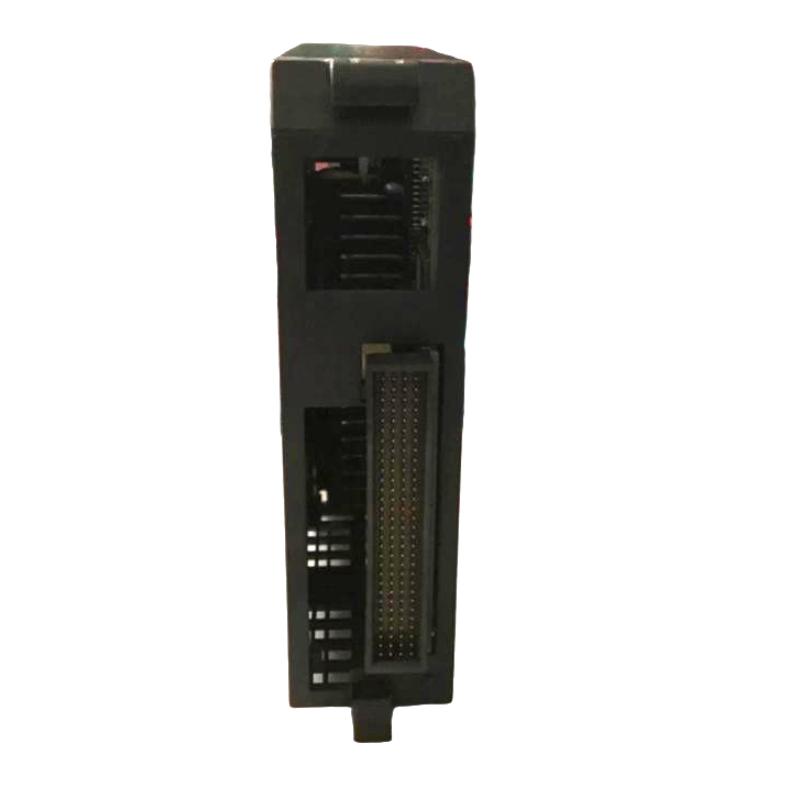

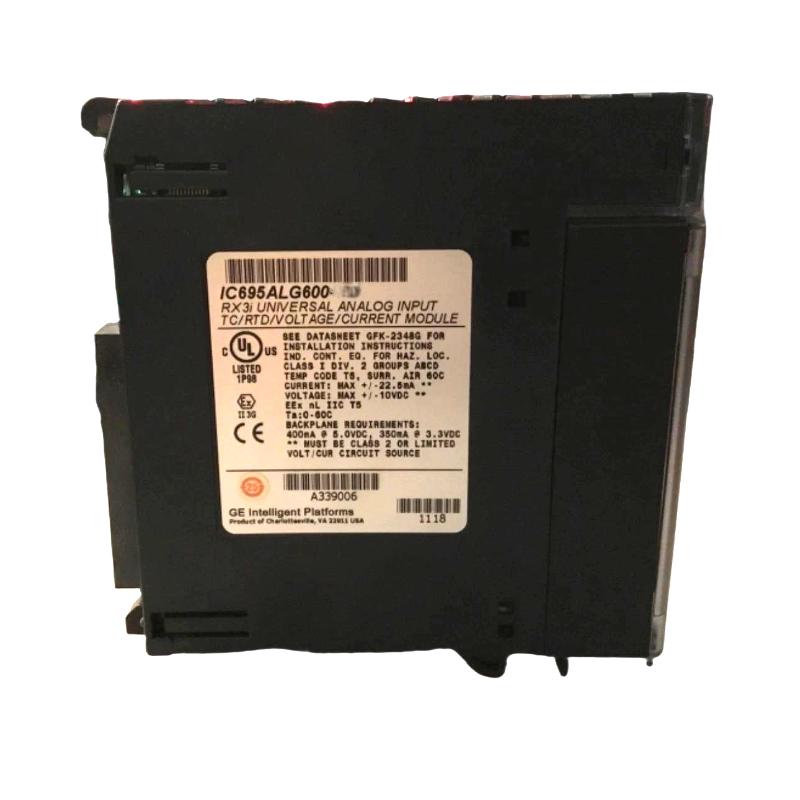

GE IC695ALG600 RX3i Analog Input Module

Overview

The GE IC695ALG600 is a high-performance analog input module for the RX3i programmable automation controller (PAC) series. It accurately captures analog signals from sensors and field devices, providing precise data for industrial process monitoring and control.

General Information

Part Number: IC695ALG600

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Analog Input Module

Application: Analog signal acquisition for industrial automation and process control

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-resolution analog input with integrated diagnostics and fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input Power Source: System backplane

Protection: Overvoltage and reverse polarity protection

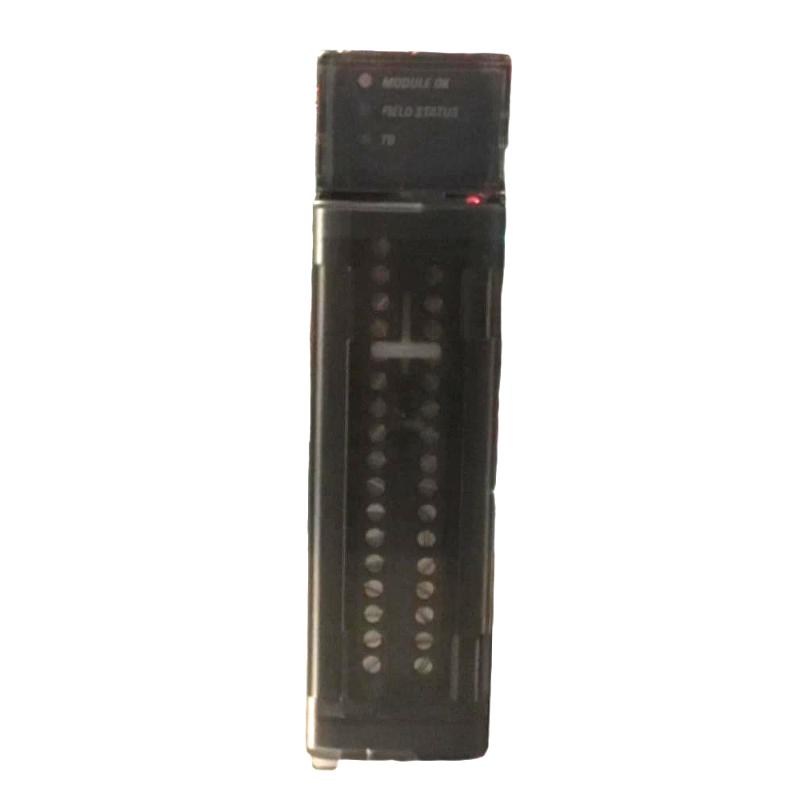

Indicators: LED indicators for channel status, power, and fault detection

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Multiple analog input channels for sensors and field devices

Input Range: Standard industrial sensor ranges

Diagnostics: Real-time input monitoring and fault reporting

Configuration: Software-configurable via RX3i engineering tools

Isolation: Electrical isolation between input channels and system

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 34 × 140 × 145 mm

Weight: 0.227 kg

Reliable Inputs – Ensure Accurate Process Control Today!
