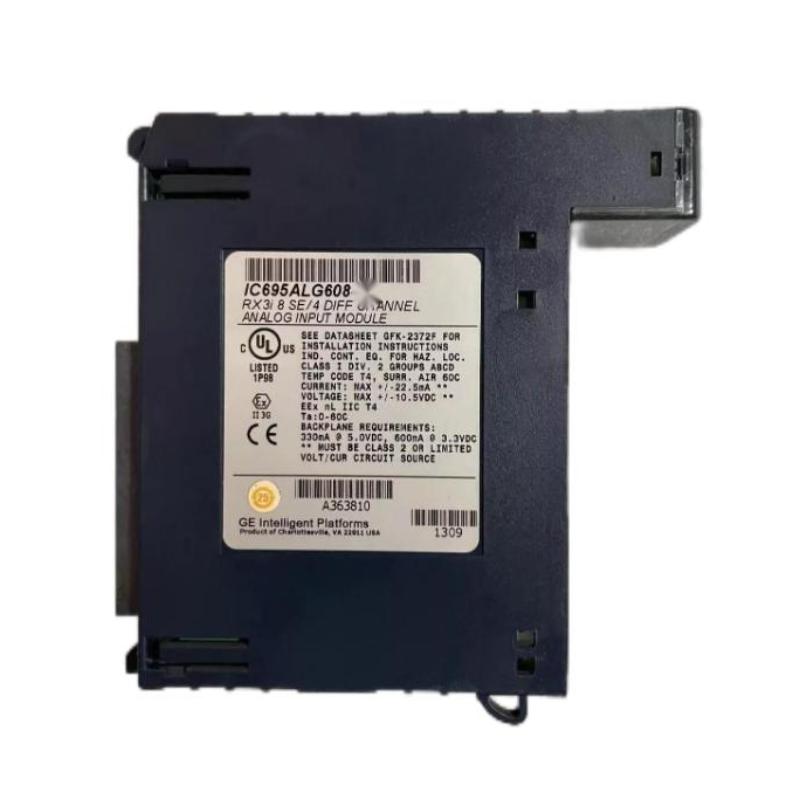

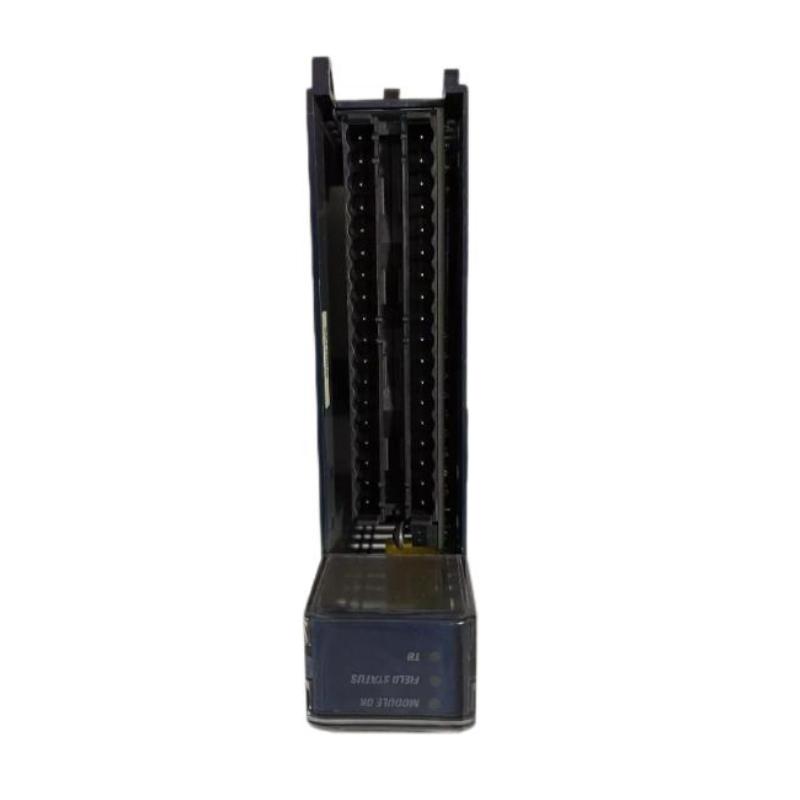

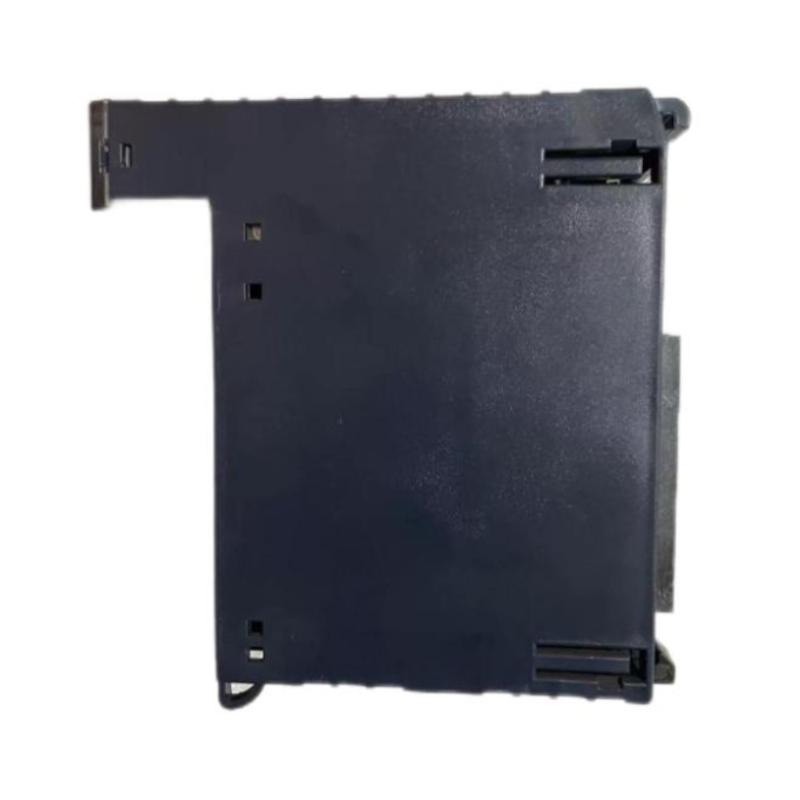

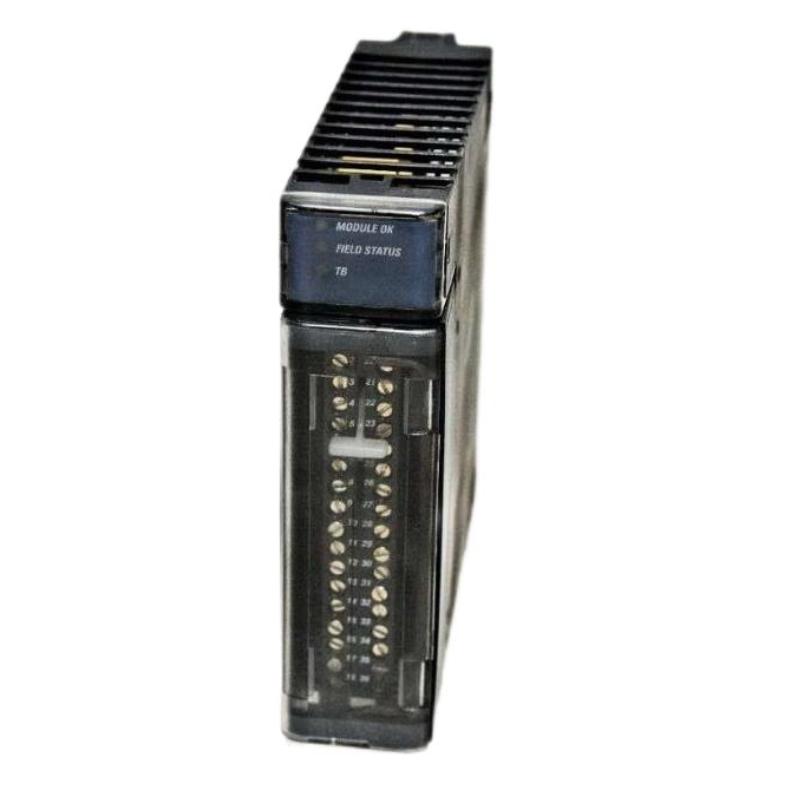

GE IC695ALG608 RX3i Analog Input Module

Overview

The GE IC695ALG608 is a high-precision analog input module for the RX3i programmable automation controller (PAC) series. It provides accurate acquisition of analog signals from sensors and field devices, supporting reliable monitoring and control in industrial automation systems.

General Information

Part Number: IC695ALG608

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Analog Input Module

Application: Analog signal acquisition for industrial process control and automation

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-resolution analog input with integrated diagnostics and fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input Power Source: System backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for channel status, power, and fault detection

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Multiple analog input channels for sensors and field devices

Input Range: Standard industrial sensor ranges

Diagnostics: Real-time monitoring of input signals and fault reporting

Configuration: Software-configurable via RX3i programming tools

Isolation: Electrical isolation between input channels and system

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 34 × 140 × 145 mm

Weight: 0.227 kg
