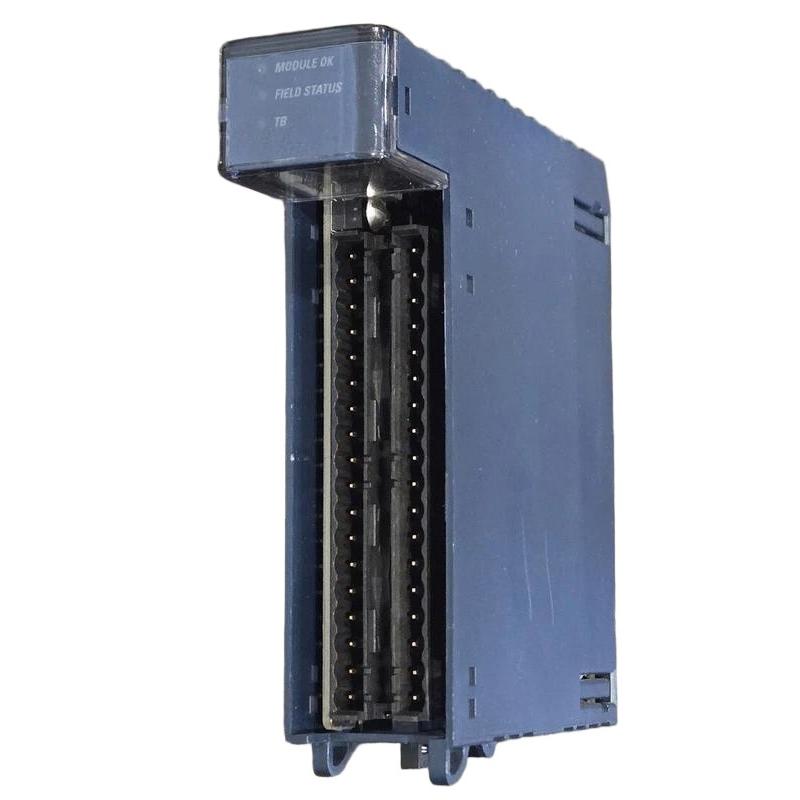

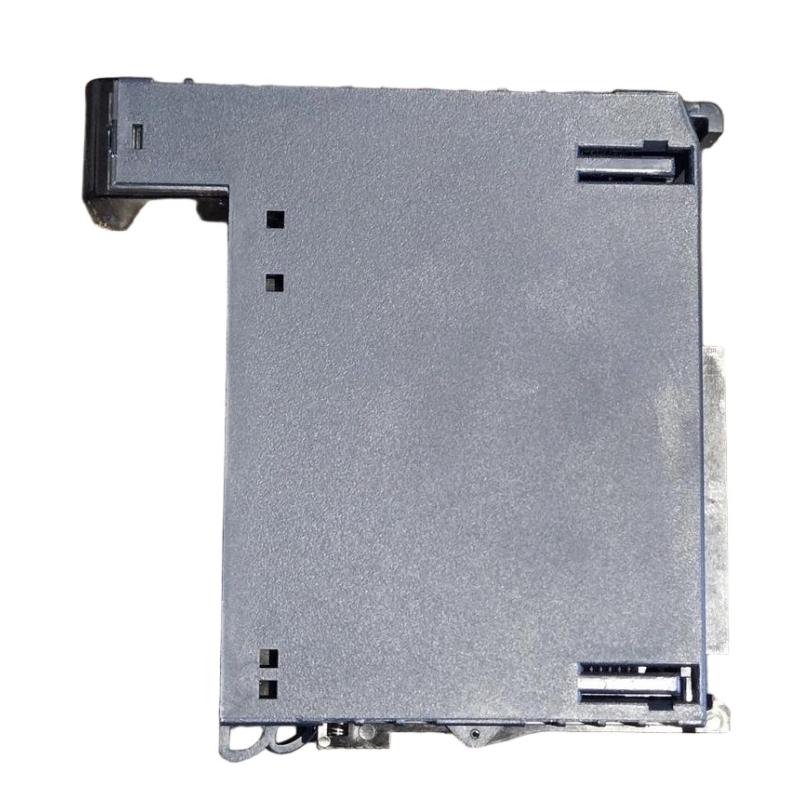

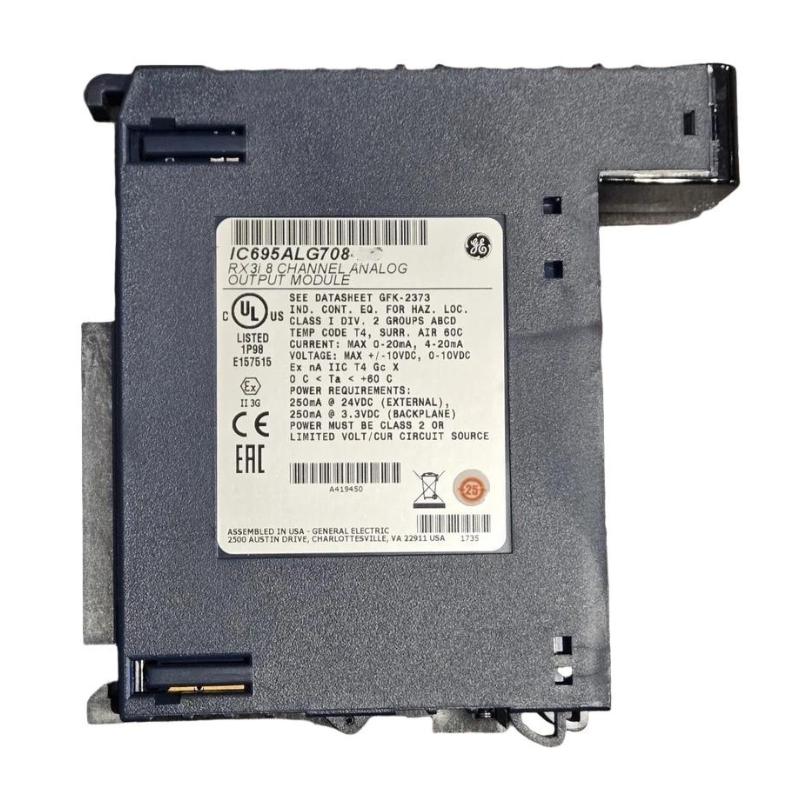

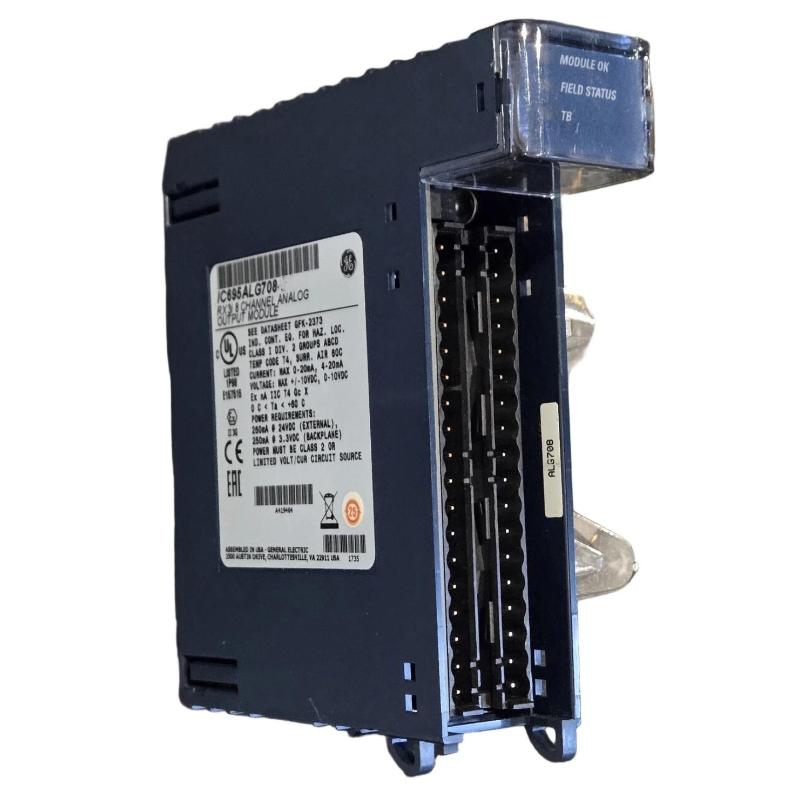

GE IC695ALG708 RX3i Analog Output Module

Overview

The GE IC695ALG708 is a high-performance analog output module for the RX3i programmable automation controller (PAC) series. It delivers precise voltage or current signals to control actuators, valves, and other field devices, ensuring reliable and stable operation in industrial automation systems.

General Information

Part Number: IC695ALG708

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Analog Output Module

Application: Analog signal output for industrial automation and process control

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-resolution analog output with integrated diagnostics and fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input Power Source: System backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for channel status, power, and fault detection

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Multiple analog output channels for field devices

Output Range: Supports standard industrial voltage/current ranges

Diagnostics: Continuous output monitoring and fault reporting

Configuration: Software-configurable via RX3i programming tools

Isolation: Electrical isolation between output channels and system

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 0.5 kg

Reliable Outputs – Enhance Your Automation Precision Today!
