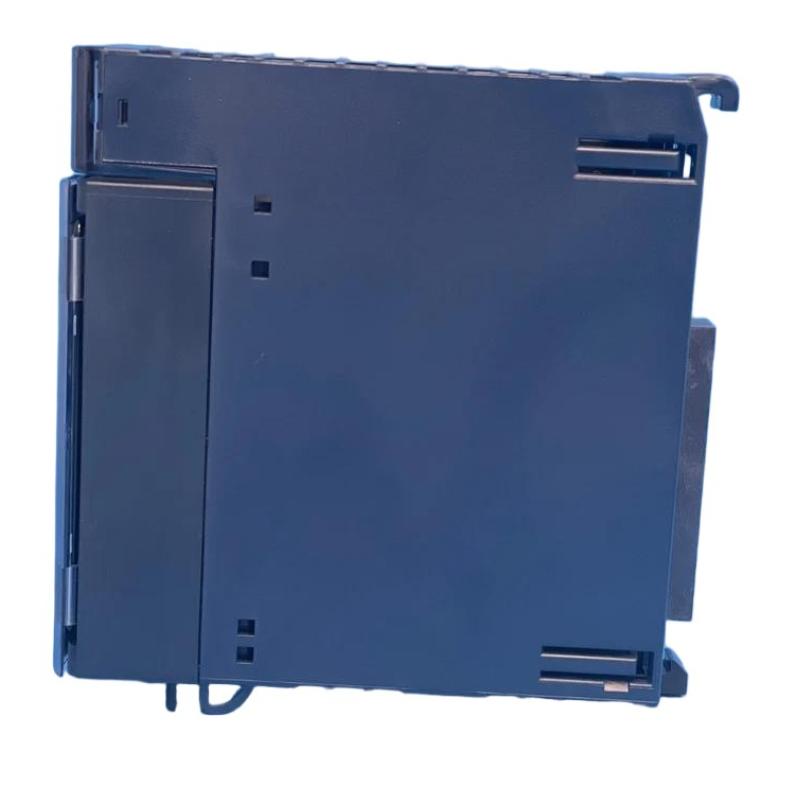

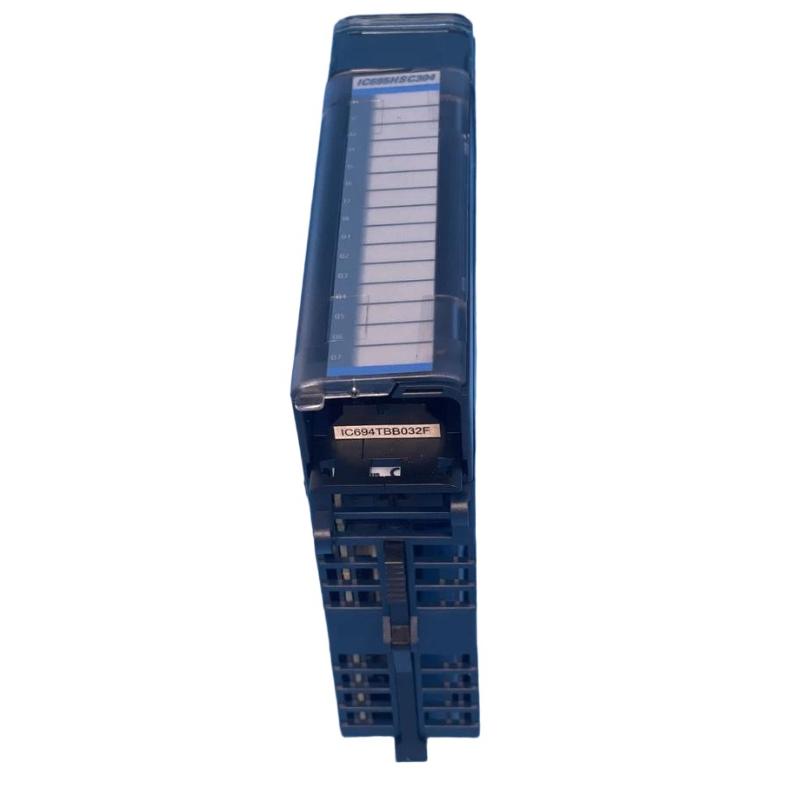

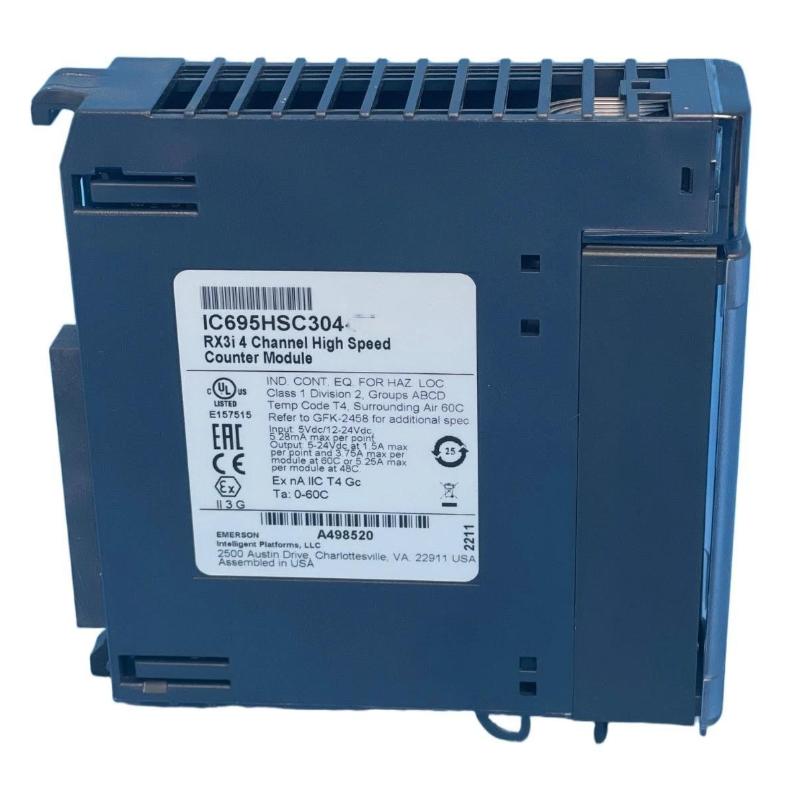

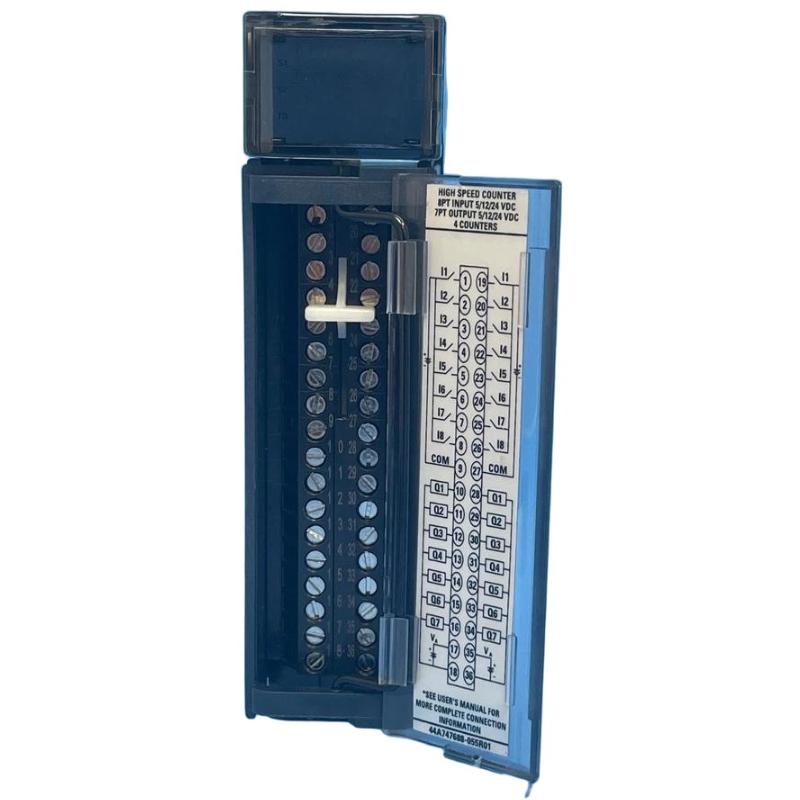

GE IC695HSC304 RX3i High-Speed ​​Counter

Overview

The GE IC695HSC304 is a high-speed counter module designed for PACSystems RX3i platforms. It provides precise counting and measurement capabilities for high-frequency input signals, making it ideal for motion control, position tracking, and high-speed automation applications.

General Information

Part Number: IC695HSC304

Manufacturer: GE

Brand / Country of Origin: GE / United States (US)

Series: PACSystems RX3i

Type: High-Speed Counter Module

Application: Motion control, encoder feedback, and high-speed signal processing

Mounting: Installed in RX3i backplane

Technology: High-speed counting with real-time processing capability

Power Specifications

Supply Voltage: Powered via RX3i backplane

Power Consumption: ≤ 6 W

Input Source: Backplane power supply

Protection: Integrated circuit protection

Indicators: LED indicators for status, activity, and fault conditions

Communication & Interface

Backplane Interface: High-speed RX3i system bus

Input Channels: Multiple high-speed counter inputs

Signal Types: Supports encoder signals and pulse inputs

Data Processing: Accurate high-speed counting and measurement

Diagnostics: Built-in diagnostics and status monitoring

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 132 × 50.8 × 70 mm

Weight: 0.336 kg
