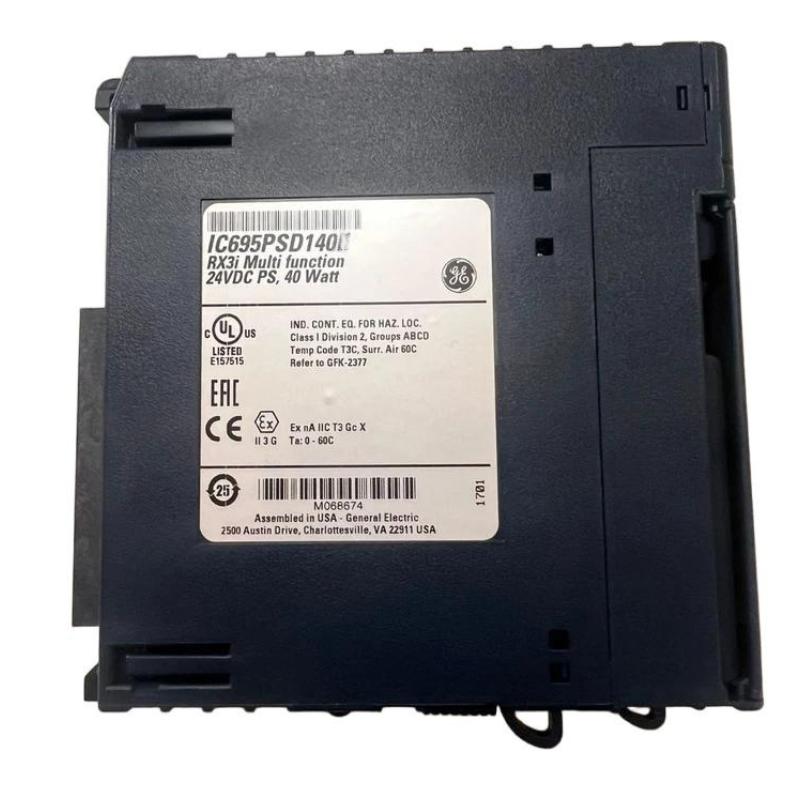

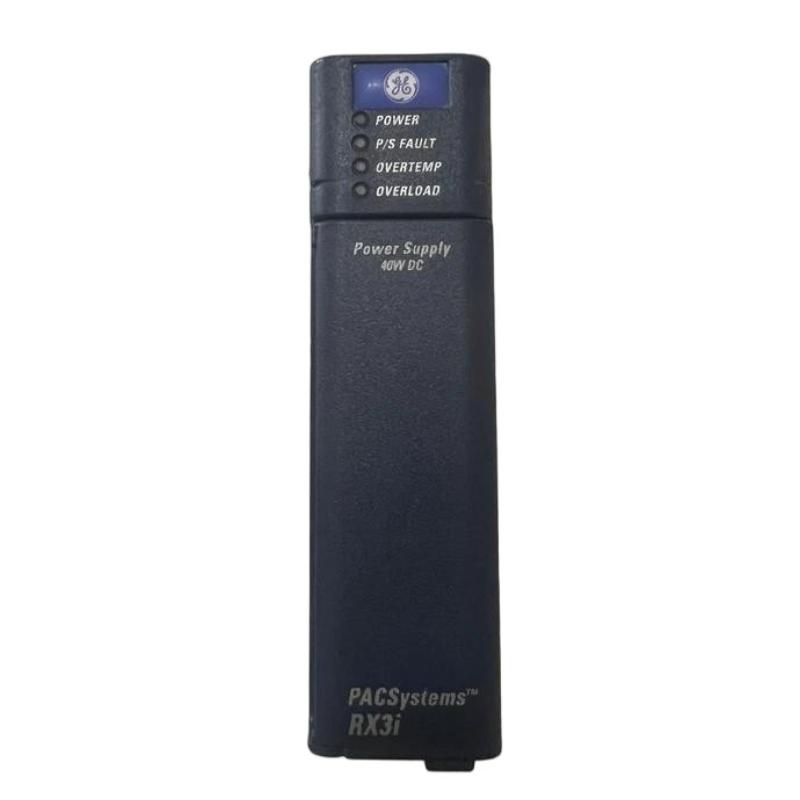

GE IC695PSD140 RX3i Universal Backplate Power Supply

Overview

The GE IC695PSD140 is a universal backplate power supply designed for PACSystems RX3i systems. It provides dependable power distribution to the backplane and connected modules, ensuring stable and efficient operation in industrial automation environments.

General Information

Part Number: IC695PSD140

Manufacturer: GE

Brand / Country of Origin: GE / United States (US)

Series: PACSystems RX3i

Type: Backplate Power Supply

Application: Power supply for RX3i control systems

Mounting: Installed on RX3i backplane

Technology: High-efficiency power conversion with built-in protection

Power Specifications

Input Voltage: 24 V DC

Output Voltage: Backplane distributed power

Power Capacity: Designed for multi-module system support

Protection: Overvoltage, overload, and short-circuit protection

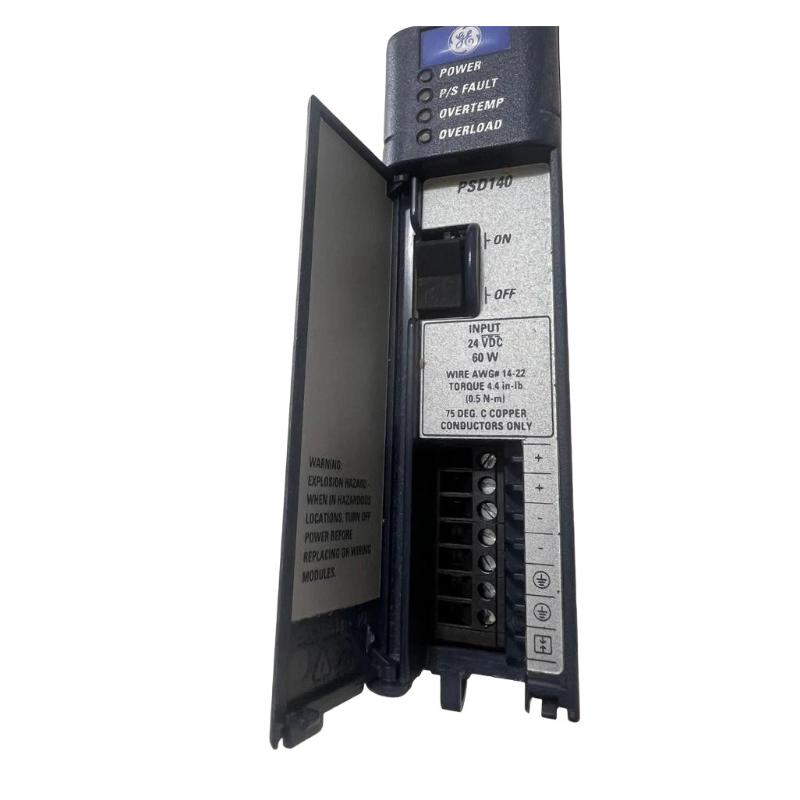

Indicators: LED indicators for power status and fault conditions

Communication & Interface

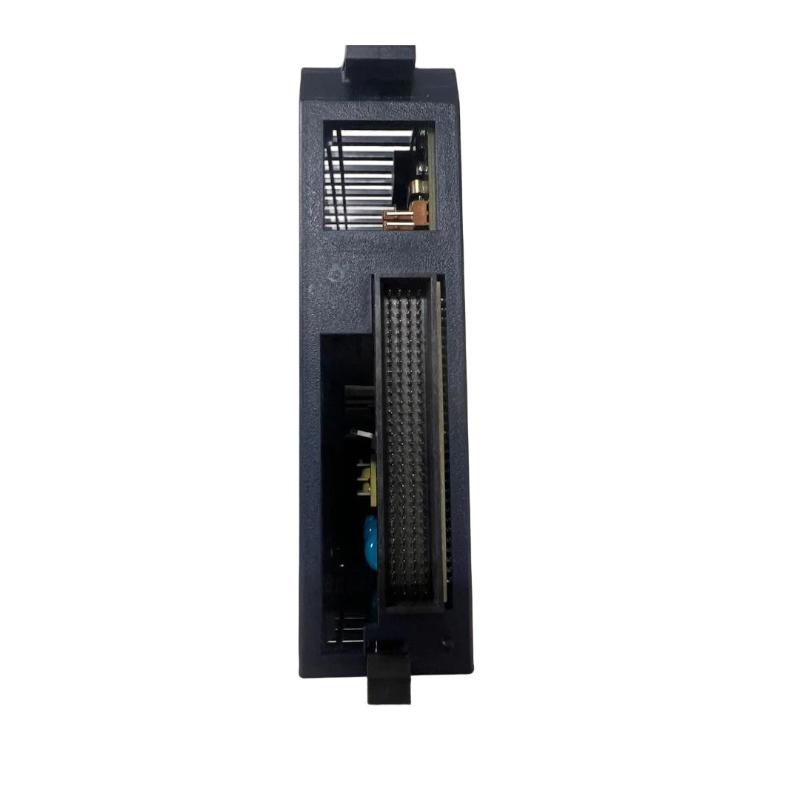

Backplane Interface: Direct connection to RX3i backplane

Function: Supplies stable power to CPU, I/O, and communication modules

Monitoring: System-level power monitoring via controller diagnostics

Compatibility: Fully compatible with PACSystems RX3i architecture

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 34 × 145 × 140 mm

Weight: 1.129 kg
