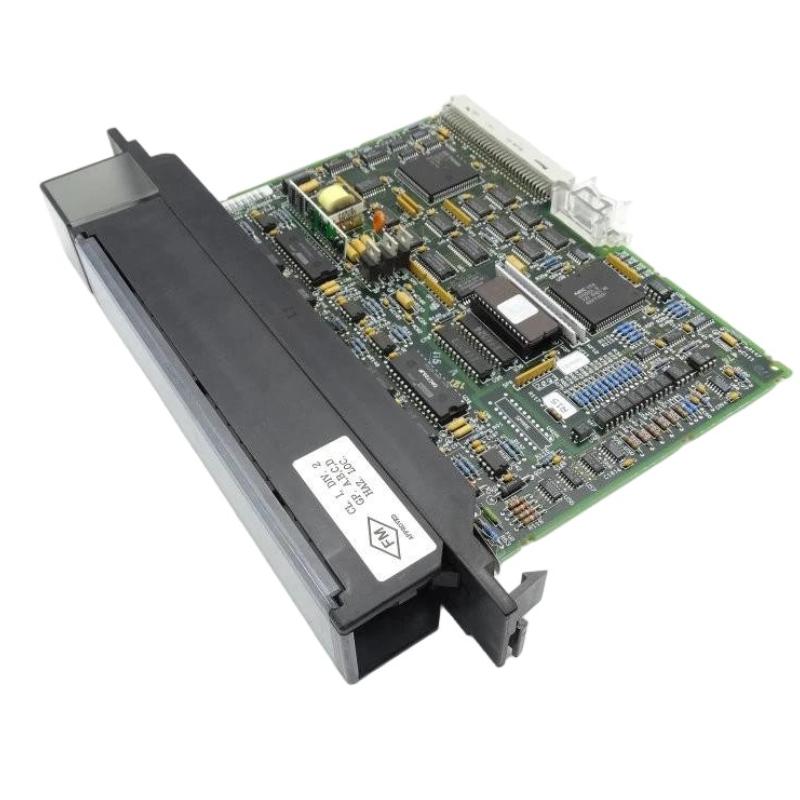

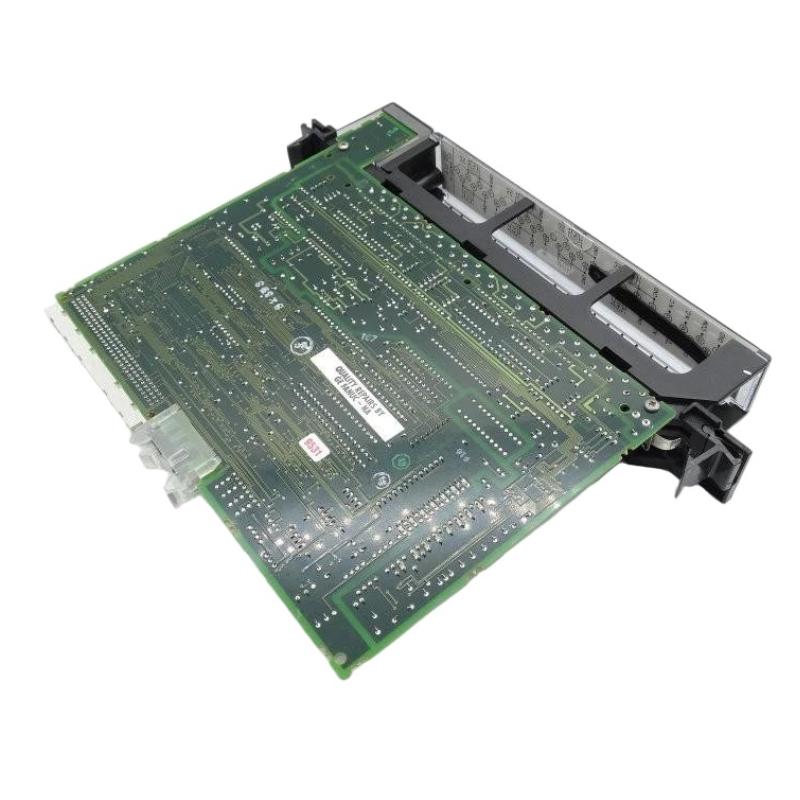

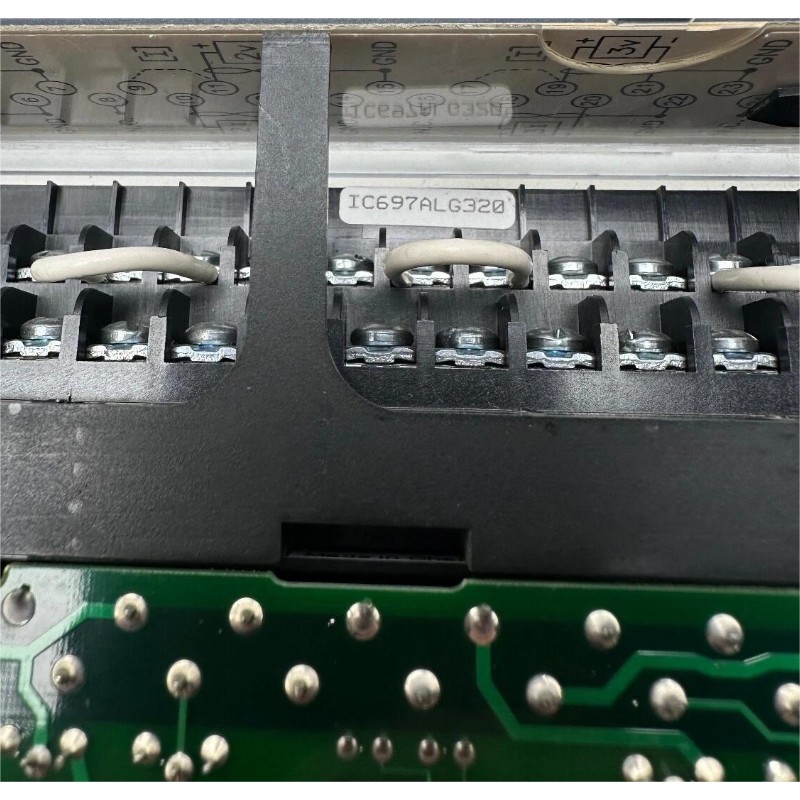

GE IC697ALG320 Analog Output Module

Overview

The GE IC697ALG320 is a high-performance analog output module designed for precise signal control in industrial automation systems. It converts digital control signals into accurate analog outputs, enabling reliable operation of actuators and process equipment. The module is engineered for stable performance and seamless integration within GE control platforms.

General Information

Part Number: IC697ALG320

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: IC697 PLC Series

Type: Analog Output Module

Application: Industrial automation, process control, and signal conversion

Mounting: Rack-mounted within PLC systems

Power Specifications

Supply Voltage: Backplane powered

Power Consumption: ≤ 8 W

Input Power Source: PLC backplane

Protection: Overvoltage and short-circuit protection

Indicators: LED indicators for module status and diagnostics

Communication & Interface

Interface Type: Backplane communication

Signal Type: Analog output signals

Output Function: Converts digital data into analog signals

Diagnostics: Real-time status monitoring and fault detection

Configuration: Software-based configuration via PLC system

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Durability: Designed for industrial environments

Dimensions & Weight

Dimensions (L × W × H): 138 × 67 × 25 mm

Weight: 0.33 kg
