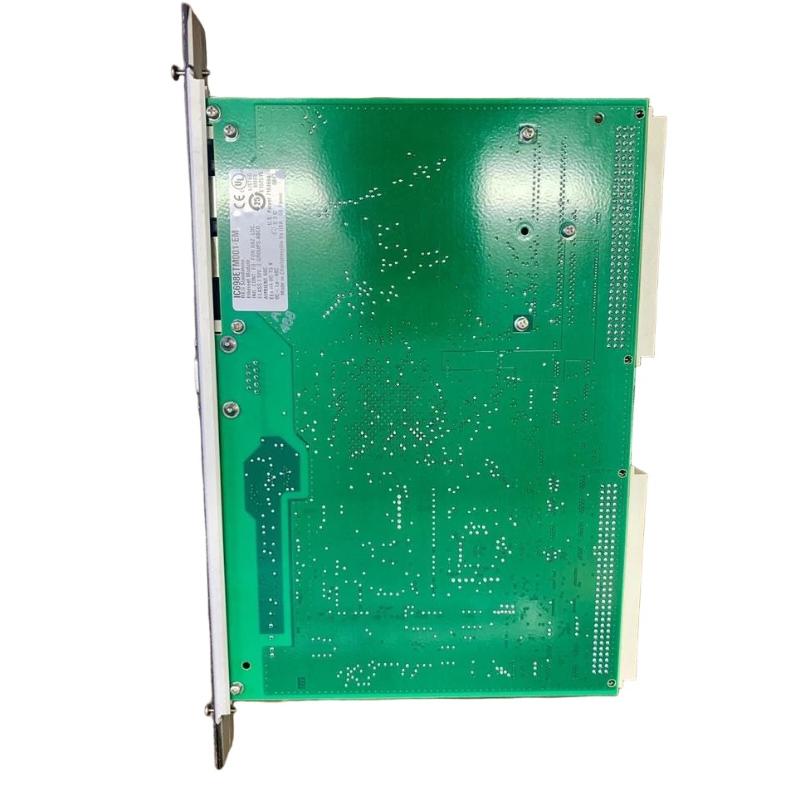

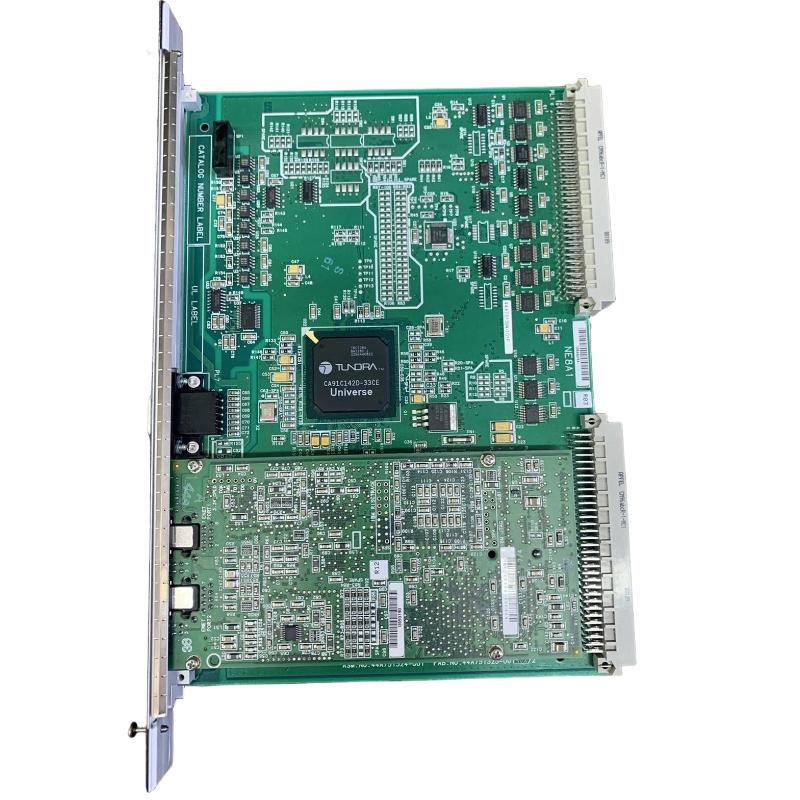

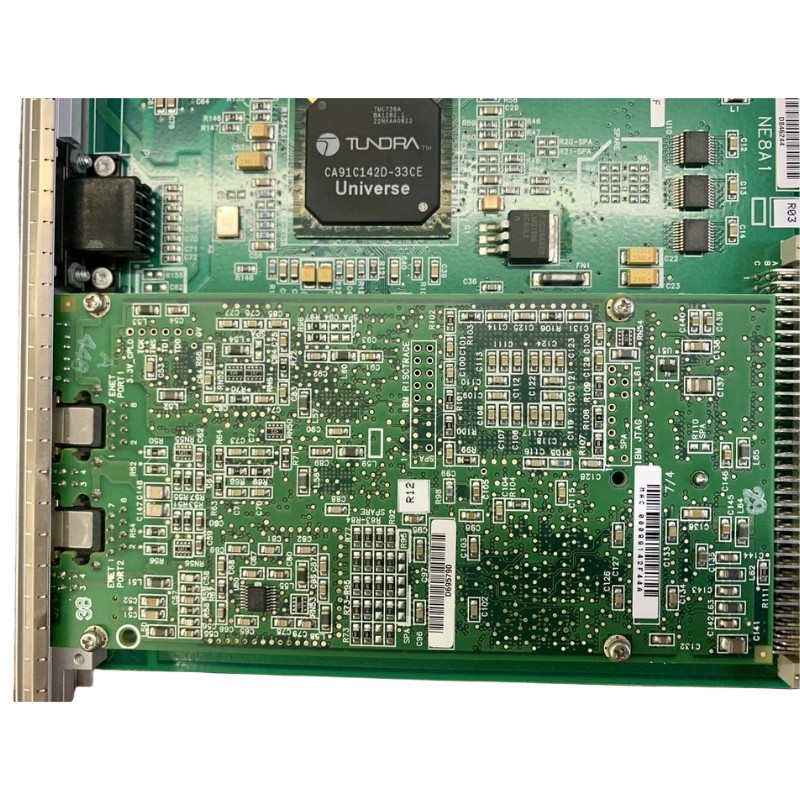

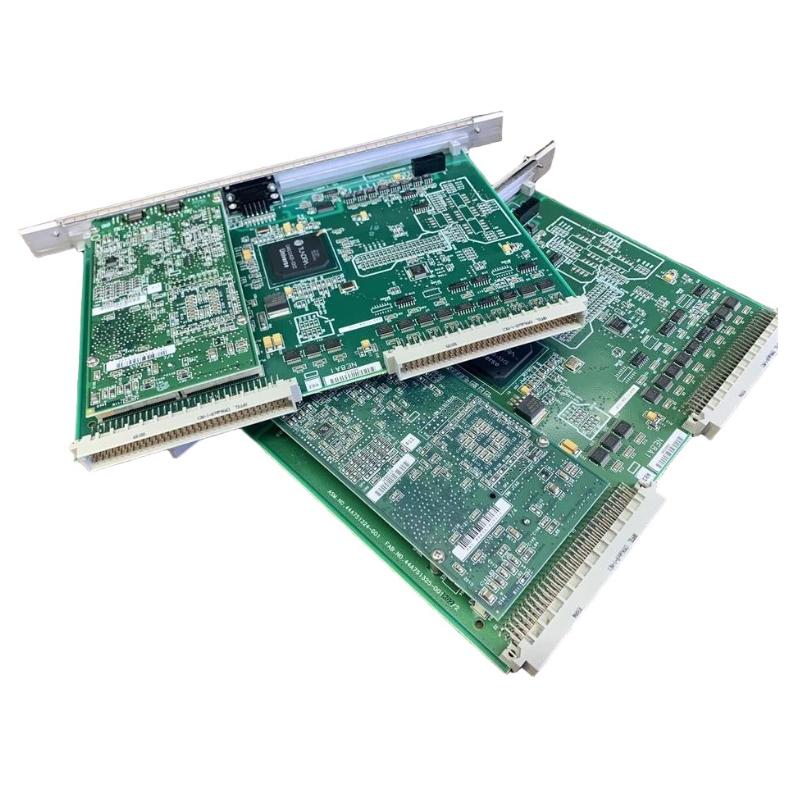

GE IC698ETM001 Ethernet Interface Module

Overview

The GE IC698ETM001 is a high-performance Ethernet interface module designed for industrial automation systems. It enables fast and reliable communication between controllers, networks, and field devices, supporting efficient data exchange and real-time system integration.

General Information

Part Number: IC698ETM001

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / United States

Series: RX7i PACSystem Series

Type: Ethernet Interface Module

Mounting: Rack-mounted within compatible control systems

Function: Provides Ethernet connectivity for controller communication and network integration

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Optimized for efficient operation

Data Rate: Supports high-speed Ethernet communication

Protection: Built-in electrical protection and isolation

Indicators: LED indicators for link status, activity, and diagnostics

Communication & Interface

System Interface: Backplane connection to CPU and I/O modules

Ethernet Ports: Integrated Ethernet interface for network communication

Protocols: Supports industrial Ethernet protocols (model dependent)

Diagnostics: Advanced diagnostics and network status monitoring

Operator Interface: LED indicators for communication and module status

Compatibility: Designed for GE RX7i PACSystems

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for installation in industrial enclosures

Vibration Resistance: Meets industrial standards

Dimensions & Weight

Dimensions (L × W × H): 180 × 100 × 30 mm

Weight: 0.417 kg

High-Speed Connectivity – Power Your Industrial Network with Confidence!
