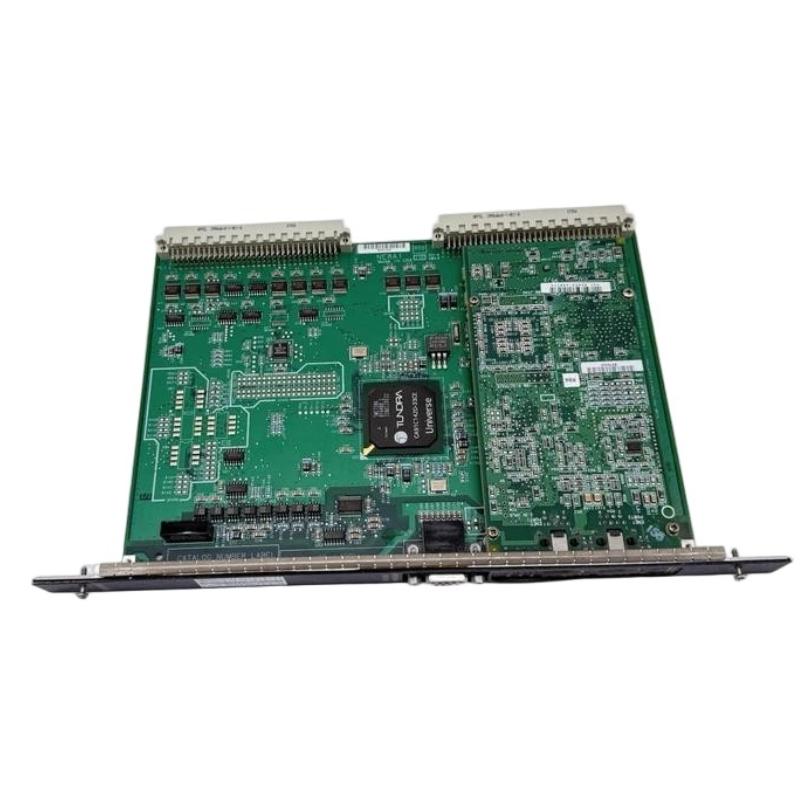

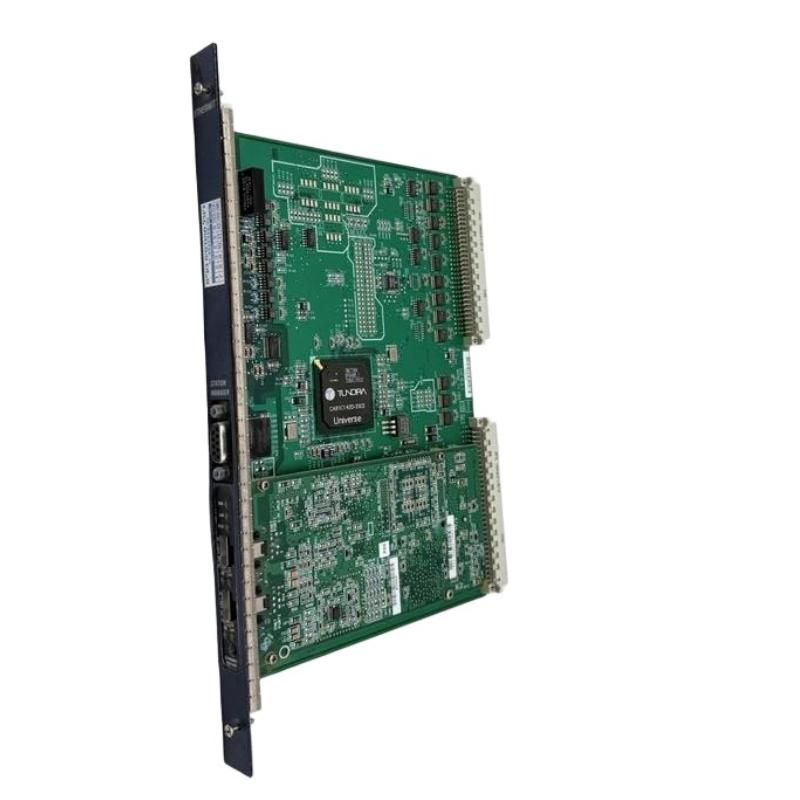

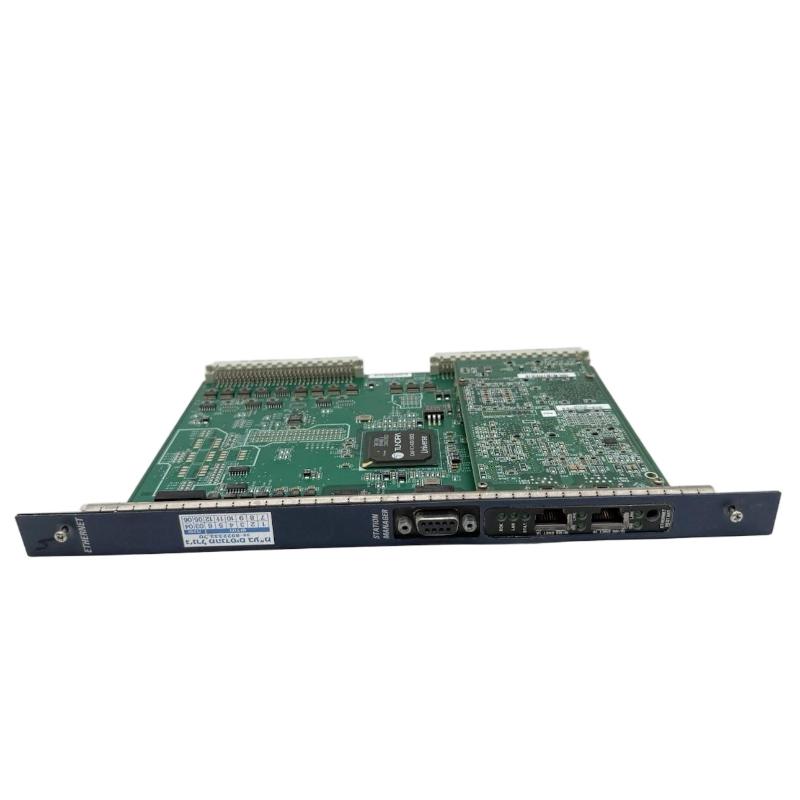

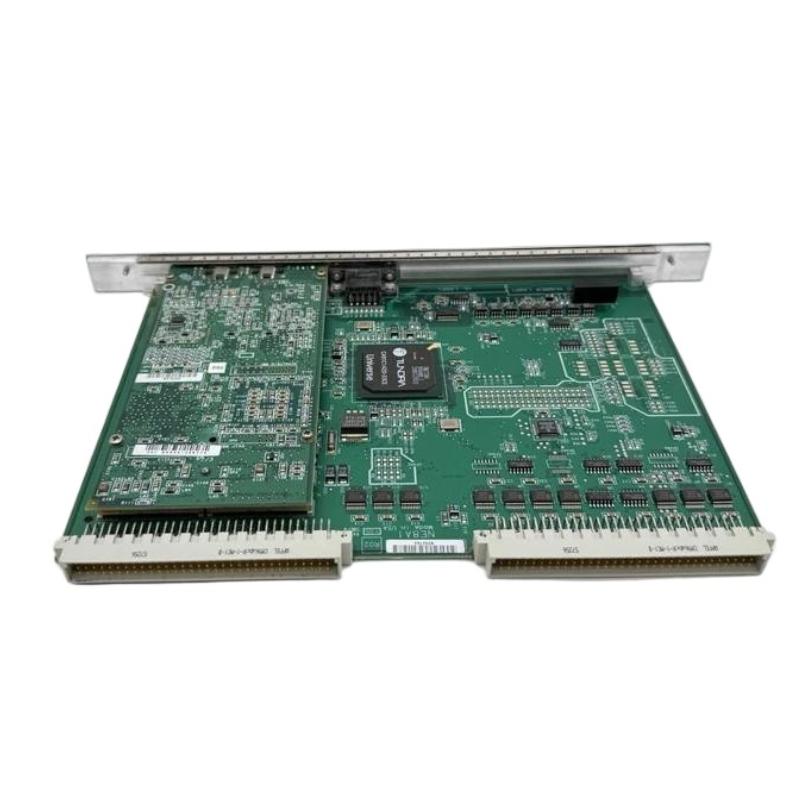

GE IC698ETM001-DG Ethernet Interface Module

Overview

The GE IC698ETM001-DG is a robust Ethernet interface module designed for industrial automation systems. It enables high-speed and reliable network communication between controllers and field devices, ensuring efficient data exchange and seamless system integration.

General Information

Part Number: IC698ETM001-DG

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / United States

Series: RX7i PACSystem Series

Type: Ethernet Interface Module

Mounting: Rack-mounted within compatible control systems

Function: Provides Ethernet connectivity for controller-to-network communication

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Efficient power usage design

Data Rate: Supports high-speed Ethernet communication

Protection: Integrated electrical protection and isolation

Indicators: LED indicators for link, activity, and module status

Communication & Interface

System Interface: Backplane connection with CPU and I/O modules

Ethernet Ports: Integrated Ethernet interface for network connectivity

Protocols: Supports industrial Ethernet communication protocols

Diagnostics: Advanced network diagnostics and status monitoring

Operator Interface: LED indicators for communication status

Compatibility: Designed for GE RX7i PACSystems

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet installation

Vibration Resistance: Meets industrial standards

Dimensions & Weight

Dimensions (L × W × H): 130 × 75 × 140 mm

Weight: 0.417 kg

Reliable Networking – Keep Your System Connected and Running Smoothly!
