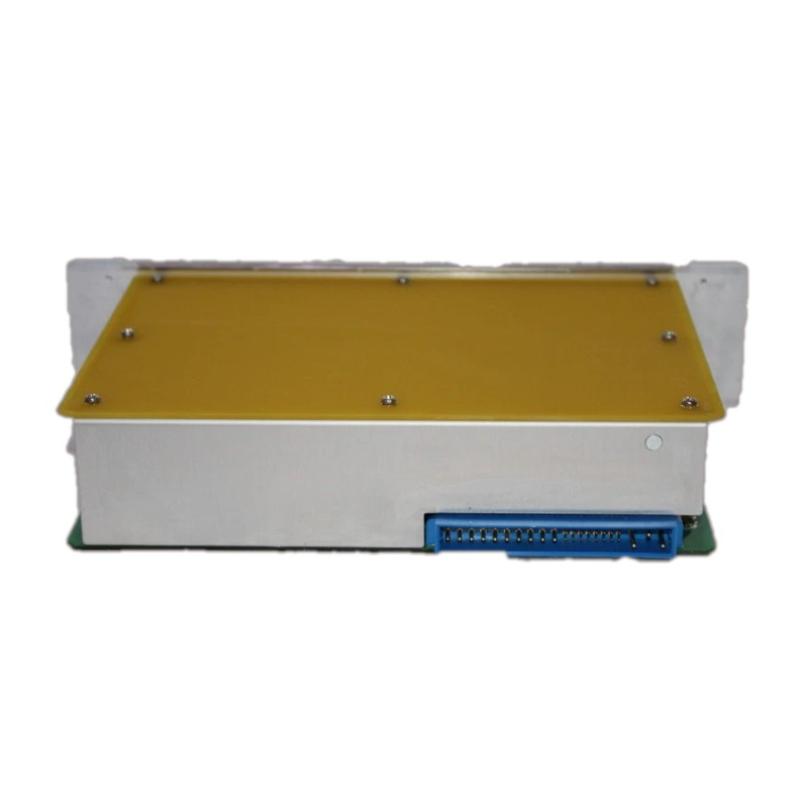

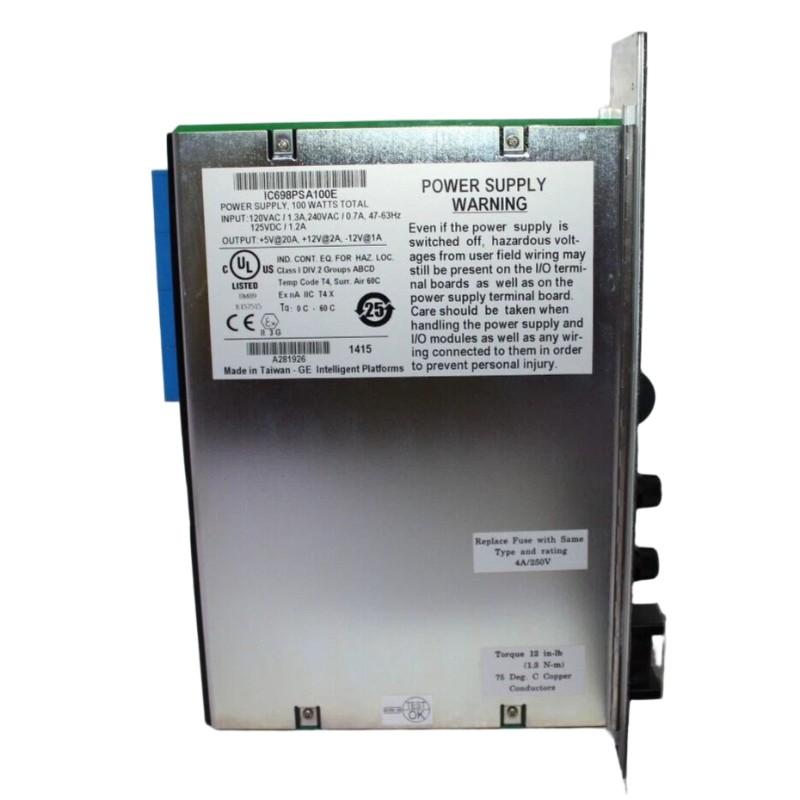

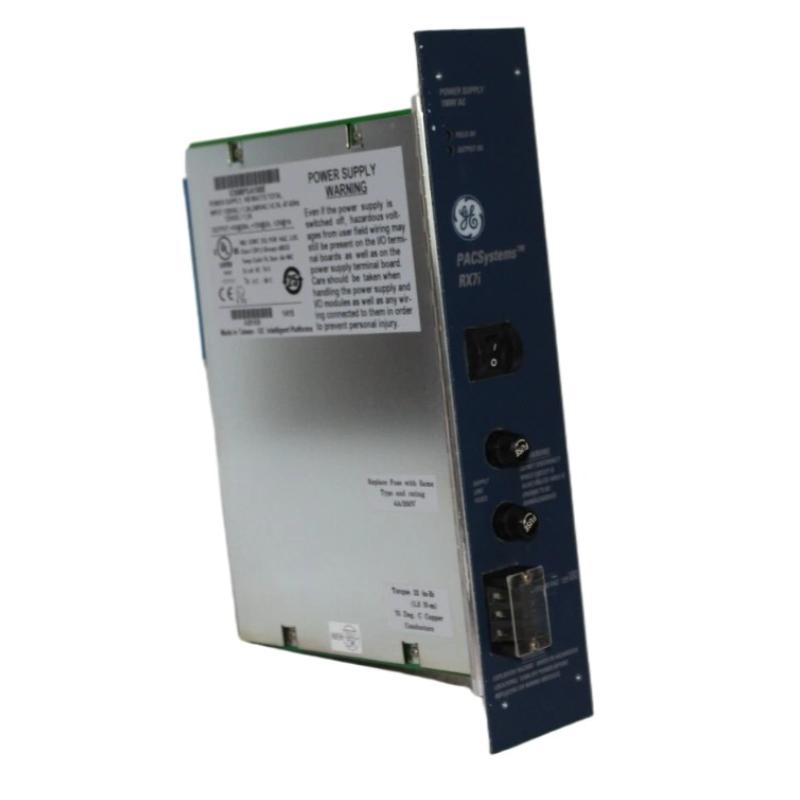

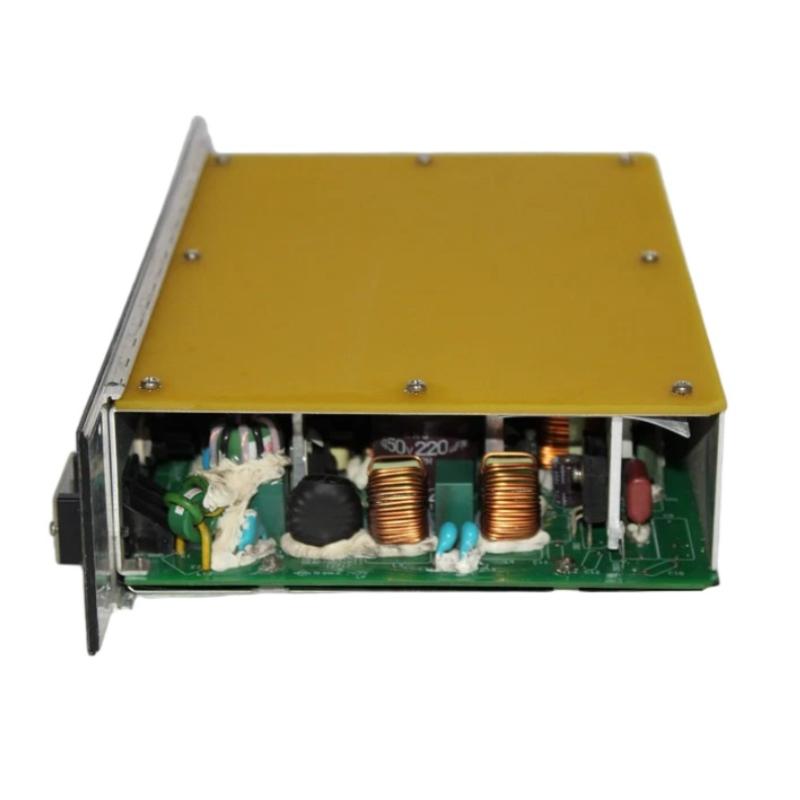

GE IC698PSA100 Power Module

Overview

The GE IC698PSA100 is a robust power module designed for industrial automation systems, providing stable and reliable power to controllers and I/O modules. It ensures continuous system operation with high efficiency and dependable performance in demanding environments.

General Information

Part Number: IC698PSA100

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / United States

Series: RX7i PACSystem Series

Type: Power Module

Mounting: Rack-mounted within compatible control systems

Function: Supplies regulated power to CPU and I/O modules

Power Specifications

Input Voltage: Wide-range AC input suitable for industrial applications

Output Voltage: Regulated DC outputs for system components

Power Capacity: High-capacity design for multiple module support

Efficiency: High efficiency with stable output performance

Protection: Overvoltage, overcurrent, and short-circuit protection

Indicators: LED indicators for power status and fault conditions

Communication & Interface

System Interface: Backplane connection to controller and I/O modules

Monitoring: Power status feedback via system diagnostics

Diagnostics: Fault detection and operational monitoring

Operator Interface: LED indicators for status visibility

Compatibility: Designed for GE RX7i PACSystems

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet installation

Vibration Resistance: Meets industrial standards for vibration and shock

Dimensions & Weight

Dimensions (L × W × H): 76.2 × 127 × 160 mm

Weight: 1.88 kg

Strong Power Support – Keep Your Automation System Running Efficiently!
