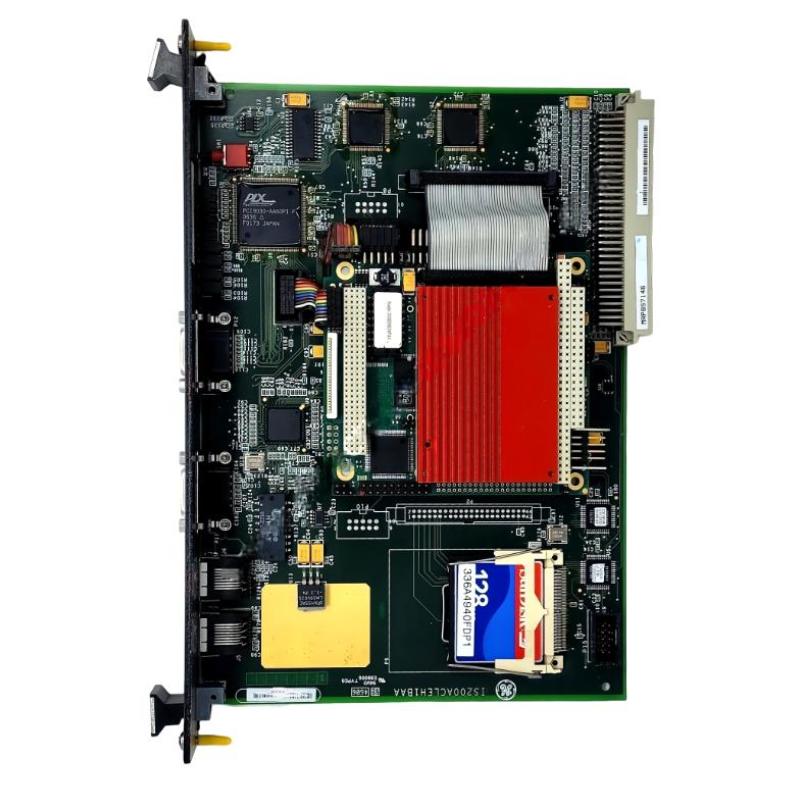

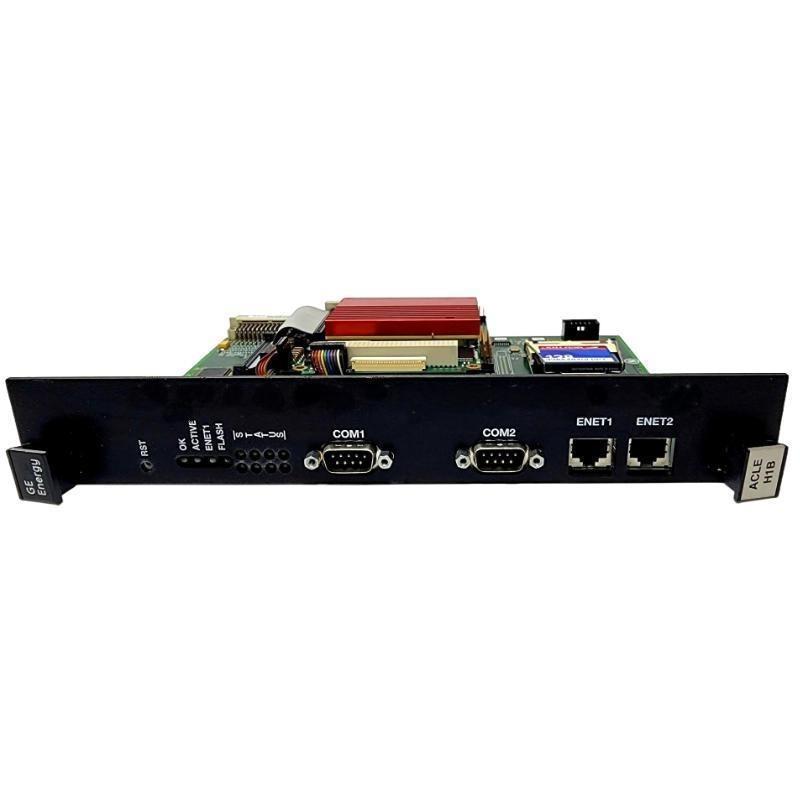

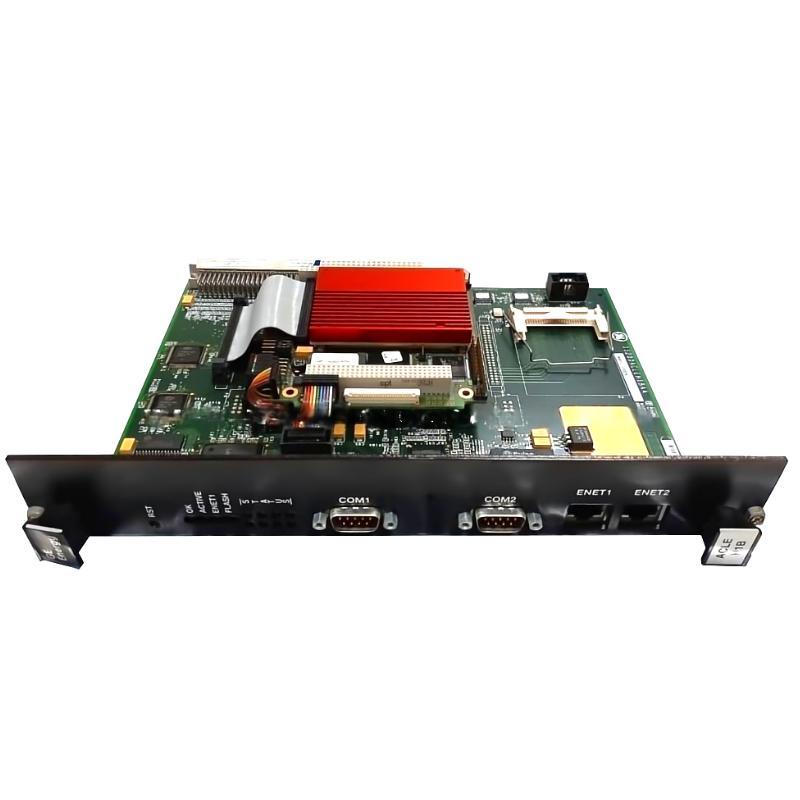

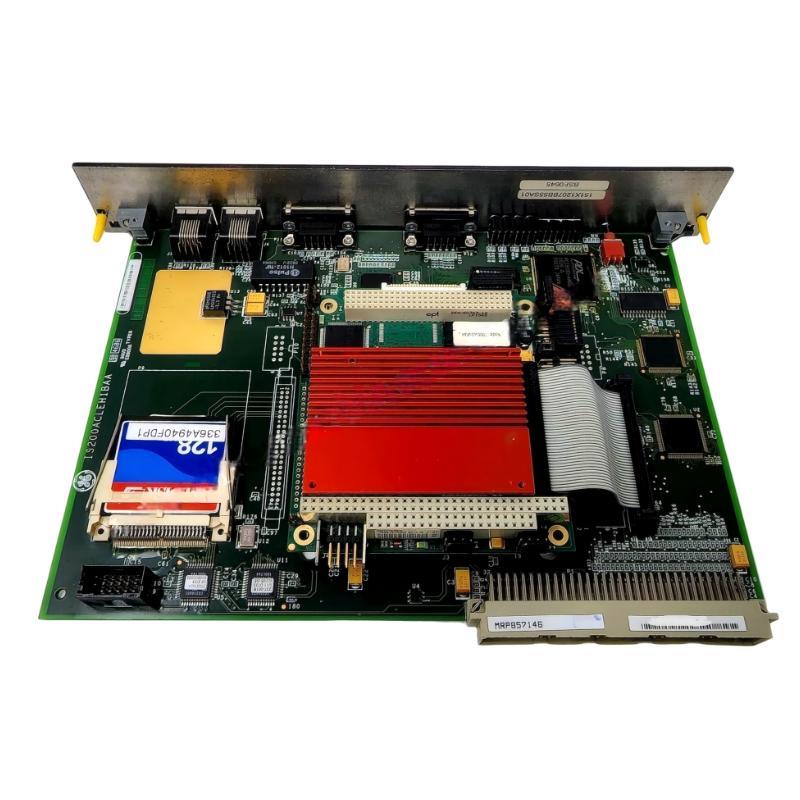

GE IS200ACLEH1B Application Control Layer Module

Overview

The GE IS200ACLEH1B is an advanced Application Control Layer Module designed for high-performance industrial control systems. It manages application-level logic and system coordination, ensuring efficient processing and reliable operation in complex automation environments.

General Information

Part Number: IS200ACLEH1B

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / United States

Series: Mark VI Control System Series

Type: Application Control Layer Module

Mounting: Installed within control rack or system enclosure

Function: Executes application-level control logic and coordinates system operations

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Moderate consumption for advanced processing

Processing Capability: High-speed application processing for real-time control

Protection: Integrated system protection and fault handling mechanisms

Indicators: LED indicators for power, status, and diagnostics

Communication & Interface

System Interface: Backplane connection with control system modules

Data Exchange: Enables communication between control layers and subsystems

Diagnostics: Advanced diagnostics and system monitoring

Operator Interface: LED indicators for operational status

Compatibility: Designed for GE Mark VI control systems

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet installation

Vibration Resistance: Meets industrial standards

Dimensions & Weight

Dimensions (L × W × H): 215 × 154 × 30 mm

Weight: 1.32 kg

High-Level Control Efficiency – Powering Advanced Automation Systems!
