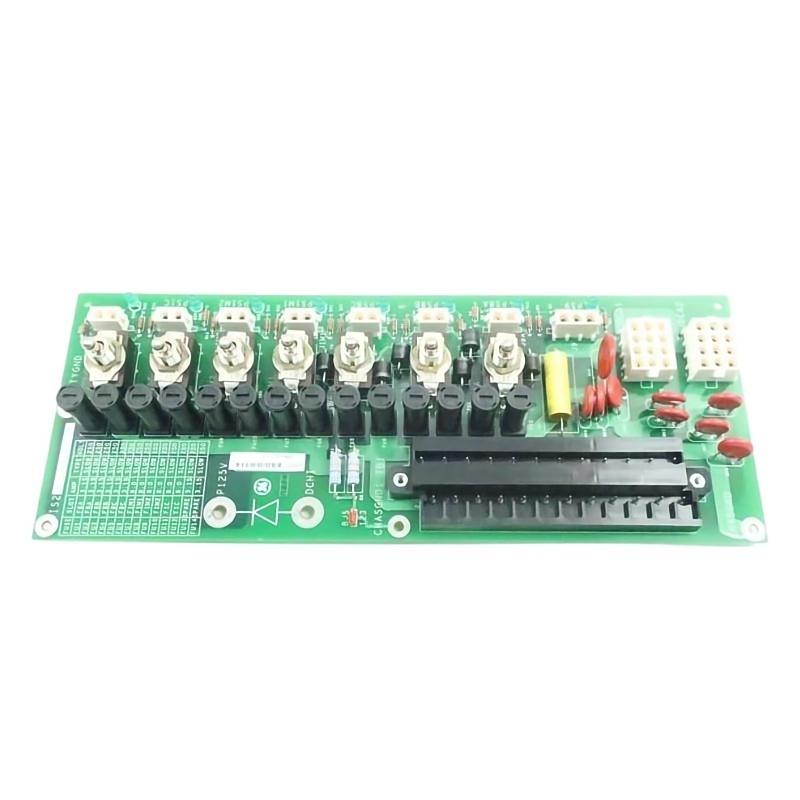

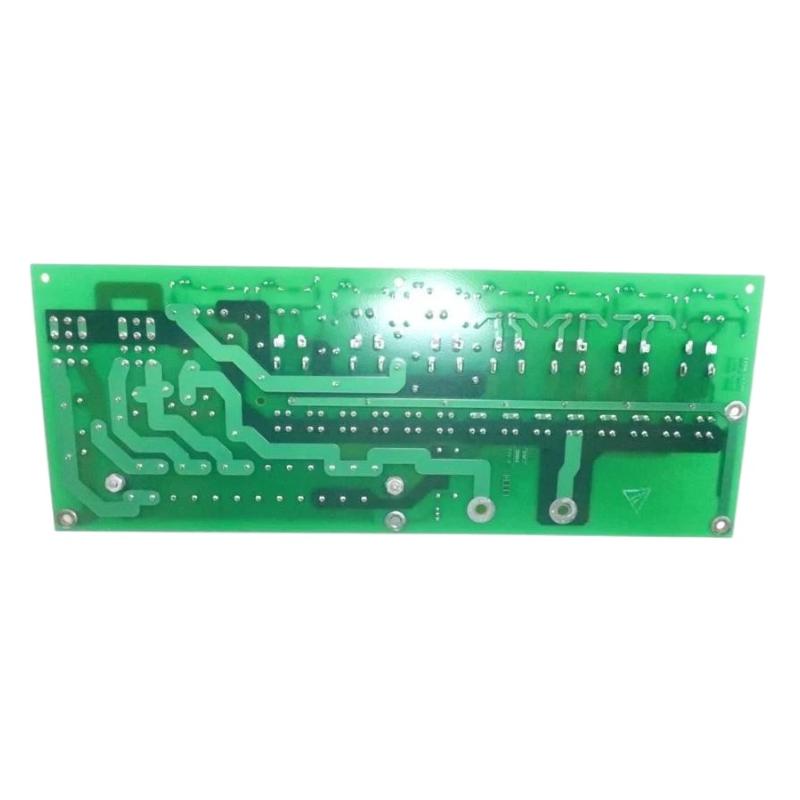

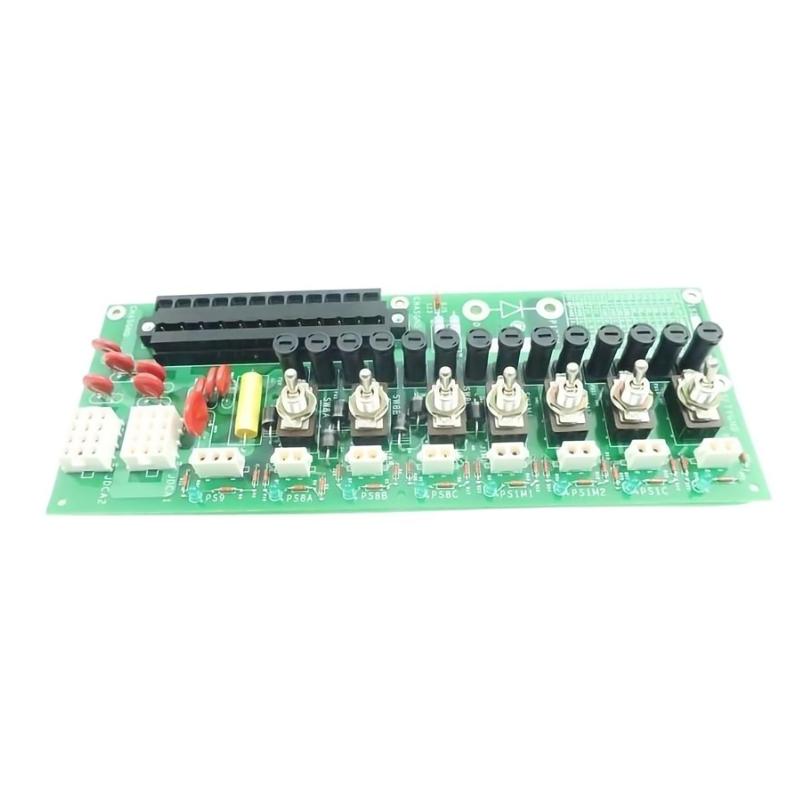

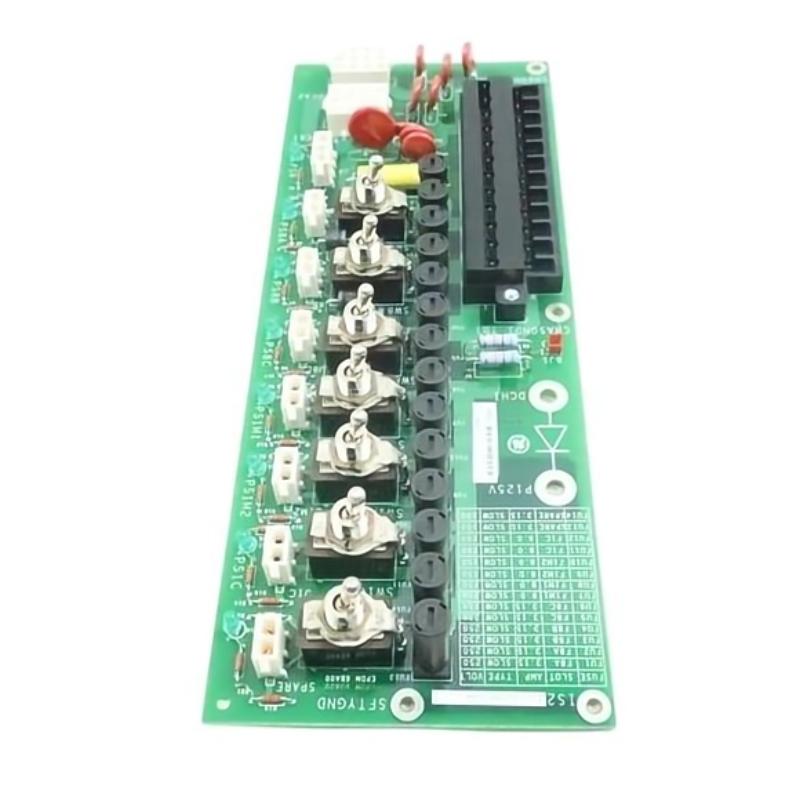

GE IS200EPDMG1A Exciter Power Distribution Module

Overview

The GE IS200EPDMG1A is an exciter power distribution module designed for industrial generator excitation systems. It efficiently distributes DC power to exciter components, ensuring stable operation and reliable performance of the excitation system.

General Information

Part Number: IS200EPDMG1A

Manufacturer: GE

Brand / Country of Origin: GE / USA

Series: IS200 (Excitation Systems)

Type: Exciter Power Distribution Module

Mounting: Panel or rack installation

Technology: Power distribution, system integration, voltage regulation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W

Input: Powered from main exciter supply

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power and distribution status

Communication & Interface

Ports: Standard industrial analog and power interfaces

Module Role: Distributes DC power to exciter components while maintaining system stability

Diagnostics: Power monitoring, fault detection, and status reporting

Operator Interface: LED indicators

Reset Features: Supports soft reset

I/O & Channels

Output Channels: Multiple power distribution outputs

External Load Support: Supports exciter component loads

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 279.4 × 215.9 × 50.8 mm

Weight: 0.8 kg
