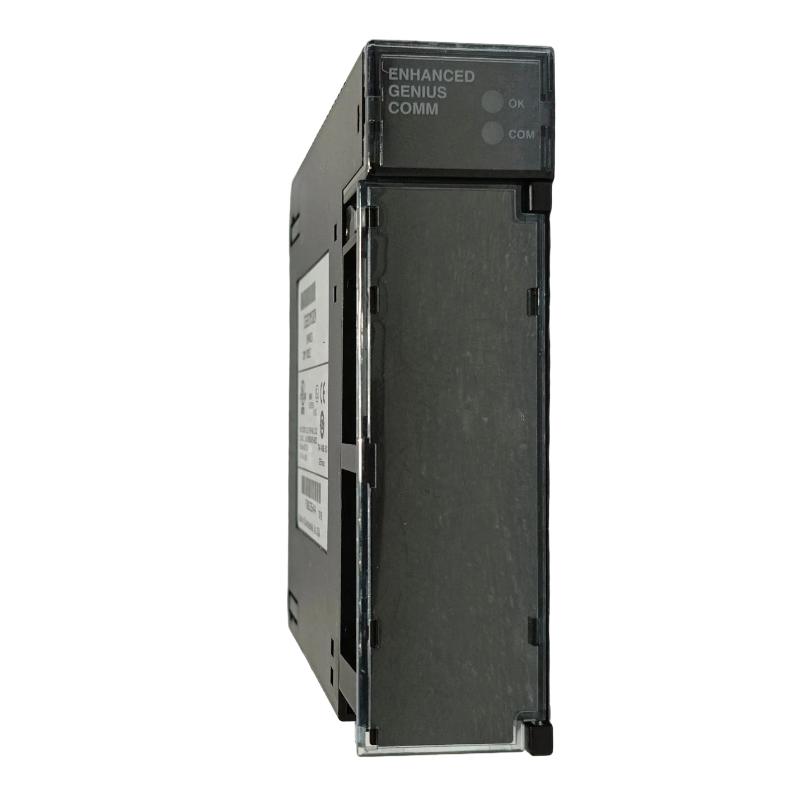

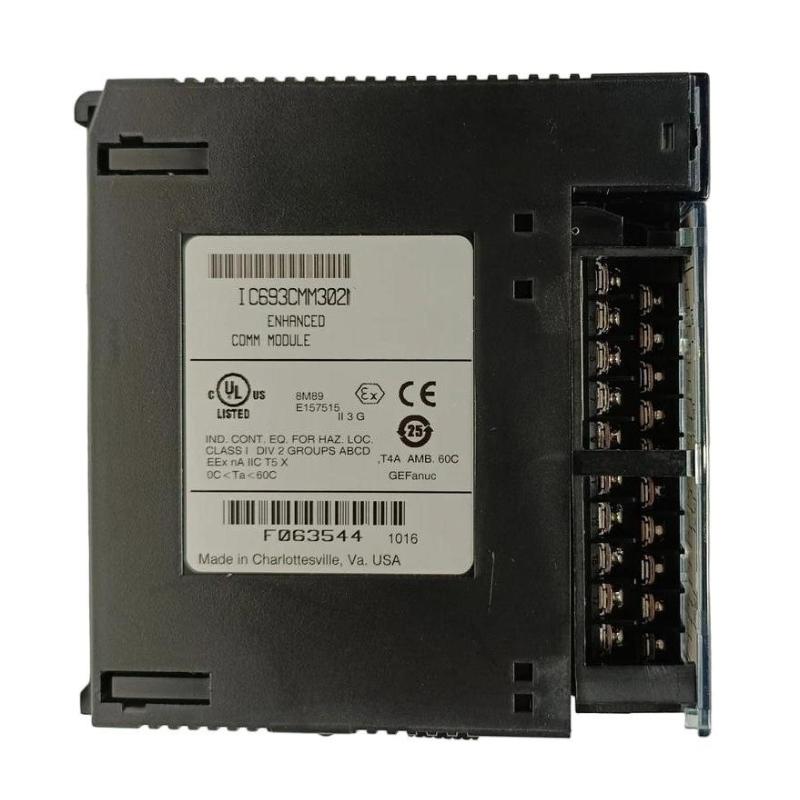

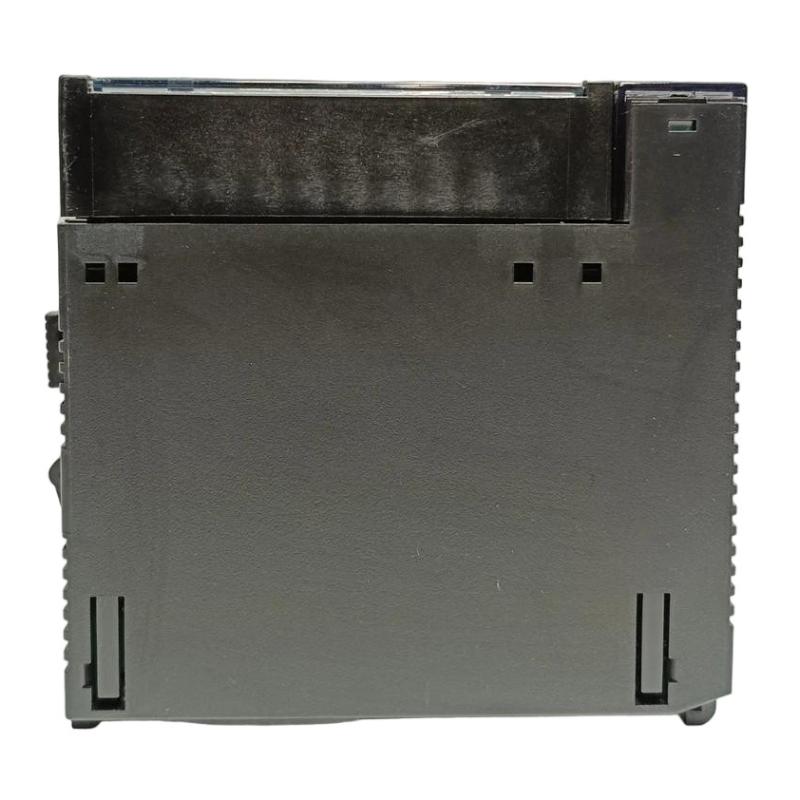

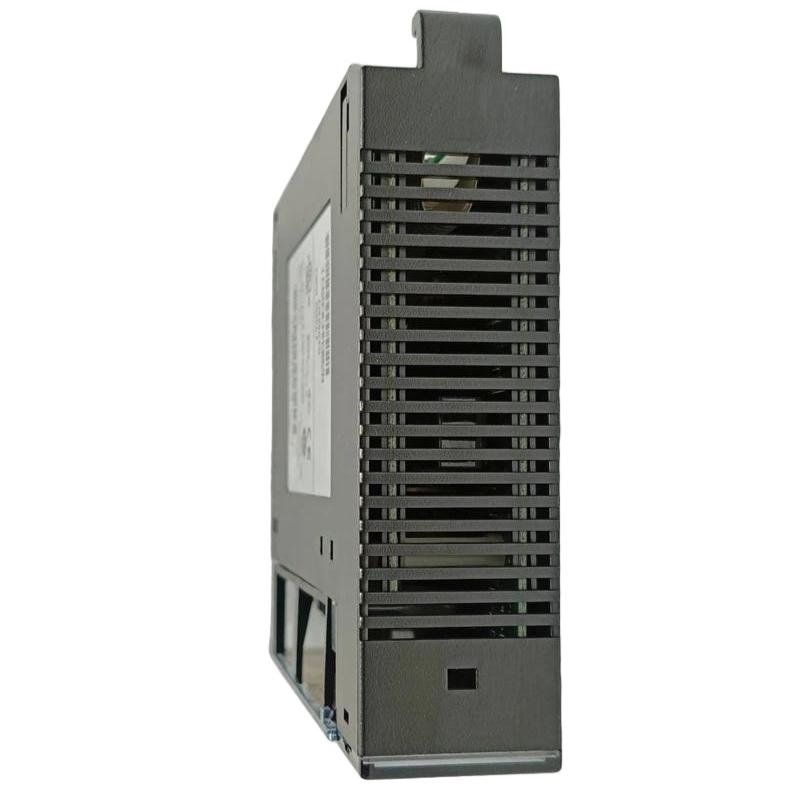

GE IC693CMM302 Communication Module

Overview

The GE IC693CMM302 is a high-performance communication module designed for GE’s Series 90-30 PLC systems. It provides reliable network connectivity, enabling seamless communication between the PLC and industrial devices for enhanced control and monitoring.

General Information

Part Number: IC693CMM302

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Type: Communication Module

Mounting: DIN rail or panel mount within Series 90-30 chassis

Construction: Industrial-grade housing with robust electronic components

Compatibility: Compatible with GE Series 90-30 PLCs and peripheral modules

Power Specifications

Supply Voltage: 5 V DC from PLC backplane

Power Consumption: ≤ 5 W

Input Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, communication link, and fault status

Communication & Interface

Interface Type: Serial communication (RS-232 / RS-485)

Supported Protocols: GE proprietary protocol, Modbus, and standard industrial protocols

Diagnostics: Link supervision, fault detection, and status reporting

Operator Interface: LED indicators and configuration switches

Compatibility Features: Integrates seamlessly with GE Series 90-30 PLCs and networked devices

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial standard vibration and shock resistance

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 100 × 25 × 135 mm

Weight: 0.386 kg

Reliable Networking, Maximum Efficiency!
