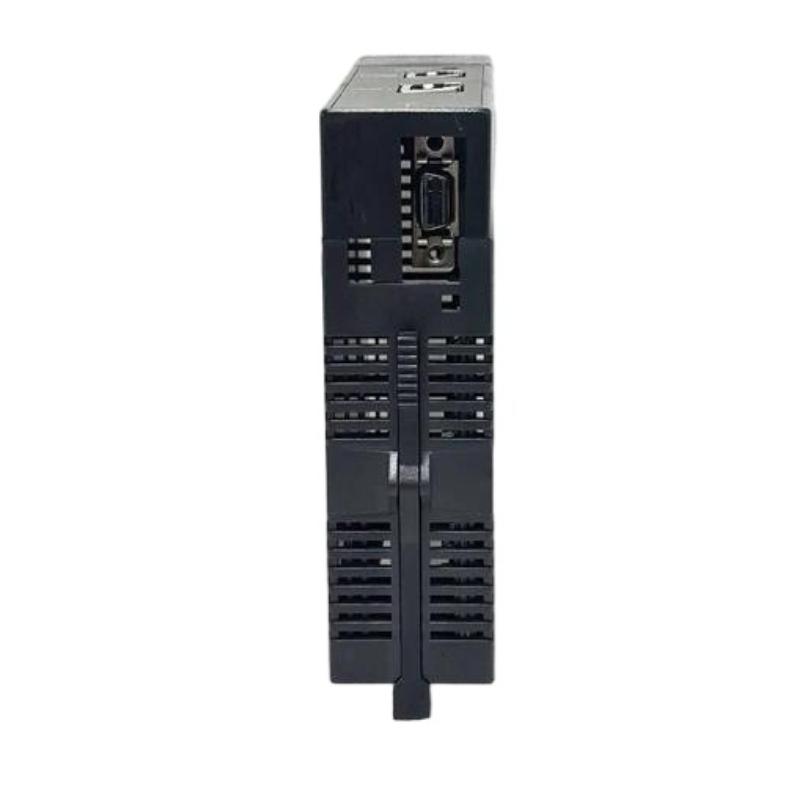

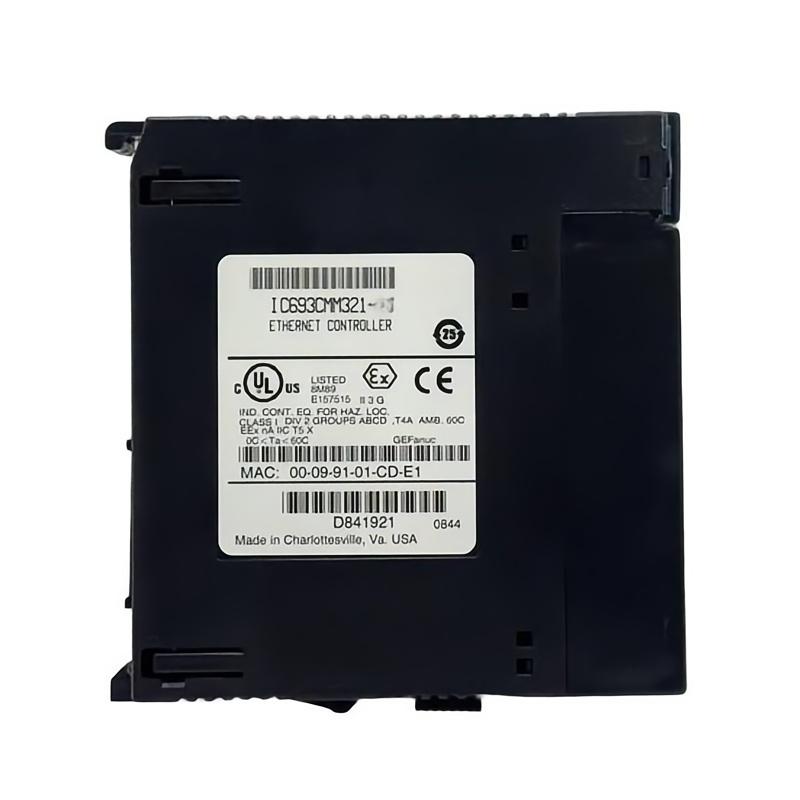

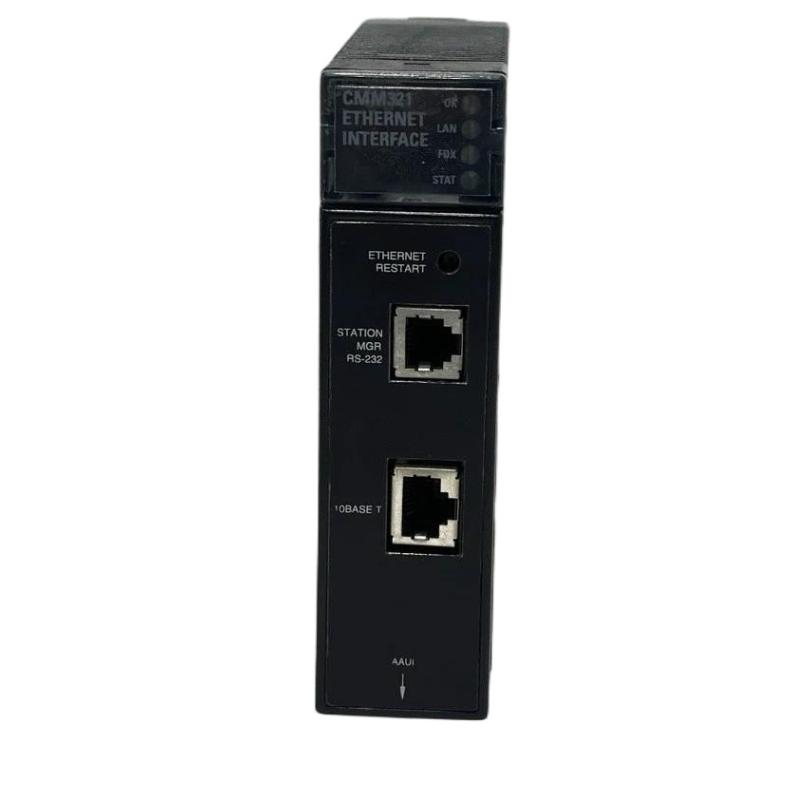

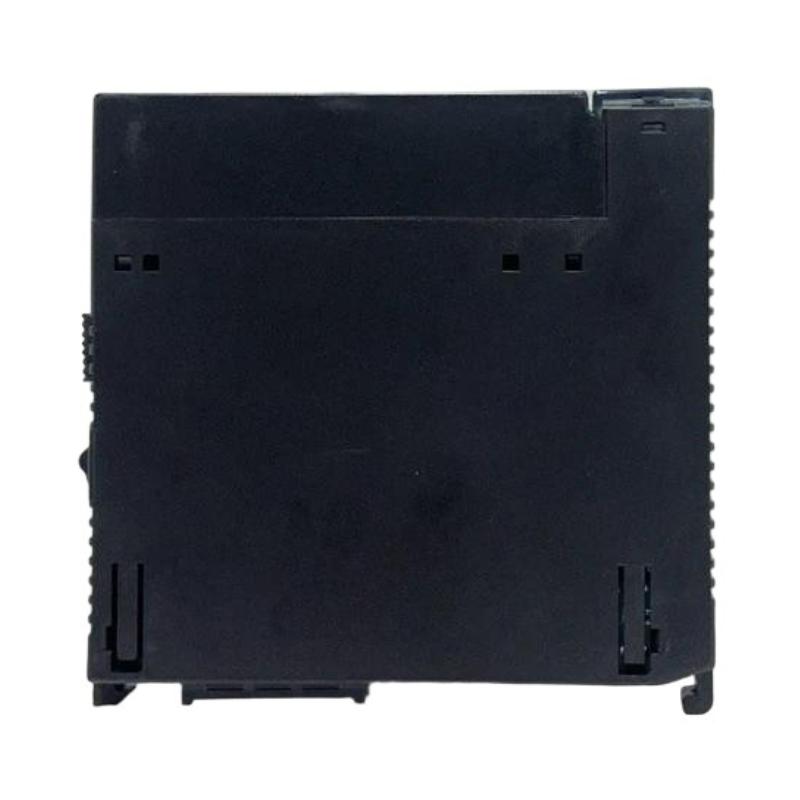

GE IC693CMM321 Ethernet Interface Module

Overview

The GE IC693CMM321 is a high-performance Ethernet interface module for GE’s Series 90-30 PLC systems. It provides reliable network connectivity for industrial automation, enabling fast and secure data exchange between PLCs, HMI devices, and other Ethernet-enabled equipment.

General Information

Part Number: IC693CMM321

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Type: Ethernet Interface Module

Mounting: DIN rail or panel mount within Series 90-30 chassis

Construction: Industrial-grade housing with robust electronic components

Compatibility: Compatible with GE Series 90-30 PLCs and Ethernet-enabled peripheral devices

Power Specifications

Supply Voltage: 5 V DC from PLC backplane

Power Consumption: ≤ 15 W

Input Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, communication link, and fault status

Communication & Interface

Interface Type: 10/100 Mbps Ethernet

Supported Protocols: Modbus TCP/IP, GE proprietary protocols, and standard industrial Ethernet protocols

Diagnostics: Link supervision, fault detection, and status reporting

Operator Interface: LED indicators for power, network activity, and errors

Compatibility Features: Integrates seamlessly with GE Series 90-30 PLCs and Ethernet-enabled devices

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial standard vibration and shock resistance

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 100 × 127 × 60 mm

Weight: 1.4 kg

High-Speed Ethernet, Industrial Reliability!
